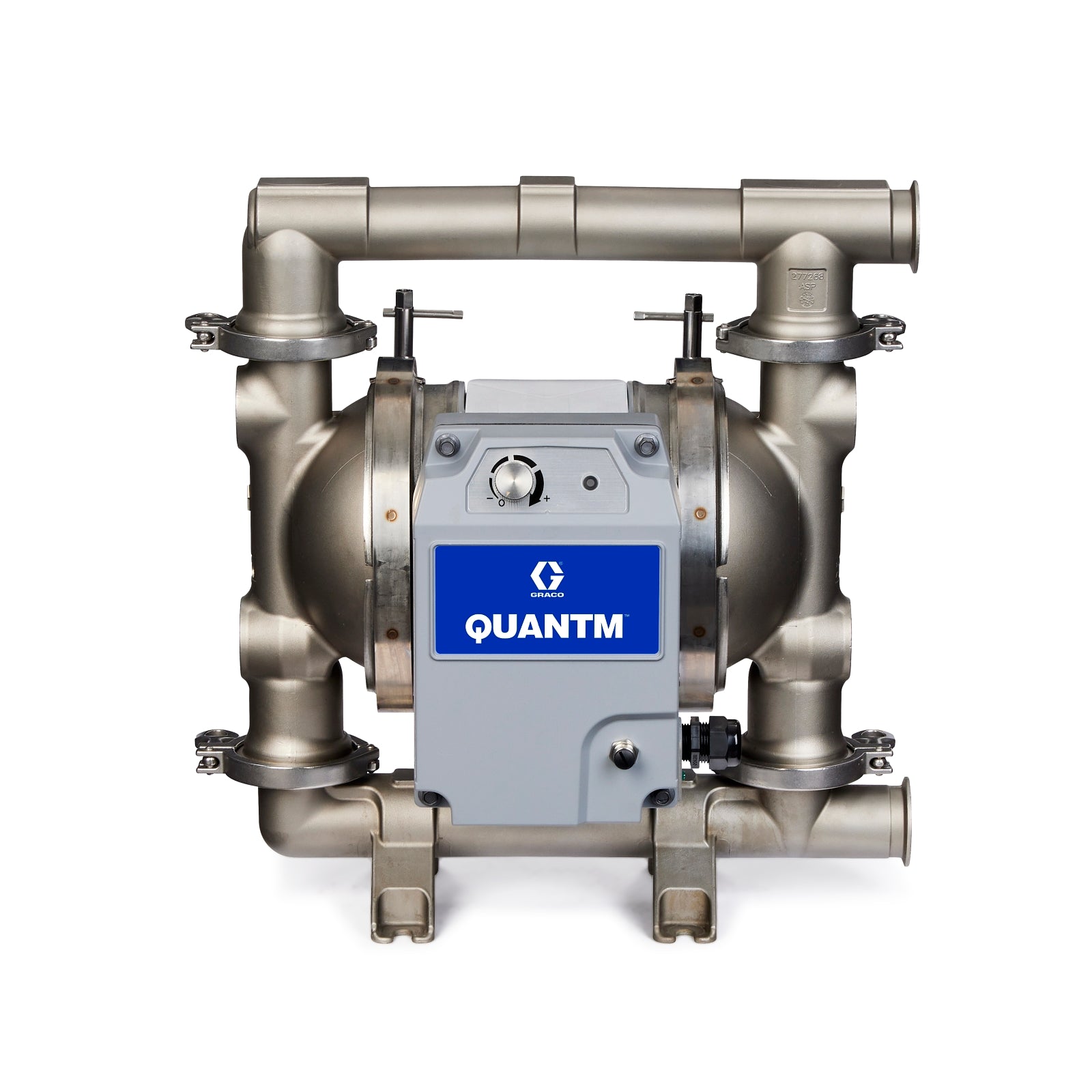

The GRACO HE80-1058 QUANTM h80 is a 1.5" Tri-clamp, Food Grade Stainless Steel (FG SST) electric diaphragm pump designed for efficient, reliable fluid transfer in industrial applications. It features a robust construction with a FEP-coated aluminum center, stainless steel seat, FK ball, and FK diaphragm, making it suitable for hygienic and demanding environments. This pump is intended to replace traditional air-operated diaphragm pumps, offering significant energy savings and improved process control.

Key Features:

• Electric Diaphragm Pump
• QUANTM h80, 1.5" Tri-clamp
• Food Grade Stainless Steel (FG SST) fluid section, FEP-coated aluminum center, stainless steel seat, FK ball, FK diaphragm
• Up to 300 lpm (liters per minute) or approximately 80 GPM (gallons per minute)
• Maximum working pressure: 7 bar
• Designed to replace air-operated diaphragm pumps in industrial fluid transfer applications
• EN 2.1 material certification; ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval (for similar models; confirm for HE80-1058 specifically)
• Up to 80% reduction in energy consumption compared to pneumatic pumps
• Quiet operation (low noise level, ~40 dBA)
• Compact and efficient electric drive with no gearbox
• Smart pump control for accurate flow set points and built-in I/O
• Can run dry, self-prime, and stall under pressure (deadhead capability)
• Easy installation and maintenance
• Reliable and robust for continuous duty cycles

Applications:
Ideal for food, beverage, pharmaceutical, and chemical industries requiring hygienic, reliable, and energy-efficient fluid transfer. Suitable for applications where noise reduction, energy savings, and process control are priorities.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise pump efficiency and longevity.
• Ensure the pump is installed on a stable, level surface
• Verify electrical supply matches pump requirements (380-480 VAC 3Ph for HE80-1058)
• Use appropriate gaskets and seals for hygienic connections
• Follow all local and industry safety regulations
• Regularly inspect and maintain diaphragms, balls, and seals for wear and tear
• Consult the manual for specific torque settings and installation procedures
