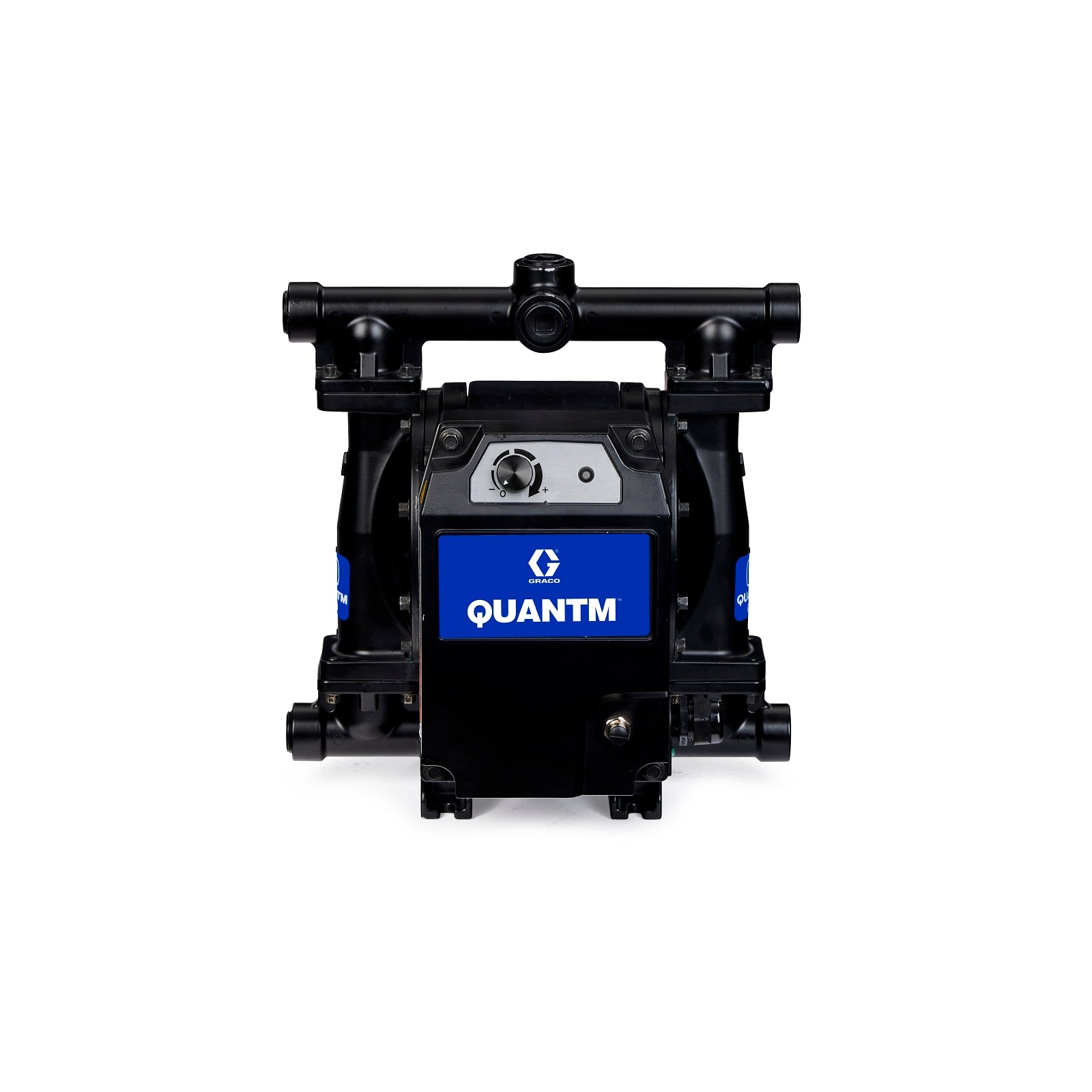

The GRACO QUANTM i30 is an electric double diaphragm pump designed for reliable, efficient fluid transfer. This specific model features an aluminum center section, SA (Santoprene) seat, SD (Santoprene) ball, and PS (Santoprene) diaphragm, making it suitable for handling a wide range of fluids in industrial applications. It is intended for use in chemical processing, paints and coatings, wastewater, and general fluid transfer within GRACO equipment.

Key Features:

• Electric Double Diaphragm Pump
• QUANTM i30, 1"NPT
• Aluminum center section, SA (Santoprene) seat, SD (Santoprene) ball, PS (Santoprene) diaphragm
• Maximum flow rate: 30 GPM (114 L/min)
• Maximum fluid pressure: 100 psi (6.9 bar, 690 kPa)
• Designed for integration with GRACO fluid transfer systems and as a drop-in replacement for pneumatic pumps
• Revolutionary electric motor design for reduced operational costs and increased reliability
• Self-priming, seal-less design for smooth and steady flow
• Stalls under pressure to reduce downtime from clogged lines or closed valves
• Engineered for quiet, efficient, and ultra-dependable operation
• Plug-and-play design for easy installation and minimal infrastructure rework
• High continuous torque at low speeds for improved reliability

Applications:
Chemical processing, paints and coatings, wastewater treatment, general fluid transfer, sump evacuation, and handling of high/low pH materials

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems, reducing the risk of downtime and maintenance issues.
• Ensure proper alignment and secure mounting of the pump
• Verify electrical supply matches pump specifications (380-480 VAC 3Ph)
• Use appropriate piping and fittings for 1"NPT connections
• Follow manufacturer guidelines for priming and initial startup
• Regularly inspect and maintain seals, diaphragms, and fluid path components
