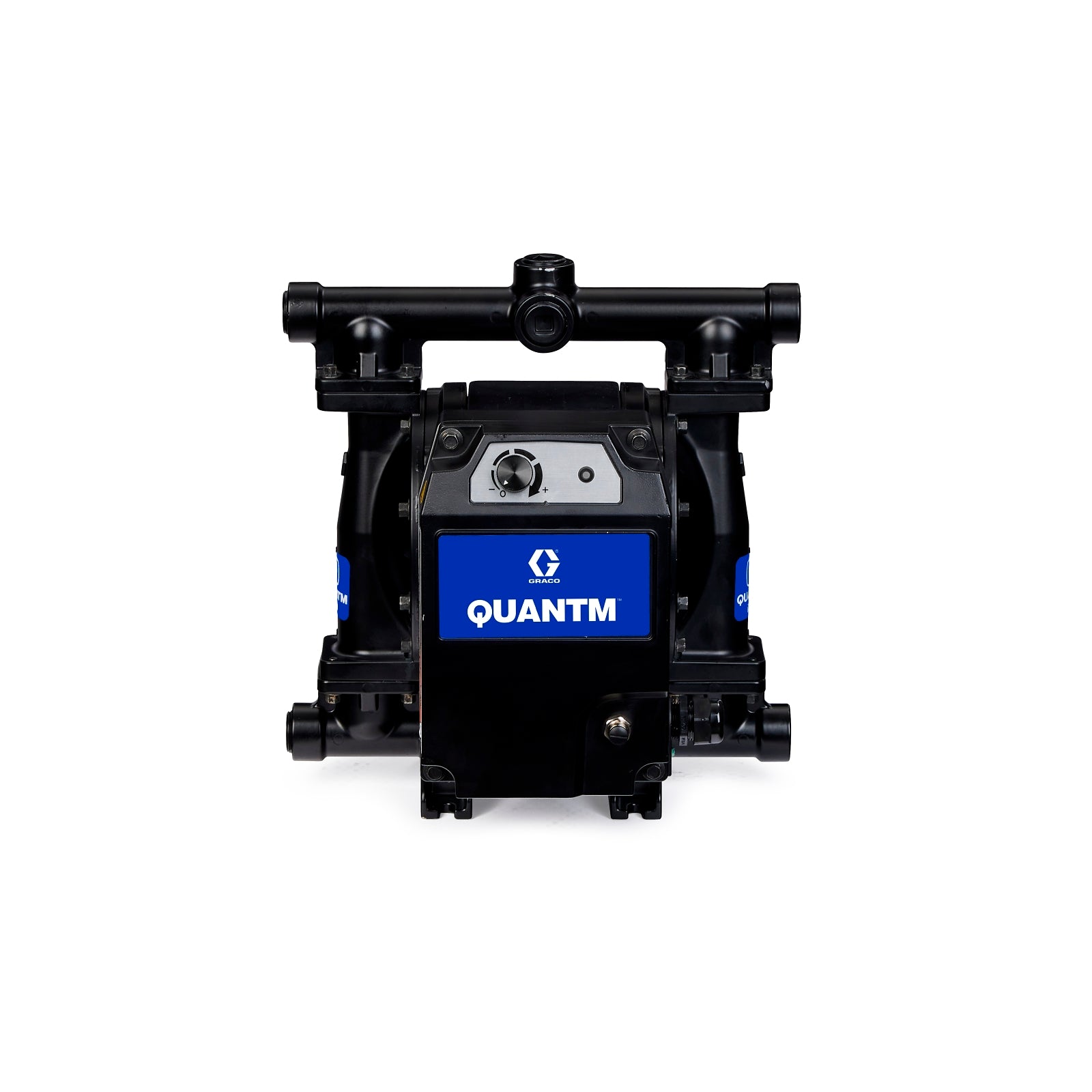

The GRACO QUANTM i30 is an electric double diaphragm pump designed for reliable, efficient fluid transfer in industrial environments. The model specified features an aluminum manifold body, SA (Geolast) seat, PT (Geolast) ball, and PO (Geolast) diaphragm, making it suitable for handling a wide range of fluids including chemicals, paints, and wastewater. It is engineered for use as a drop-in replacement for less efficient pneumatic pumps and is ideal for applications requiring high reliability and energy savings.

Key Features:

• Electric Double Diaphragm Pump
• QUANTM i30, 1"BSPT
• Aluminum manifold body, Geolast (SA) seat, Geolast (PT) ball, Geolast (PO) diaphragm
• 115 L/min (approx. 30 GPM)
• 7 bar (100 psi)
• Designed as a drop-in replacement for pneumatic diaphragm pumps; compatible with most industrial fluid transfer applications
• Energy savings up to 80% compared to pneumatic pumps
• Quieter operation and reduced noise
• Simplified maintenance and easy installation
• Seal-less, self-priming design
• Stalls under pressure to prevent damage from clogged lines or closed valves
• Highly reliable and durable for continuous operation

Applications:
Chemical processing, paints and coatings, wastewater, general fluid transfer in industrial settings

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and safety. Non-genuine parts may compromise pump efficiency and longevity.
• Ensure proper alignment and secure mounting of the pump
• Connect to appropriate electrical supply (380-480 VAC 3Ph)
• Use compatible piping and fittings (1" BSPT)
• Follow all local electrical and safety regulations
• Regularly inspect and maintain diaphragms and seals for optimal performance
• Perform routine checks on diaphragms, balls, and seats
• Monitor for leaks and unusual noise
• Keep the pump and surrounding area clean
• Consult the manual for scheduled maintenance intervals
