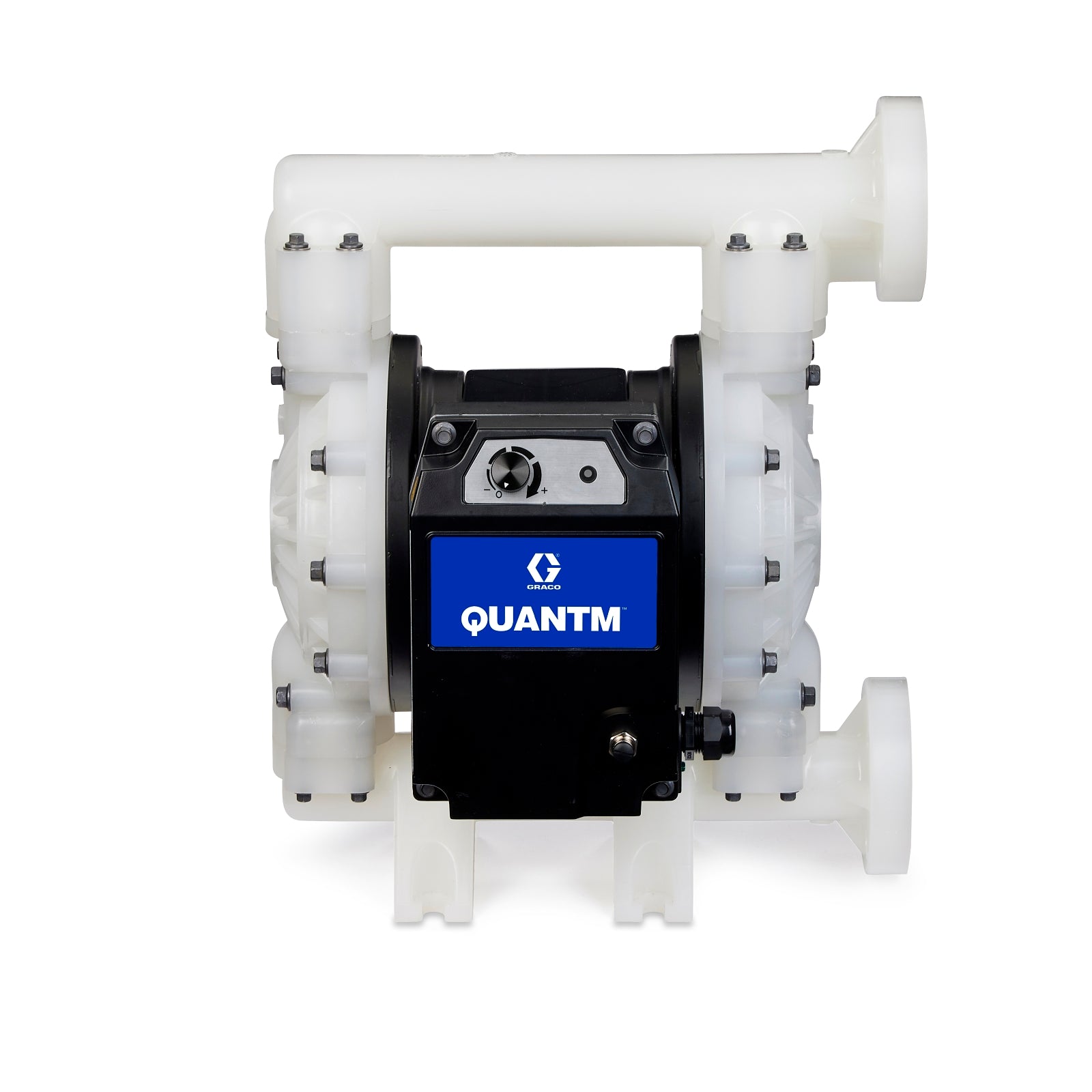

The GRACO QUANTM i80 is a 1.5" (38.1 mm) electric operated double diaphragm pump designed for efficient fluid transfer in industrial applications. This specific model features a polypropylene construction for the main body, with an aluminum center, and SP (Santoprene) seat, ball, and diaphragm for enhanced chemical resistance. It is intended for reliable, cost-effective pumping of a wide range of chemicals and fluids in demanding environments.

Key Features:

• Electric Operated Double Diaphragm (EODD) Pump
• QUANTM i80, 1.5" Flange
• Polypropylene body, aluminum center, SP (Santoprene) seat, ball, and diaphragm
• 300 L/min (80 gallons per minute)
• 7 bar (maximum fluid pressure)
• Designed for use with a wide range of chemicals and fluids; suitable for industrial, chemical, and mining applications
• Lightweight and compact design
• Reduces energy use and manufacturing costs by up to 50%
• Plug-and-play design fits 200-240V, 380V/480V outlets
• XT electric motor and drive deliver up to 8x more continuous torque at low speeds than conventional motors
• Efficient workhorse for production lines
• Easy to maintain and reliable operation

Applications:
Ideal for pumping and transferring a wide range of chemicals and fluids in industrial, chemical, and mining environments. Suitable for general-purpose fluid transfer where chemical resistance and reliability are required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment. Non-genuine parts may compromise safety and efficiency.
• Ensure the pump is installed on a stable, level surface
• Verify electrical compatibility with available power supply (200-240V, 380V/480V)
• Use appropriate piping and fittings for the intended fluid and pressure
• Follow all local electrical and safety regulations
• Regularly inspect and maintain diaphragms, seats, and balls for wear and chemical compatibility
• Perform routine maintenance checks as recommended by GRACO
• Keep spare parts such as diaphragms and balls on hand for quick replacement
• Monitor pump performance and address any leaks or unusual noises promptly
