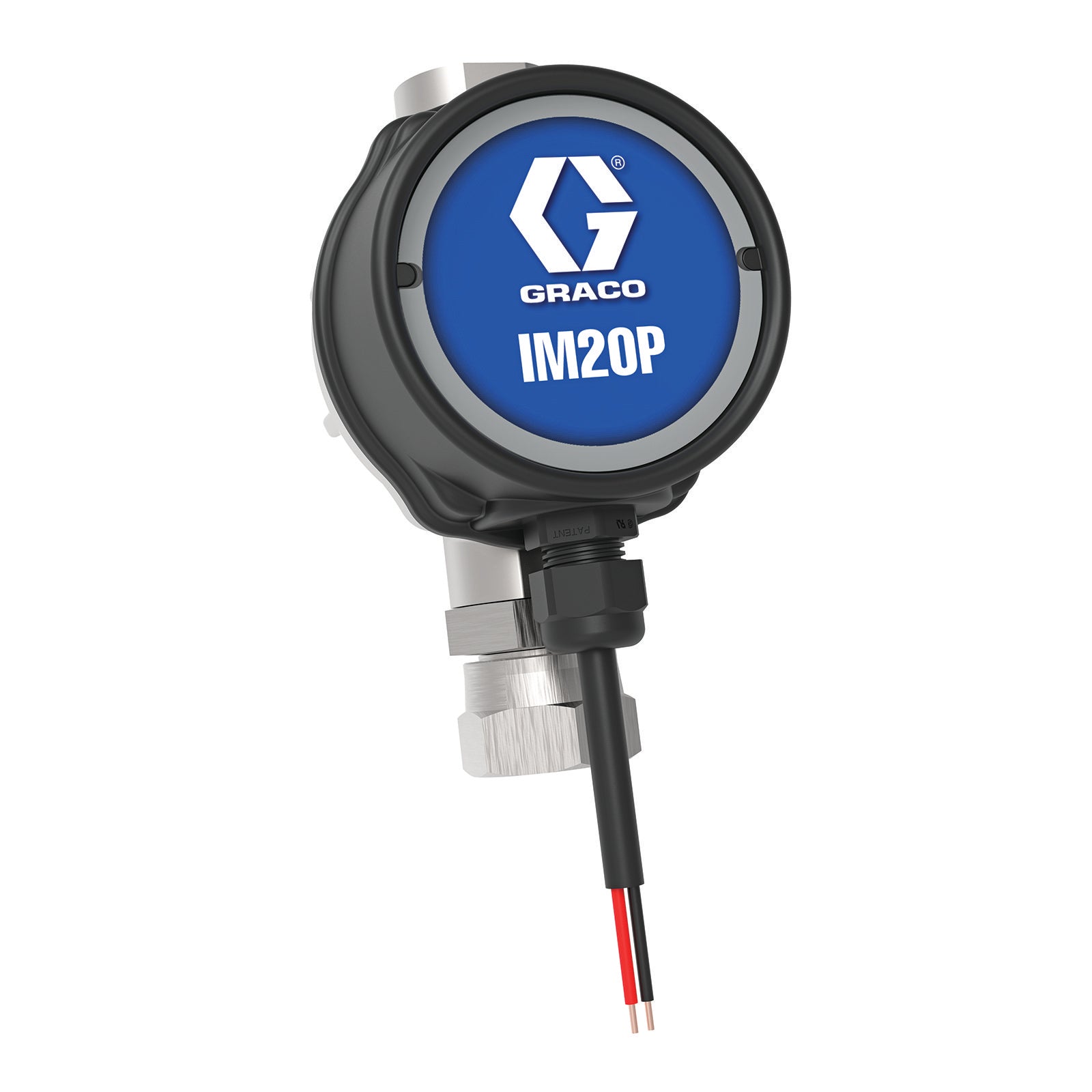

The IM20P® is an electronic pulser output in-line meter designed for accurate fluid measurement and monitoring. It features a rugged aluminum body and is intended for use in demanding industrial environments, particularly for high-flow fluid dispensing applications within GRACO equipment.

Key Features:

• Electronic pulser output in-line meter
• IM20P, 3/4 in (19mm) ports, NPT
• Rugged aluminum body, wetted materials include aluminum, stainless steel, carbon steel, acetal, nitrile rubber, Geolast™
• Up to 20 gpm (75.7 lpm)
• Maximum working pressure: 1500 psi (10 MPa, 102 bar)
• Compatible with fluids and solvents suitable for equipment wetted parts (see technical specifications for details)
• IP69K ingress protection as per DIN 40050-9
• Sealed electronics for indoor/outdoor use
• High flow rates for faster dispense
• Rugged and durable construction
• Easy to maintain and reliable in demanding environments

Applications:
Used for high-flow fluid dispensing and monitoring in industrial, mining, agricultural, and vehicle service environments. Suitable for applications requiring accurate measurement and robust performance.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the equipment.
• Ensure proper alignment and secure connection of 3/4 in NPT ports
• Use compatible fluids and solvents as specified in the technical documentation
• Follow all safety and maintenance guidelines provided by GRACO
• Regularly inspect for leaks and wear, especially in high-pressure or high-flow applications
