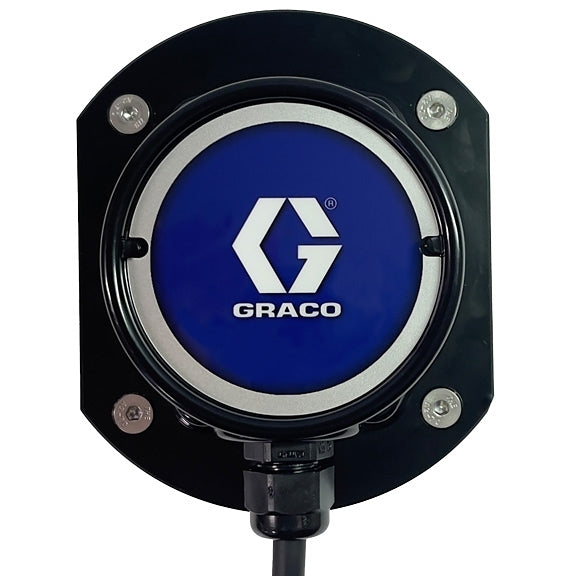

The GRACO 2004290 IM35 In Line Meter with Pulse Output is a heavy-duty, in-line flow meter designed for accurate measurement and management of fluids such as oil, diesel, antifreeze, ATF, and gear oil. It is constructed for use in demanding environments like jobsites and service trucks, integrating with Pulse Pro or Pulse Asset systems for total fluid management.

Key Features:

• In-line flow meter
• IM35
• Up to 35 GPM (Gallons Per Minute)
• Maximum working pressure: 1500 psi
• Antifreeze, ATF, Diesel Fuel, Gear Oil, Oil
• Pulse output for integration with Pulse Pro or Pulse Asset
• Designed for high flow rates and outdoor use
• Sealed electronics for protection against harsh environments
• Reliable for continuous duty cycles

Applications:
Used for precise in-line dispensing and tracking of fluids in vehicle service, industrial, and jobsite applications. Suitable for service trucks and maintenance operations requiring accurate fluid management.

Installation Notes:

• Ensures compatibility, reliability, and optimal performance within GRACO systems.
• Ensure proper thread type (NPT) and size (1 inch) for inlet/outlet connections
• Follow manufacturer guidelines for pressure and flow rate limits
• Regularly inspect for leaks and wear
• Use only compatible fluids as specified
• Install in a location protected from extreme impacts and environmental hazards
• Perform routine maintenance checks as recommended by GRACO
• Consult the equipment manual for detailed installation and maintenance procedures
