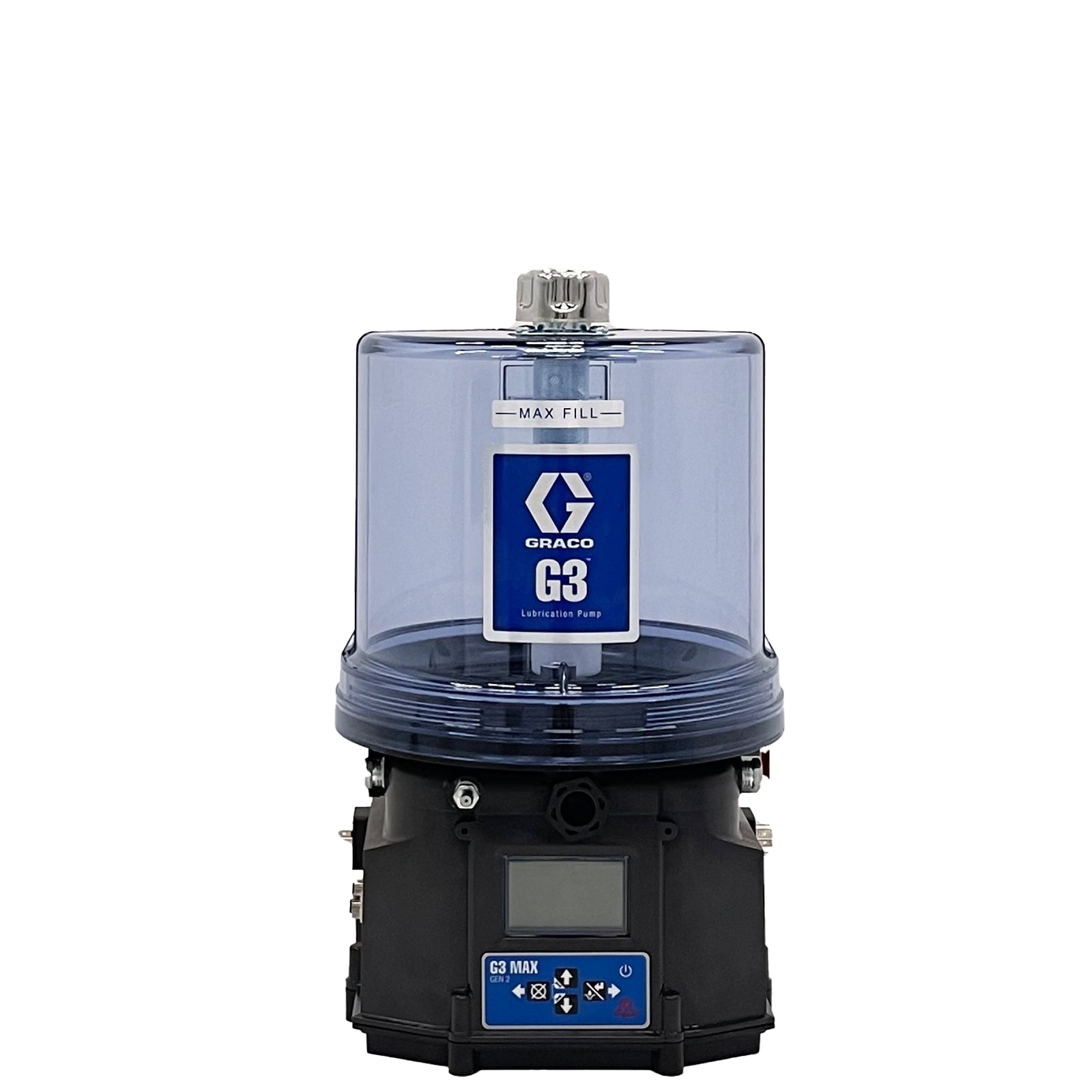

The GRACO 96G616 is an electric grease lubrication pump designed for reliable, automated lubrication of industrial equipment. It is constructed for use with grease and is intended for integration into series progressive or injector-based lubrication systems, commonly used in on-road and off-road vehicle maintenance and industrial machinery.

Key Features:

• Electric grease lubrication pump
• G3® Max, 8L reservoir
• Robust housing for industrial environments
• Up to 5100 psi (352 bar) (based on G3 Max series standard)
• Grease (up to NLGI #2), Series Progressive and Single Line Parallel systems
• CE, ETL, IP69K (based on G3 Max series standard)
• Built-in controller with selectable pump on/off timer
• Low level indicator with warning and shut-down alarm
• Remote manual run capability
• Machine count feature
• Vent valve
• DIN alarm output
• M12 connection for remote monitoring
• Easy-to-read LED display
• Password-protected access to controls
• Monitoring of up to three independent zones
• Pre-lube capability
• Easy-to-use navigation keys

Applications:
Automated lubrication for on-road and off-road vehicles, industrial machinery, and equipment requiring reliable, scheduled grease delivery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure correct voltage and power supply (AC as per model specification)
• Connect to compatible metering devices (series progressive or single line parallel)
• Install vent valve as required for system operation
• Use M12 connectors for remote monitoring and control
• Follow all safety and electrical guidelines during installation
• Regularly check reservoir level and system alarms for maintenance
