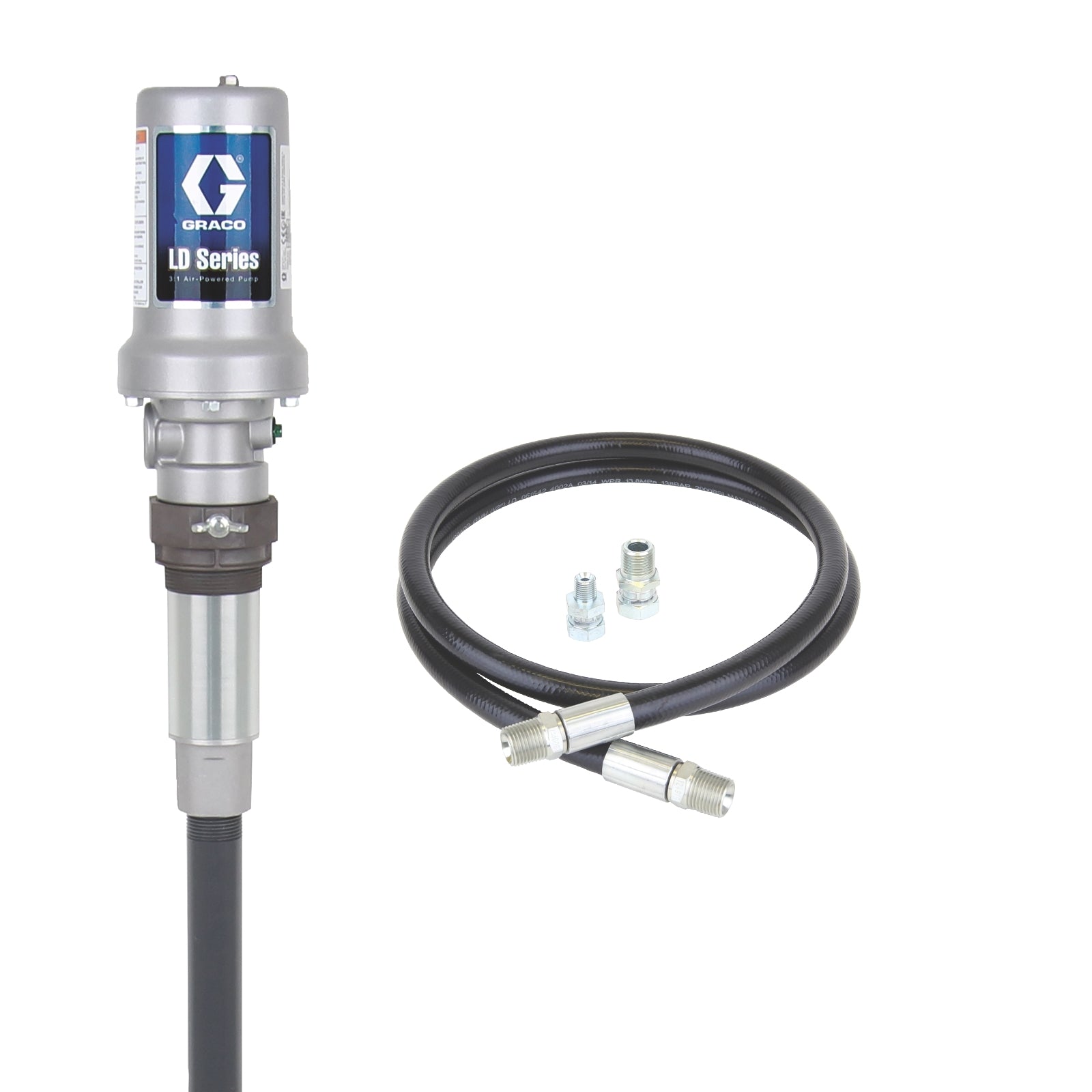

The GRACO 24H801 is a stationary oil pump package designed for reliable transfer of synthetic and petroleum-based oils. It features a preset meter type and flex extension, making it suitable for controlled dispensing in service garages and industrial settings. The pump is constructed for durability and is engineered to handle a variety of oil types.

Key Features:

• Stationary Oil Pump Package
• LD Series 3:1
• Durable, engineered for long service life; patented cup and plate design eliminates the need for O-rings that can wear out
• Maximum fluid working pressure: 450 psi (31 bar, 3.10 MPa)
• Synthetic and petroleum-based oils, hydraulic fluids, transmission fluids
• Three-inch air motor for increased power and better flow
• Patented cup and plate design for reduced maintenance
• Preset meter type for controlled dispensing
• Flex extension for flexible installation
• Engineered for durability and reliability
• Reduces repair hours and downtime

Applications:
Ideal for transferring and dispensing oils in vehicle service garages, industrial maintenance, and lubrication applications. Suitable for use with drum, tote, or wall mount solutions.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure proper air supply (recommended air pressure <125 psi for optimum life)
• Follow manufacturer guidelines for mounting and connecting hoses
• Regularly inspect and maintain the pump and meter system to prevent leaks and ensure consistent performance
• Use appropriate accessories and meters for specific fluid types
• Consult the equipment manual for detailed installation and maintenance instructions
• Contact a GRACO specialist for compatibility and troubleshooting support
