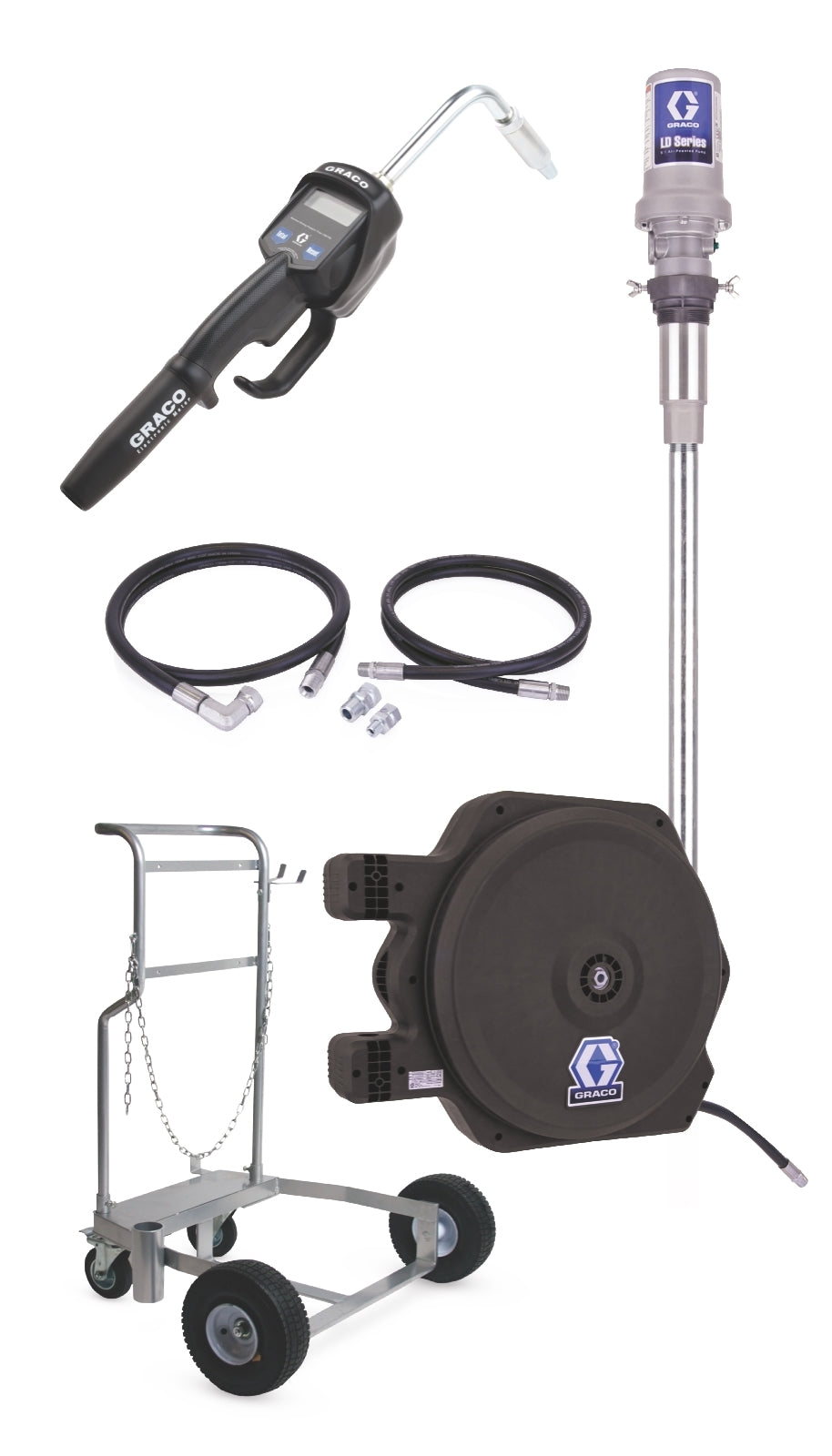

The GRACO 24H916 is a mobile oil pump package designed for efficient transfer of oil from 200-liter drums. It is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum, making it durable and suitable for industrial environments. This pump is intended for lower-volume oil transfer applications within GRACO equipment, offering a compact, flexible, and robust solution for vehicle service and maintenance tasks.

Key Features:

• Piston Pump Package
• LD Series 5:1, 200 Liter (55 Gallon)
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• Oil
• Three-inch air motor for increased power and better flow
• Patented cup and plate design eliminates O-rings for enhanced durability and longer life
• In-line pump design maximizes seal life
• Patented self-cleaning pilot valves for reliability in dirty air environments
• Built-in thermal relief and inlet strainer for equipment protection

Applications:
Designed for lower-volume oil transfer applications, such as vehicle service, maintenance, and lubrication tasks in industrial, mining, and agricultural settings.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with GRACO equipment.
• Ensure proper alignment of air motor and fluid piston rods for maximum seal life
• Configure air inlet and exhaust locations as needed for your installation
• Use the built-in inlet strainer to protect the pump from contaminants
• Regularly inspect and maintain the pump according to manufacturer guidelines
• Follow all safety procedures during installation and operation
• Use only compatible fluids as specified by GRACO
• Consult the equipment manual for detailed installation and maintenance instructions
