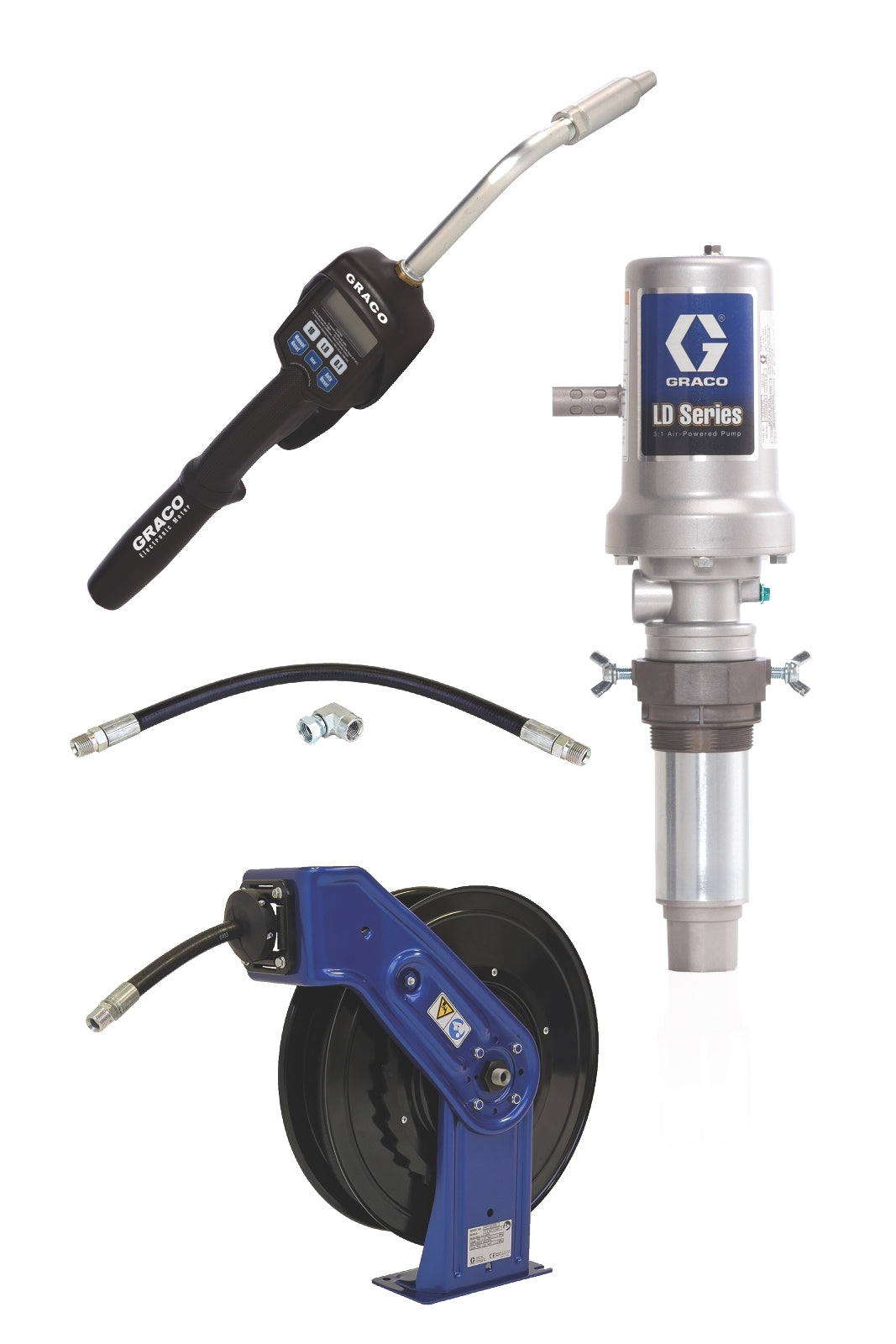

The GRACO 24J734 is a tank-mounted, pneumatic piston pump package designed for efficient oil transfer in lower-volume applications. It is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum, ensuring durability and compatibility with various oils. This pump is intended for use in vehicle service and industrial lubrication systems.

Key Features:

• Piston Pump Package
• LD Series 3:1
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• 7.8 GPM
• Maximum Working Pressure: 750 psi (5.2 MPa, 52 bar, 5200 kPa)
• Oil
• Preset meter type for accurate dispensing
• Includes SD™ Series Hose Reel for easy hose management
• Compact and flexible design for lower-volume applications
• Durable construction for long service life
• Pneumatic (air-powered) operation for safety and reliability

Applications:
Ideal for vehicle service centers, industrial lubrication systems, and any environment requiring efficient, reliable oil transfer in lower-volume applications.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure proper air supply (0.25 inch air inlet recommended)
• Mount securely to tank or appropriate surface
• Connect fluid inlet (1 inch) and outlet (1/2 inch) as specified
• Use compatible oil only
• Regularly inspect and maintain seals and hoses for leaks or wear
• Check and clean inlet strainer regularly to prevent contamination
• Monitor for signs of wear on moving parts
• Follow manufacturer’s recommended maintenance schedule
• Use only recommended replacement parts
