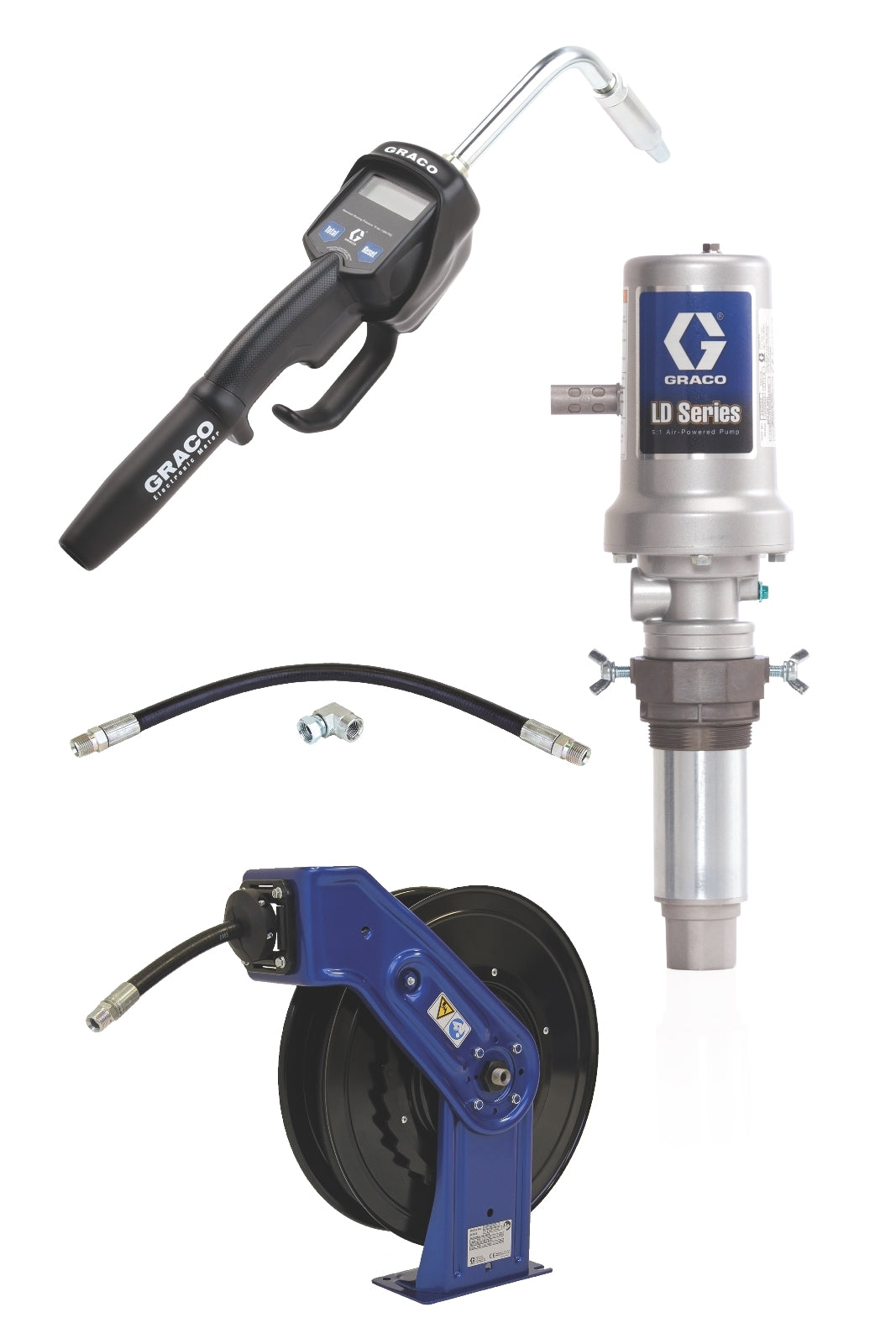

The GRACO 24J735 is a tank-mounted oil pump package designed for efficient and reliable oil transfer. It is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum, making it robust and suitable for industrial environments. This pump is intended for use in vehicle service and lubrication systems, providing a durable solution for oil dispensing and maintenance tasks.

Key Features:

• Piston Pump Package
• LD Series 5:1
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• 6.7 GPM
• Maximum Working Pressure: 750 psi (5.2 MPa, 52 bar)
• Oil
• Manual meter type for precise dispensing
• Includes SD™ Series hose reel for easy hose management
• Pneumatic power type for reliable operation
• Durable construction for long service life
• Compact and flexible design for various installation environments

Applications:
This pump is suitable for vehicle service, lubrication systems, and industrial maintenance applications where reliable oil transfer is required.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure proper alignment and secure mounting of the pump and hose reel
• Connect air supply within the recommended operating range (20–150 psi)
• Use compatible oil and check for contaminants before operation
• Regularly inspect and maintain the pump and hose reel for optimal performance
• Periodically check for leaks and wear
• Clean and inspect the inlet strainer to prevent contamination
• Follow manufacturer guidelines for lubrication and part replacement
