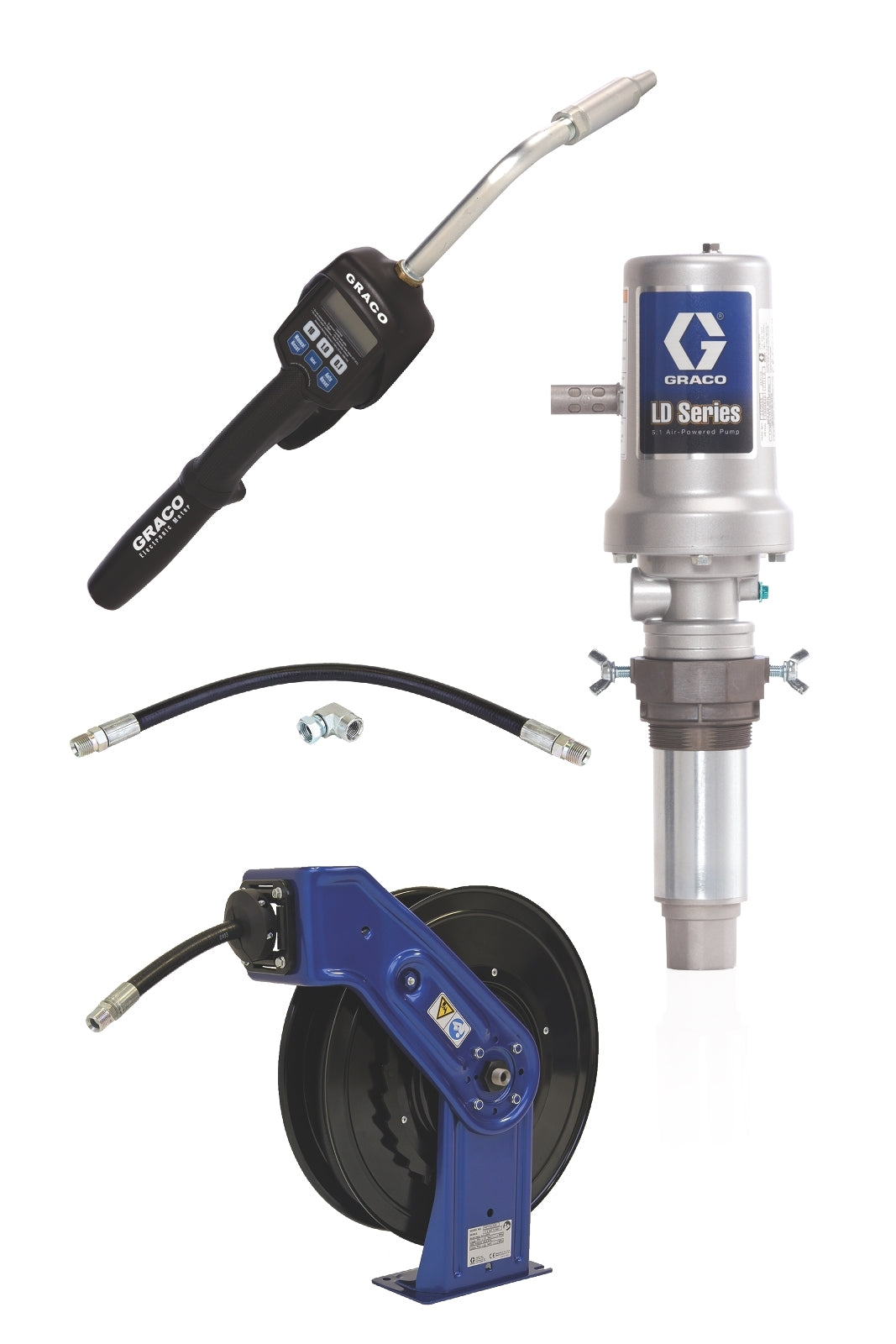

The GRACO 24J736 is a pneumatic, tank-mounted oil pump designed for efficient and reliable oil dispensing in lower-volume applications. It is constructed from durable materials including zinc-plated carbon steel, aluminum, nitrile, and polyurethane, and is intended for use with motor oil, gear oil, ATF, and hydraulic fluid within GRACO lubrication systems.

Key Features:

• Piston Pump Package
• LD Series 5:1
• Zinc-plated carbon steel, aluminum, nitrile, polyurethane, nickel-plated aluminum
• Maximum working pressure: 750 psi (51.7 bar, 5.17 MPa)
• Motor oil, gear oil, ATF, hydraulic fluid
• Three-inch air motor for increased power and flow
• Patented cup and plate design eliminates O-rings for enhanced durability
• Modular air valve for easy installation and configuration
• Pilot valves with self-cleaning design for reliability in dirty air environments
• Built-in thermal relief and inlet strainer for equipment protection
• Compact, flexible, and durable solution for lower-volume applications

Applications:
Ideal for dispensing motor oil, gear oil, ATF, and hydraulic fluid in automotive, industrial, and maintenance environments where lower-volume, reliable oil transfer is required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing GRACO equipment.
• Install a bleed-type master air valve upstream from the pump air regulator for safety and easy maintenance
• Ensure proper air pressure (recommended <125 psi for optimum life)
• Configure air inlet and exhaust locations using the modular air valve for simple installation
• Use the built-in inlet strainer to protect the pump from contaminants
• Regularly inspect and maintain the pump according to manufacturer guidelines
