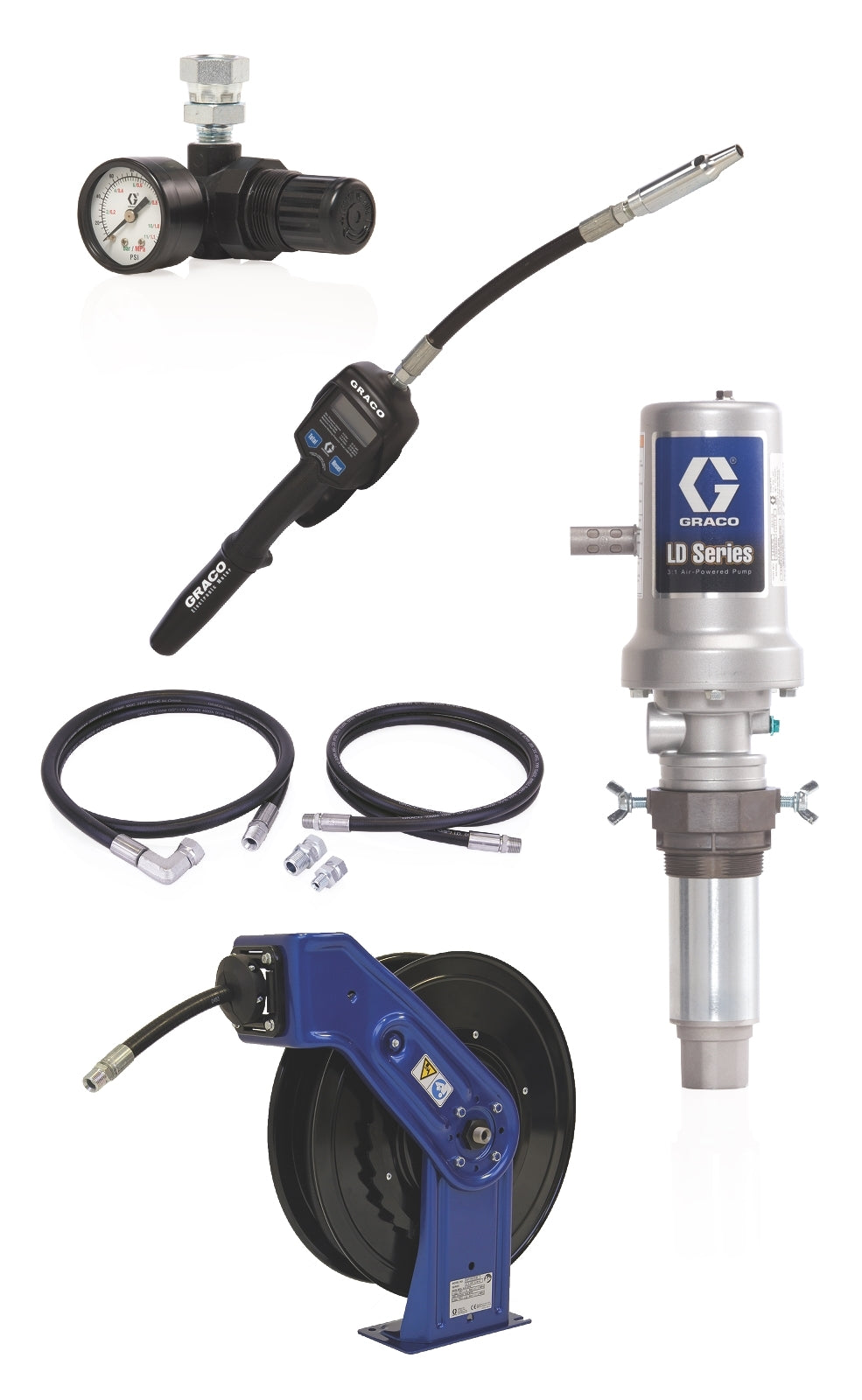

The GRACO 24K797 is a deluxe tank mount oil pump package designed for efficient oil transfer and dispensing. It features a robust construction using zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum components, making it suitable for handling various oils. This pump is intended for lower-volume applications and is engineered for reliability and ease of use within GRACO lubrication equipment.

Key Features:

• Piston Pump Package
• LD Series 3:1
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• Maximum Working Pressure: 750 psi (5.2 MPa, 52 bar)
• Oil
• Three-inch air motor for increased power and better flow
• Patented cup and plate design eliminates O-rings for enhanced durability
• Modular air valve for easy configuration and installation
• Patented self-cleaning pilot valves for reliability in dirty air environments
• Built-in thermal relief and inlet strainer for equipment protection
• Compact, flexible, and durable solution for lower-volume applications

Applications:
This pump is ideal for transferring and dispensing oil in automotive, industrial, and maintenance environments where lower-volume, reliable oil handling is required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Ensure proper alignment and secure mounting of the tank and pump assembly
• Connect air supply within the recommended operating range (20–150 psi)
• Use appropriate fittings and hoses for oil transfer
• Regularly inspect and clean the inlet strainer to prevent contamination
• Follow manufacturer guidelines for maintenance and troubleshooting
