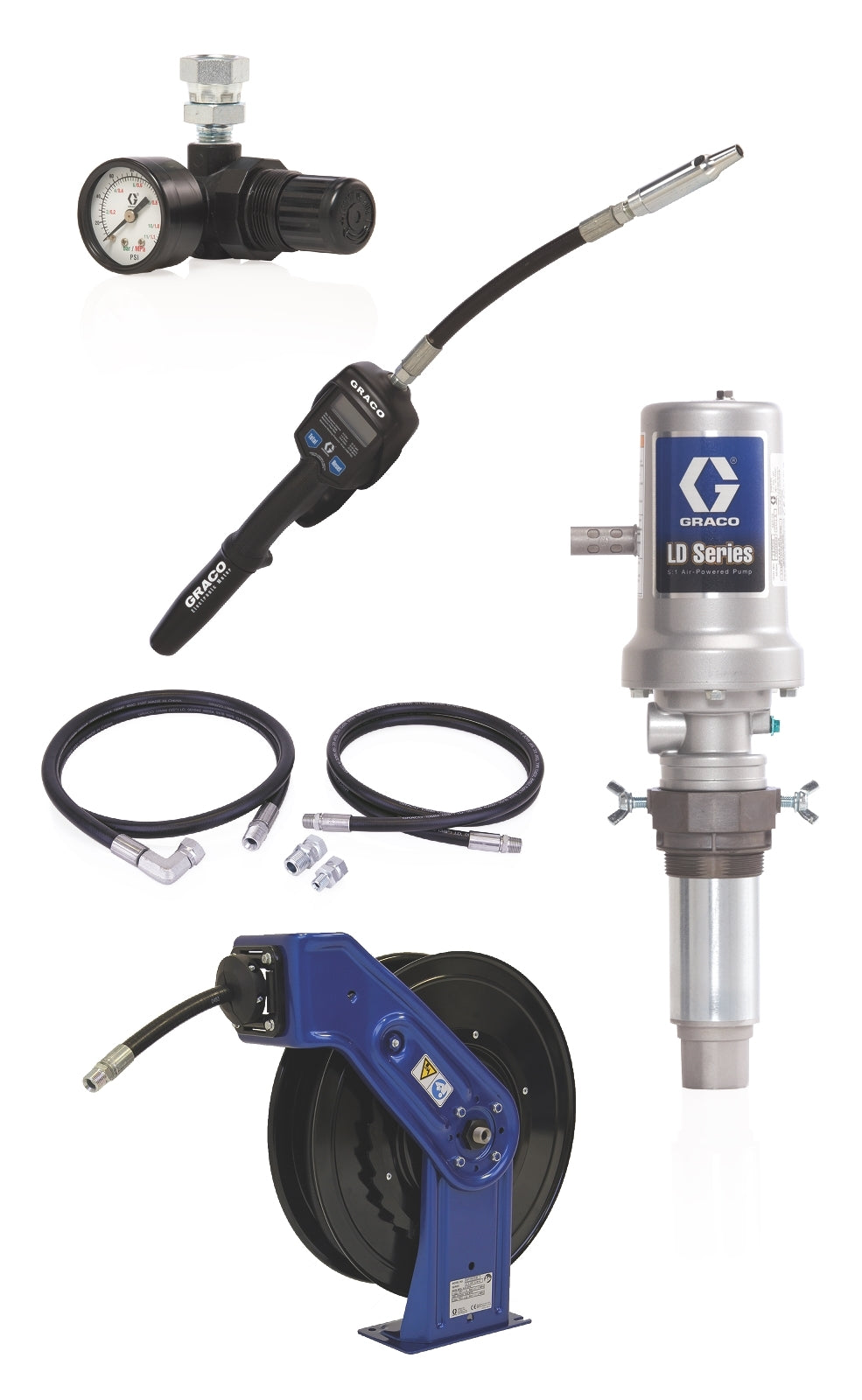

The GRACO 24K800 is a pneumatic piston pump package designed for efficient, reliable transfer of motor oil, gear oil, ATF, and hydraulic fluid. It features a 5:1 pump ratio and is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum. This package is intended for bulk oil transfer in service garages, industrial, and fleet maintenance environments.

Key Features:

• Piston Pump Package
• LD Series 5:1
• Zinc-plated carbon steel, aluminum, nitrile, polyurethane, nickel-plated aluminum
• 6.7 GPM (maximum)
• Maximum working pressure: 750 psi (5.2 MPa)
• Motor oil, gear oil, ATF, hydraulic fluid
• Built-in thermal relief for equipment protection
• Three-inch air motor for increased power and flow
• Cup and plate design eliminates O-rings for longer life
• Compact, flexible, and durable solution
• Manual meter type for precise dispensing

Applications:
Bulk oil transfer in service garages, industrial, fleet maintenance, and similar environments. Suitable for lower volume applications with 1 to 2 dispense points and up to 20,000 gallons annual usage.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance. Non-genuine parts may compromise safety and equipment longevity.
• Ensure all connections are secure and leak-free before operation
• Use recommended air pressure (<125 psi for optimum life)
• Follow manufacturer guidelines for hose and reel installation
• Regularly inspect and maintain pump and hose components for wear and leaks
• Check for leaks and wear periodically
• Clean and lubricate moving parts as recommended
• Replace worn or damaged components promptly
• Store equipment in a clean, dry environment
