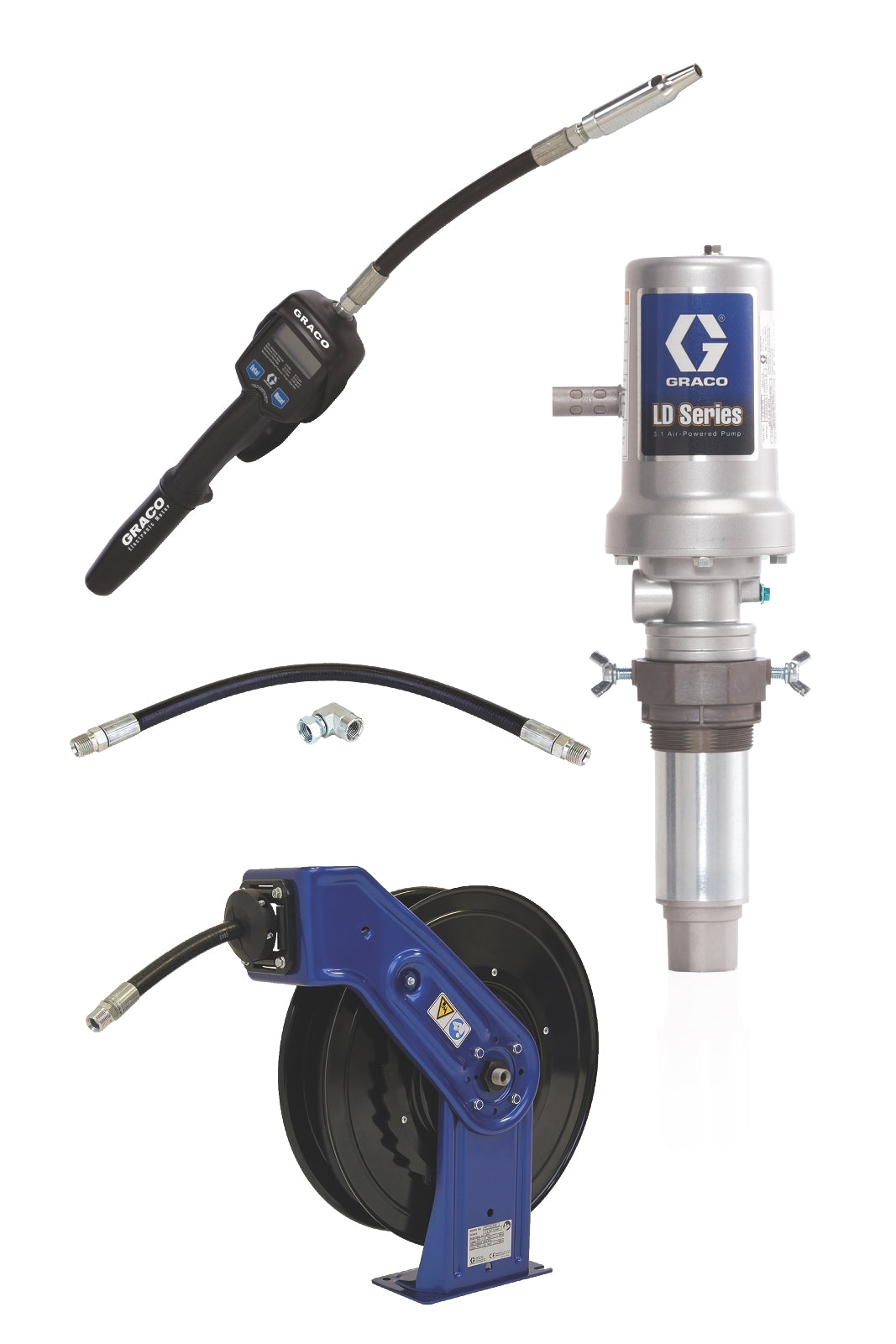

The GRACO 24K836 is a piston pump package designed for transferring oil in lower-volume applications. It is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum, ensuring durability and compatibility with oil-based fluids. This pump is intended for use in vehicle service and industrial lubrication systems.

Key Features:

• Piston Pump Package
• LD Series, 3:1 ratio
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• 7.8 GPM
• Maximum Working Pressure: 750 psi (5.2 MPa, 52 bar, 5200 kPa)
• Oil
• Compact and flexible design for lower-volume applications
• Engineered for durability with patented cup and plate design (eliminates O-rings that wear out faster)
• Modular air valve for easy configuration of air inlet and exhaust locations
• Patented self-cleaning pilot valves for reliability in dirty air environments
• Built-in thermal relief and inlet strainer for equipment protection

Applications:
Ideal for vehicle service, industrial lubrication, and other lower-volume oil transfer applications.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and longevity of the equipment.
• Ensure proper alignment and secure mounting of the pump and hose reel
• Connect air supply according to specifications (0.25 in air inlet)
• Use compatible oil-based fluids only
• Regularly inspect and clean the inlet strainer to prevent contamination
• Follow all safety guidelines and manufacturer recommendations during installation and maintenance
