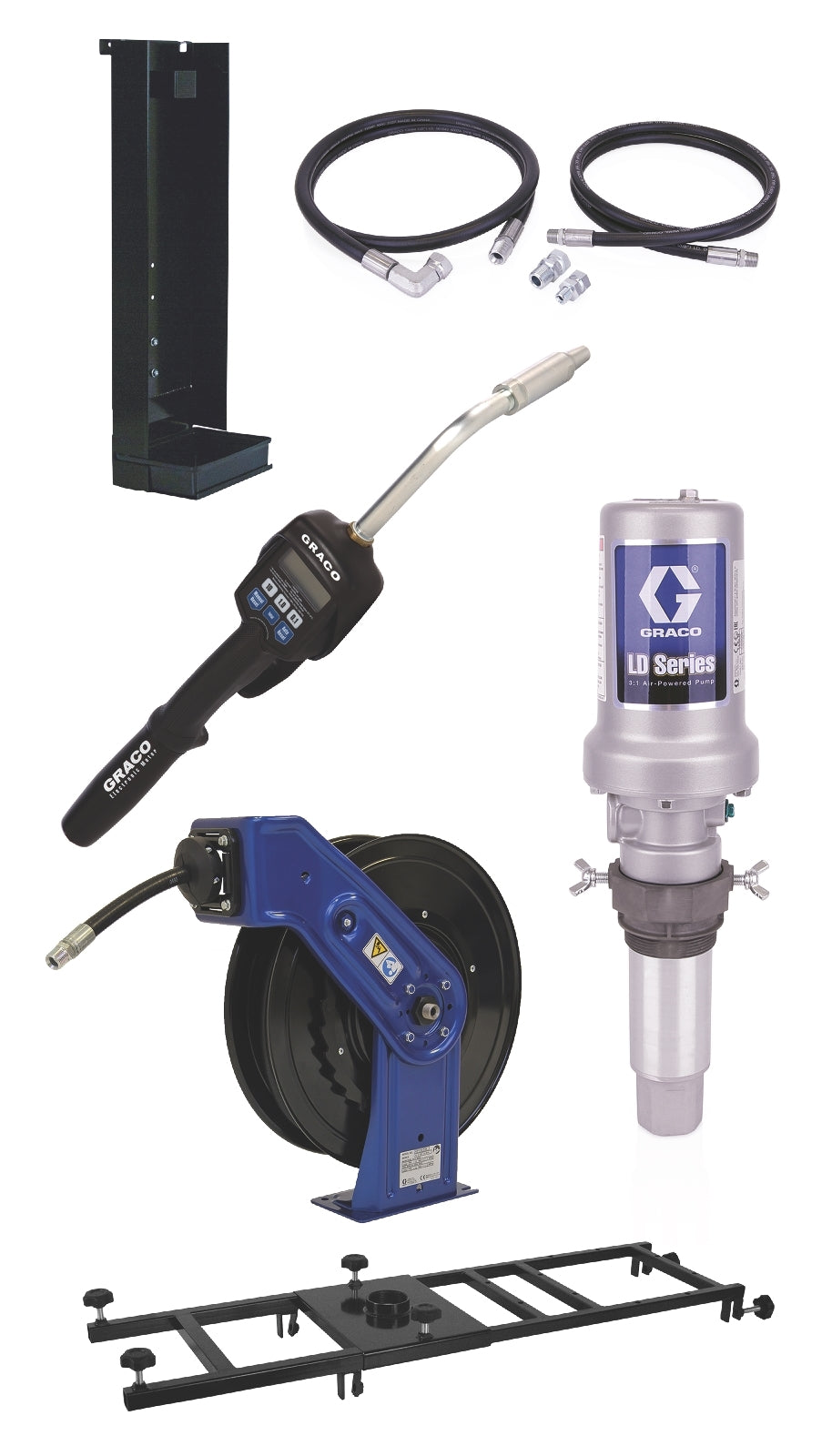

The GRACO 24K838 is a stationary piston pump package designed for efficient oil transfer and dispensing from large totes. It is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum, and is intended for use in vehicle service and industrial lubrication applications.

Key Features:

• Piston Pump Package
• LD Series 3:1, 275 Gallon (1040 Liter)
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• 7.8 GPM
• Maximum Working Pressure: 750 psi (5.2 MPa, 52 bar, 5200 kPa)
• Oil
• Three Inch Air Motor for increased power and flow
• Patented cup and plate design for durability and reduced maintenance
• Extended seal life due to in-line pump design
• Patented self-cleaning pilot valves for reliability in dirty air environments
• Built-in thermal relief and inlet strainer for equipment protection
• Compact, flexible, and durable solution for lower-volume applications

Applications:
Ideal for vehicle service shops, industrial lubrication, and any environment requiring reliable, high-volume oil dispensing from large totes.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure proper air supply and filtration for pneumatic operation
• Install inlet strainer to protect pump from contaminants
• Follow manufacturer guidelines for hose reel and meter integration
• Regularly inspect and maintain seals and pilot valves for longevity
• Check and clean inlet strainer periodically
• Monitor for leaks and wear on seals and O-rings
• Lubricate moving parts as recommended by GRACO
• Replace worn components with genuine GRACO parts
