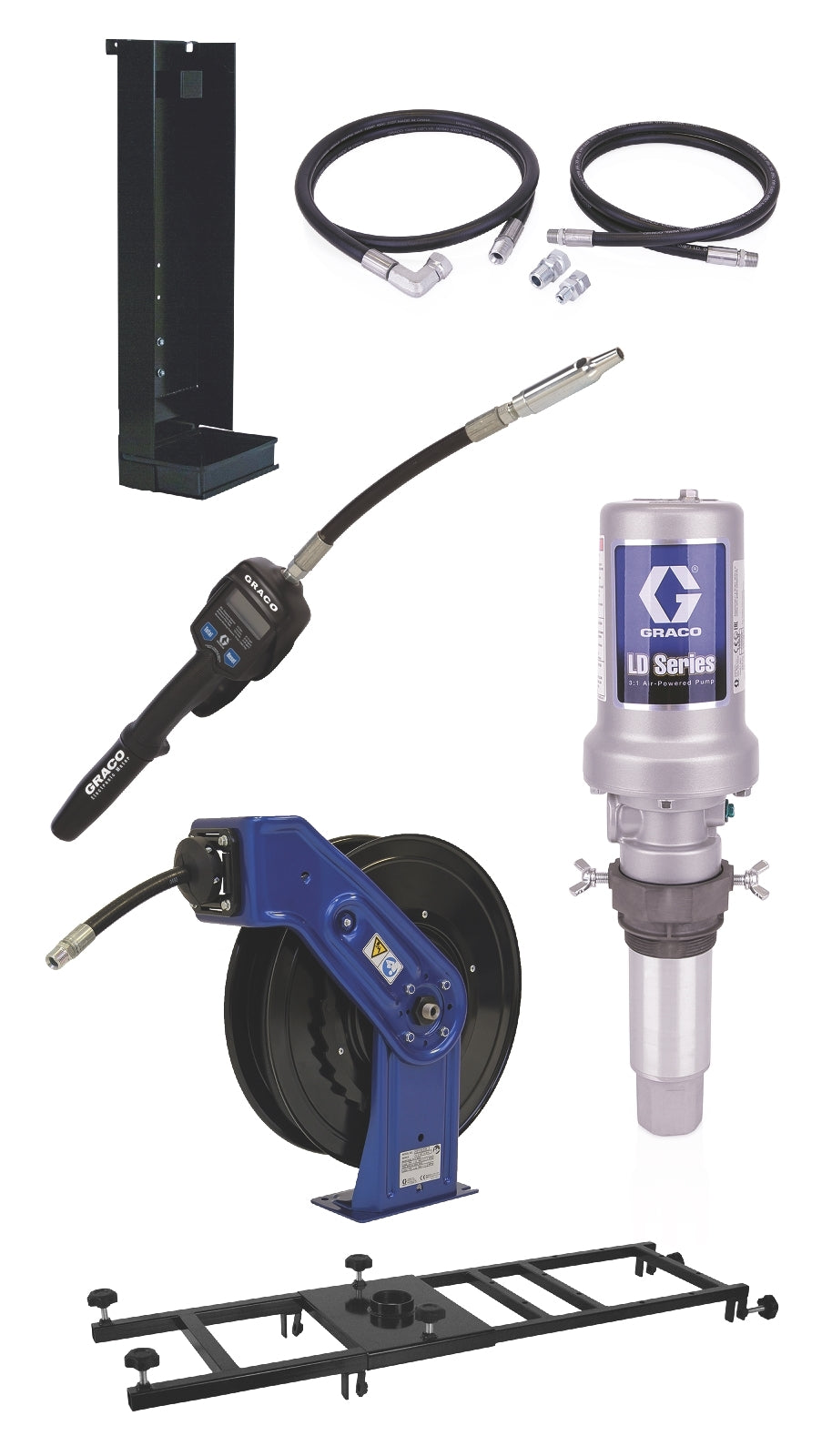

The GRACO 24K842 is a stationary oil pump system designed for efficient and reliable transfer of oil in industrial and vehicle service environments. It is constructed from zinc-plated carbon steel, aluminum, nitrile, polyurethane, and nickel-plated aluminum, and is intended for use with oil in lower-volume applications.

Key Features:

• Piston Pump Package
• LD Series 3:1, 275 Gallon (1040 Liter)
• Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
• 7.8 GPM (Gallons per Minute)
• Maximum Working Pressure: 750 psi (5.2 MPa, 52 bar, 5200 kPa)
• Oil
• Three Inch Air Motor for increased power and better flow
• Patented cup and plate design for durability and elimination of O-rings that wear out
• Modular air valve for easy configuration and installation
• Patented self-cleaning pilot valves for reliability in dirty air environments
• Built-in thermal relief and inlet strainer for equipment protection

Applications:
Designed for lower-volume oil transfer applications in vehicle service, industrial, and maintenance settings.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Ensure proper alignment and secure mounting of the pump and hose reel
• Connect air supply according to specifications (0.25 inch air inlet)
• Use appropriate fittings for oil inlet (1 inch) and outlet (1/2 inch)
• Regularly inspect and clean the inlet strainer to prevent contamination
• Follow manufacturer guidelines for maintenance and troubleshooting
