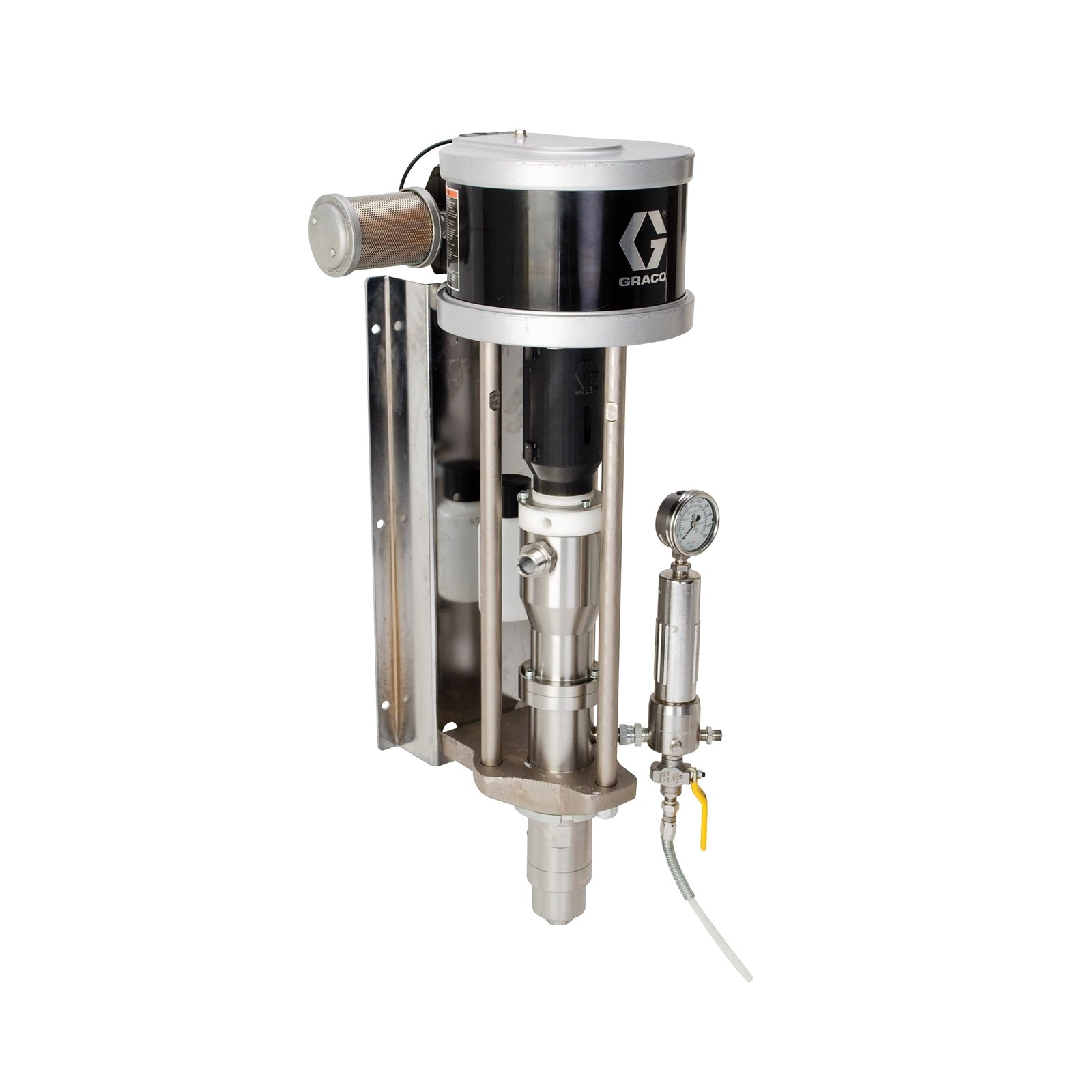

The GRACO G24B02 is a piston pump assembly designed for reliable circulation and supply of coatings and fluids in industrial environments. It features a stainless steel construction and is intended for use with shear-sensitive materials such as UV coatings and waterborne products. The pump is equipped with V-Packing seals for handling abrasive materials and includes a DataTrak monitoring system for diagnostics and maintenance tracking.

Key Features:

• Bellows Pump
• G24B02, 24:1 Ratio, 150cc
• Stainless Steel
• Designed for use with shear-sensitive materials, including UV coatings and waterborne materials
• Improved bellows seal design for reliability
• V-Packing seals for abrasives or U-Cup seals for UV coatings
• 360-degree rotatable inlet fitting for easy access
• Reliable air valve for smooth and rapid changeover
• Easy-to-flush lower and fewer parts for improved serviceability
• Quick removal coupler for easy disassembly
• DataTrak electronic monitoring system for diagnostics, batch tracking, and maintenance schedules

Applications:
Used for circulating and supplying coatings and fluids in industrial settings, especially where shear-sensitive materials such as UV coatings and waterborne products are involved.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing equipment.
• Ensure proper alignment and secure mounting of the wall mount
• Follow manufacturer guidelines for air and fluid connections
• Regularly inspect and maintain seals and moving parts
• Utilize the DataTrak system for monitoring and maintenance scheduling
• Perform preventative maintenance as recommended by GRACO
• Flush the pump lower regularly to prevent buildup and ensure smooth operation
• Replace seals and other wear parts with genuine GRACO components
