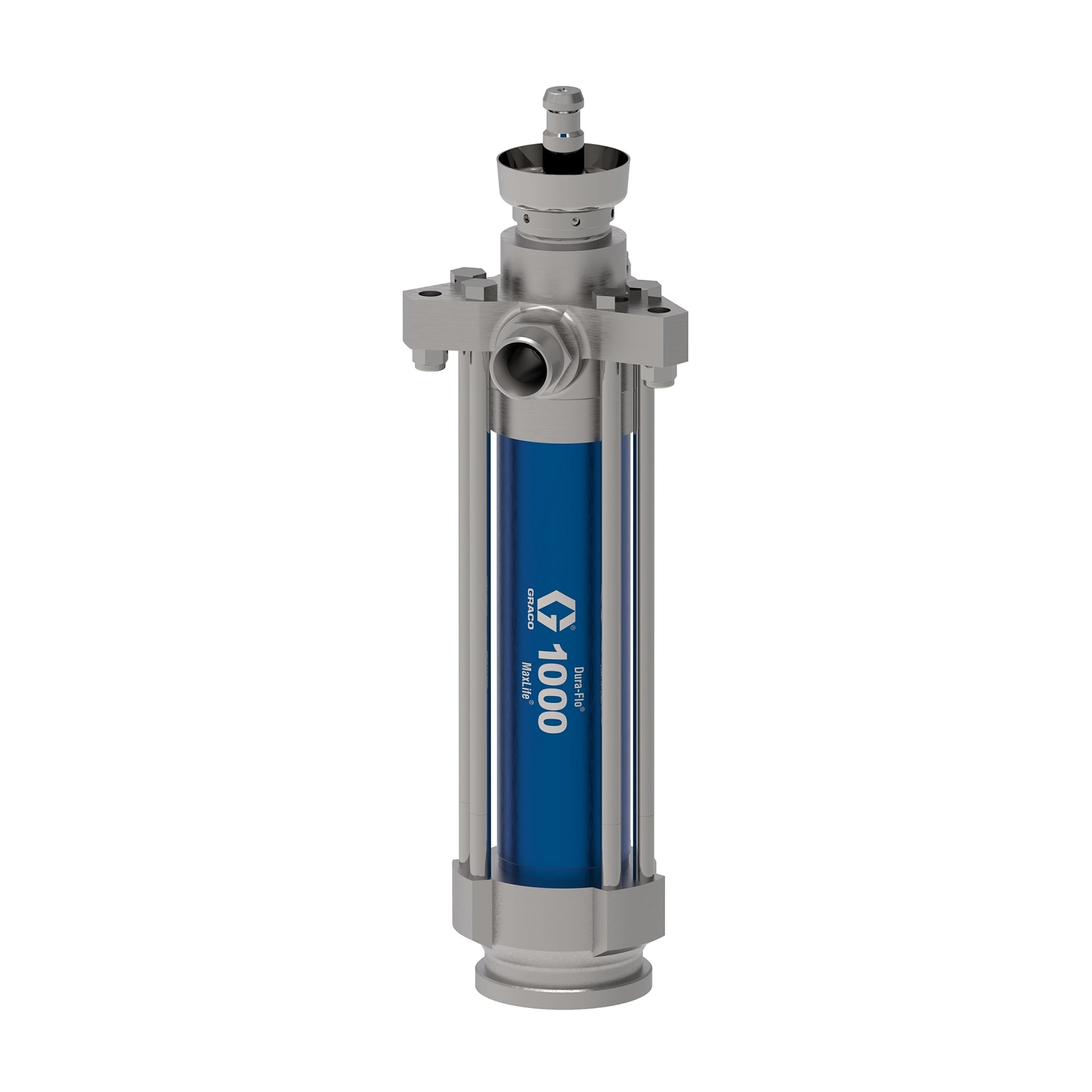

The GRACO 25V506 Dura-Flo XL 1000cc MaxLife is a heavy-duty pump lower engineered for high-pressure applications, constructed with robust materials including carbon steel, stainless steel, and advanced coatings. It is designed for use in demanding environments to pump medium to high viscosity sealants, adhesives, and coatings within GRACO equipment.

Key Features:

• Pump lower
• Dura-Flo XL 1000cc MaxLife
• Carbon steel, stainless steel (304, 404, 17-4 PH), chrome, zinc, electric nickel plating, silicone nitride, tungsten carbide, ductile iron, acetal, PTFE, carbon-filled PTFE, UHMWPE, leather (wetted parts)
• 13.5 gpm (51 lpm) at 50 cycles/min
• Maximum fluid working pressure: 2500 psi (17 MPa, 172 bar); Maximum hydraulic inlet pressure: 3000 psi (21 MPa, 207 bar)
• For use with GRACO high-pressure spray equipment, bulk supply of medium to high viscosity materials
• Legendary durability for severe applications
• 11.25 inch stroke for less change-overs and more paint per stroke
• Adjustable wet cup for extended packing life
• Xtreme Seal Packing and U-Cup design for effective high-pressure sealing
• Fast repairs with simple tools
• Over-sized porting for less pressure drop and higher performance
• MaxLife Coating for 3X life over Severe Duty Coating
• Engineered for lasting, heavy-duty performance

Applications:
Professional spraying of medium to high viscosity sealants, adhesives, and coatings in industrial, mining, and agricultural environments.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and longevity of equipment.
• Follow all safety instructions and warnings in the manual
• Ensure correct setup for optimal performance from day one
• Perform preventative maintenance to ensure peak performance and longevity
• Quickly swap out the pump with just a few simple tools for fast repairs
• Use only recommended fluids and follow storage procedures
• Regularly inspect and maintain packing and seals
• Store components according to GRACO guidelines to prevent premature wear
• Replace parts as recommended by the maintenance schedule
