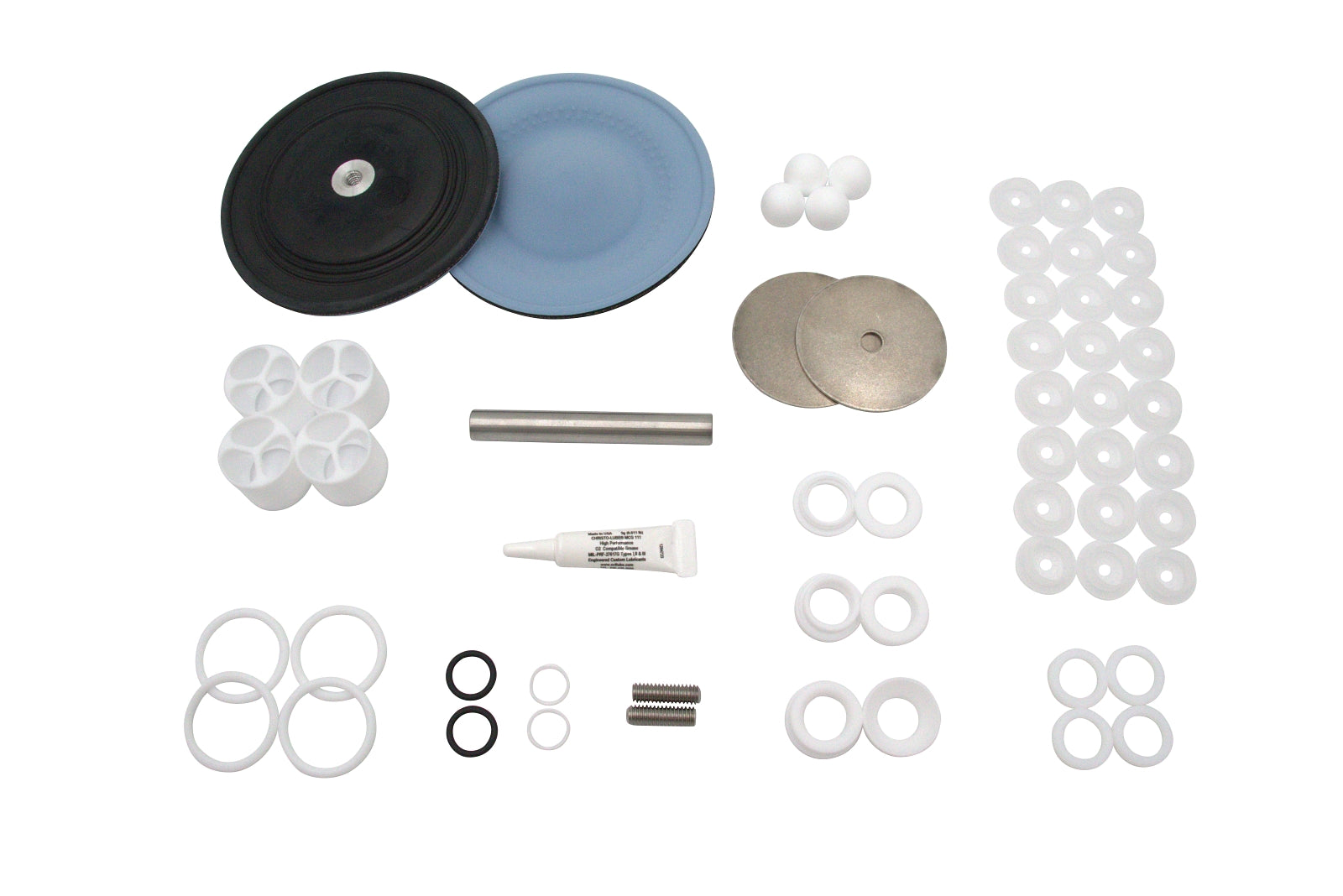

The GRACO 17F123 Fluid Section Rebuild Kit is a comprehensive set of replacement parts designed for the fluid section of GRACO air-operated double diaphragm pumps. The kit includes components such as strike plates, diaphragm shafts, O-rings, wearable seats, ball retainers, D-rings, check balls, diaphragms, cap plugs, glide shaft seals, threaded studs, and PFPE lubricant. Most components are made from PTFE (polytetrafluoroethylene) for chemical resistance and durability. This kit is intended for use in maintaining and repairing GRACO equipment to ensure reliable operation and minimize downtime.

Key Features:

• Fluid Section Rebuild Kit
• 17F123
• Primarily PTFE (polytetrafluoroethylene) for chemical resistance and durability
• Designed for GRACO air-operated double diaphragm pumps, such as the CS 515 TE-OT series
• Comprehensive kit for complete fluid section rebuild
• High chemical resistance due to PTFE components
• Includes all necessary seals, seats, and lubricant for reliable operation
• Ease of maintenance with all required parts in one kit
• Designed for reliability and extended equipment life

Applications:
Used for maintenance and repair of GRACO air-operated double diaphragm pumps in various industrial applications, including chemical processing, mining, agriculture, and other sectors requiring reliable fluid transfer.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, compatibility, and longevity of the equipment.
• Follow the equipment manual for step-by-step installation instructions
• Ensure all old seals and seats are removed and surfaces are clean before installing new components
• Apply included PFPE lubricant as directed for smooth operation and seal longevity
• Inspect all components for damage before installation
• Regularly check for leaks and wear after installation
