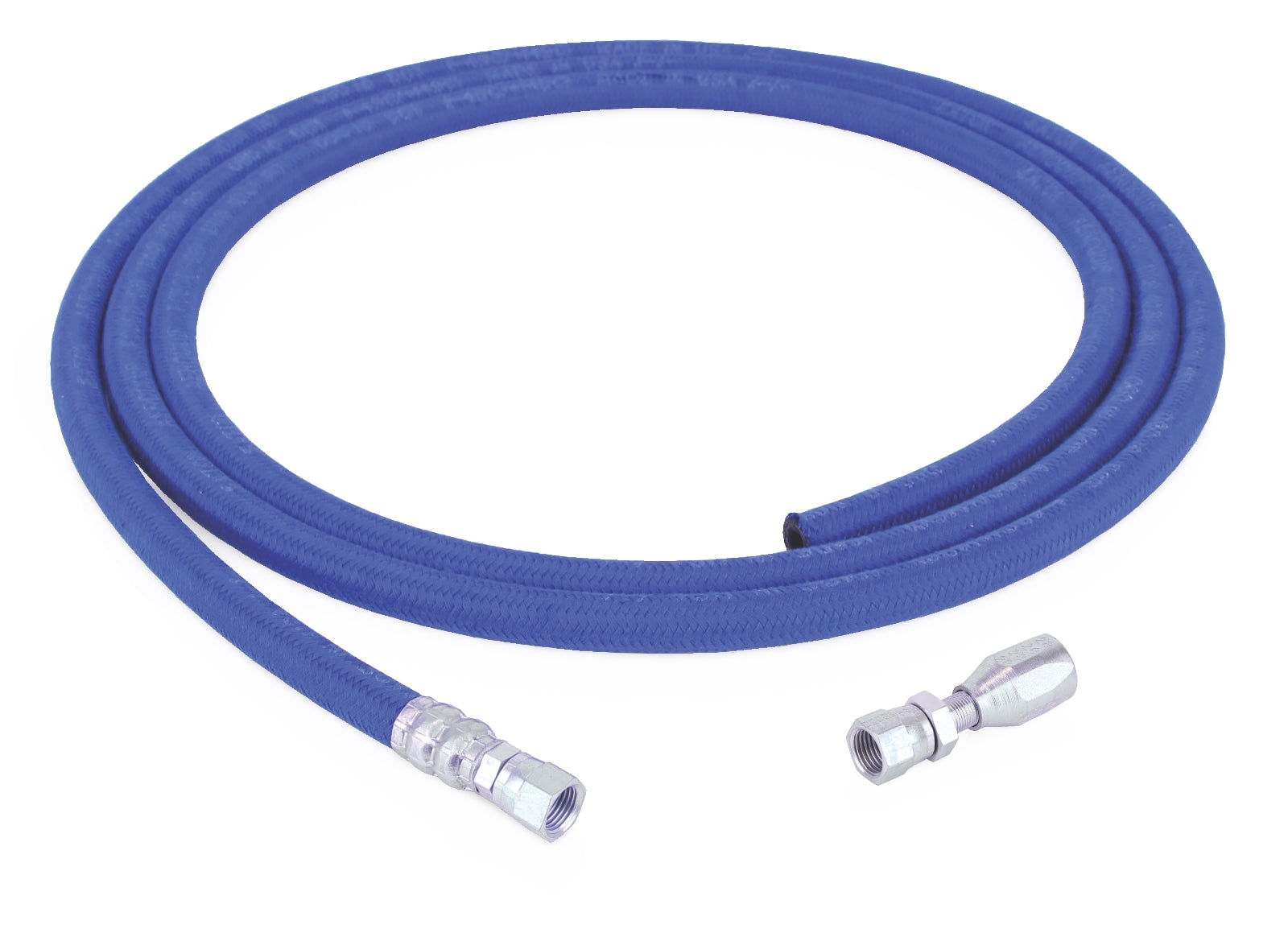

The GRACO 17S970 is a mainline hose kit designed for use with the Electric Grease Jockey automatic lubrication system. It is constructed for compatibility with oil and grease, intended for installation on on-road vehicles to deliver lubricants efficiently and reliably.

Key Features:

• Hose Kit
• Grease Jockey, 18 ft (5.5 m) length, 0.313 in (8 mm) inside diameter
• Maximum working pressure: 2250 psi (15.5 MPa, 155.1 bar, 15510 kPa)
• Oil, Grease
• Field installable -6 JIC end for flexible installation
• Swivel connection for ease of routing and maintenance
• Designed for robust, reliable operation in vehicle service environments

Applications:
On-road vehicles requiring automatic lubrication of multiple points, such as braking systems and spring pins, using the Electric Grease Jockey system.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the automatic lubrication system.
• Ensure proper routing to avoid kinks or abrasion
• Use appropriate fittings and follow manufacturer guidelines for secure connections
• Regularly inspect for leaks or wear and replace as needed
• Periodically check hose integrity and connections
• Follow system maintenance schedules as outlined in the manual
• Use only compatible lubricants as specified
