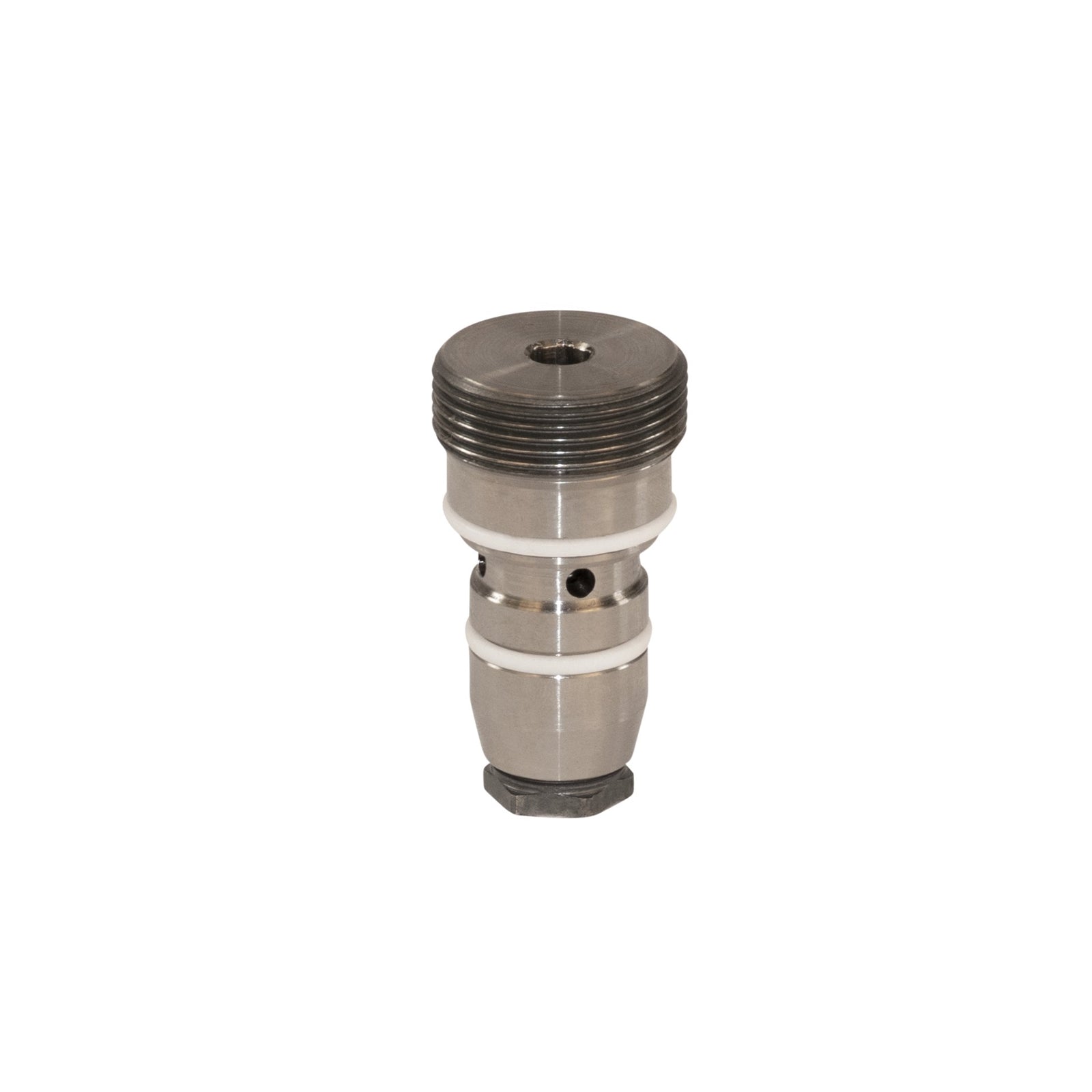

The GRACO 238748 is a cartridge repair kit designed for air-operated ambient and high-pressure fluid pressure regulators. It is intended for use in maintaining and repairing GRACO regulators, ensuring reliable fluid pressure control in industrial applications. The kit includes components such as a cartridge assembly, needle, seat, and copper gasket, suitable for use with stainless steel, waterbase-compatible, and high-pressure regulators.

Key Features:

• Repair Kit
• 238748
• Stainless steel, waterbase-compatible, high-pressure fluid pressure regulators (models 238889, 238890, 238891, 238892, 238893, 238894, 243090, 26A086)
• Ease of maintenance (comprehensive kit for regulator repair)
• Reliability (genuine GRACO parts for optimal performance)
• Factory direct availability

Applications:
Used for the repair and maintenance of GRACO air-operated ambient and high-pressure fluid pressure regulators in industrial lubrication and fluid handling systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the regulator.
• Follow all safety instructions and torque specifications provided in the GRACO manual (e.g., torque cartridge components as specified, apply lithium-based grease when reassembling)
• Refer to manual 406342 for detailed installation and maintenance procedures
• Consult a GRACO specialist for compatibility and installation support
