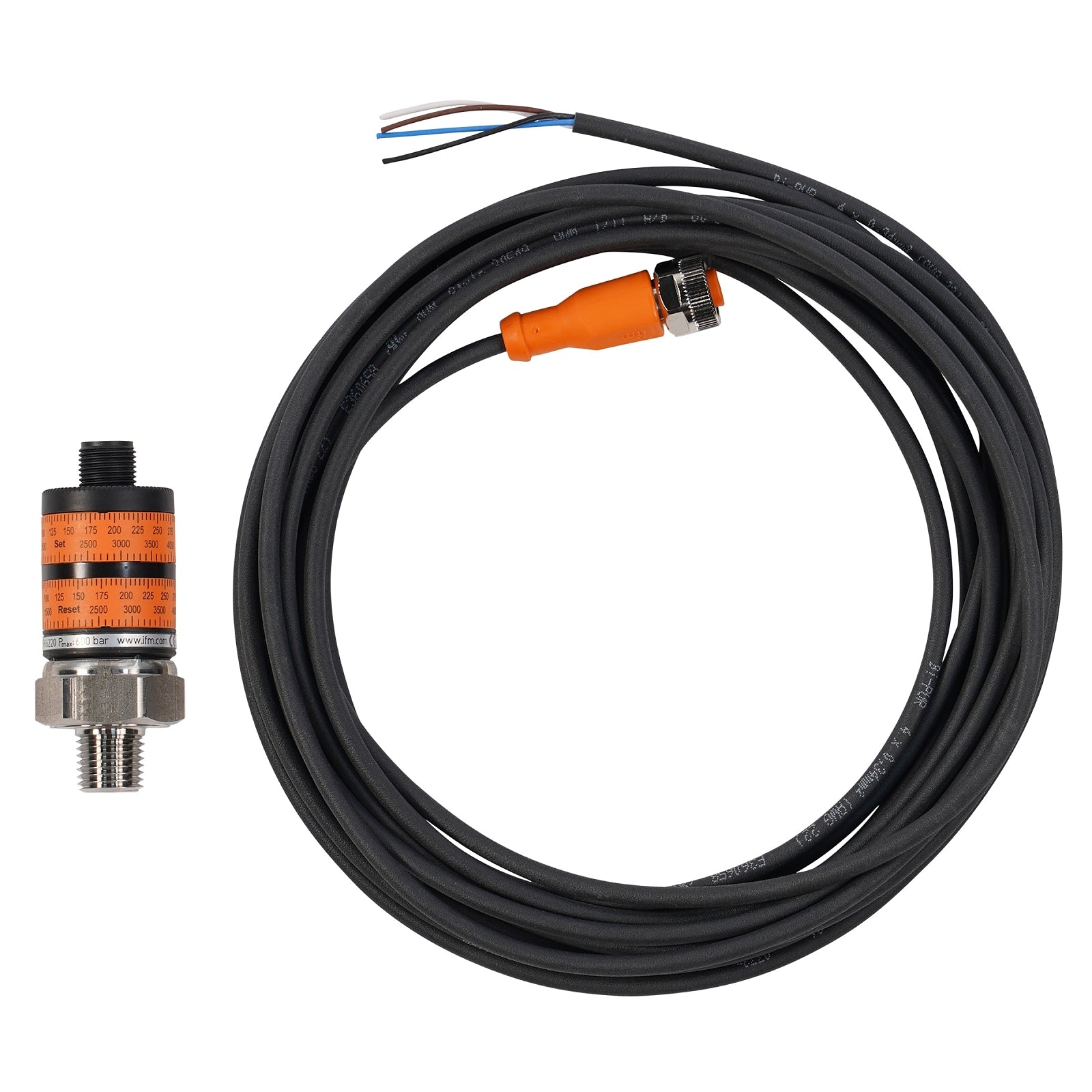

The GRACO 25V704 Pressure Switch Kit is a component designed to provide pressure feedback within GRACO G-Mini Jockey automatic lubrication systems. It consists of a pressure switch and a wiring harness, intended for use with systems equipped with the GLC2200 controller. The specific material of the switch is not detailed, but typical construction for such components includes robust plastics and metals for durability in industrial environments.

Key Features:

• Pressure Switch
• For use with G-Mini Jockey systems with GLC2200 controller
• High and low adjustable pressure settings
• Single post design
• 1/4 NPT male connection
• 9.6-32 VDC operating voltage
• 4-pin, M12 micro-connector
• Includes wiring harness for easy integration
• Designed for reliable pressure feedback in automatic lubrication systems

Applications:
Used in automatic lubrication systems for medium-duty commercial vehicles to ensure proper pressure feedback and system operation.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the automatic lubrication system.
• Ensure the system is powered off before installation
• Follow the wiring diagram provided with the kit
• Connect the pressure switch to the GLC2200 controller as specified
• Verify all connections are secure and properly sealed
• Test the system after installation to confirm proper pressure feedback
• Regularly inspect the pressure switch and wiring for signs of wear or damage
• Keep connections clean and free from contaminants
• Refer to the equipment manual for troubleshooting and maintenance schedules
