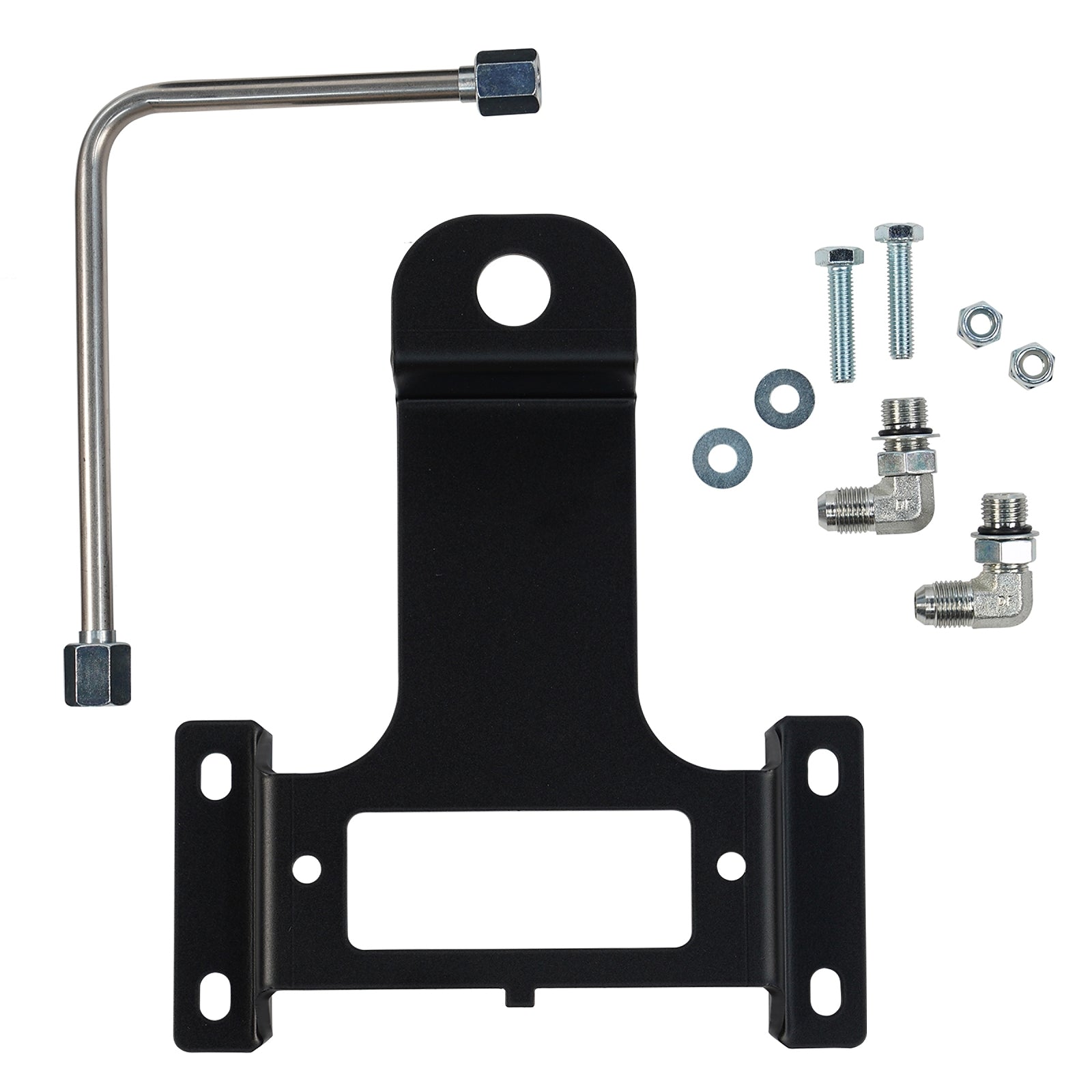

The GRACO 25V705 Injector Bracket Kit is a mounting accessory designed for use with the G-Mini Jockey pump in automatic lubrication systems. It includes a manifold injector mounting bracket and a manifold injector tube with a 90-degree elbow, facilitating secure and efficient mounting of injectors directly to the pump base for short run applications. The kit is intended to streamline installation and improve system reliability in demanding environments.

Key Features:

• Injector Bracket Kit
• 25V705
• G-Mini Jockey pump (Models 25V700, 25V701, and similar)
• Facilitates direct mounting of injector banks to pump base
• Includes manifold injector tube with 90-degree elbow for flexible routing
• Designed for short run applications
• Enhances system reliability and ease of maintenance

Applications:
Used in automatic lubrication systems for vehicles and equipment, particularly where compact and reliable injector mounting is required. Suitable for applications such as 5th wheel lubrication and other mobile or stationary lubrication points.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Follow the equipment manual for detailed installation instructions
• Ensure all connections are secure and leak-free
• Use appropriate tools and safety precautions during installation
• For installations with injectors mounted to the pump base, the 25V705 kit is required for proper mounting and alignment
• Regularly inspect bracket and injector connections for wear or leaks
• Replace worn or damaged components promptly
• Keep mounting surfaces clean and free of debris
