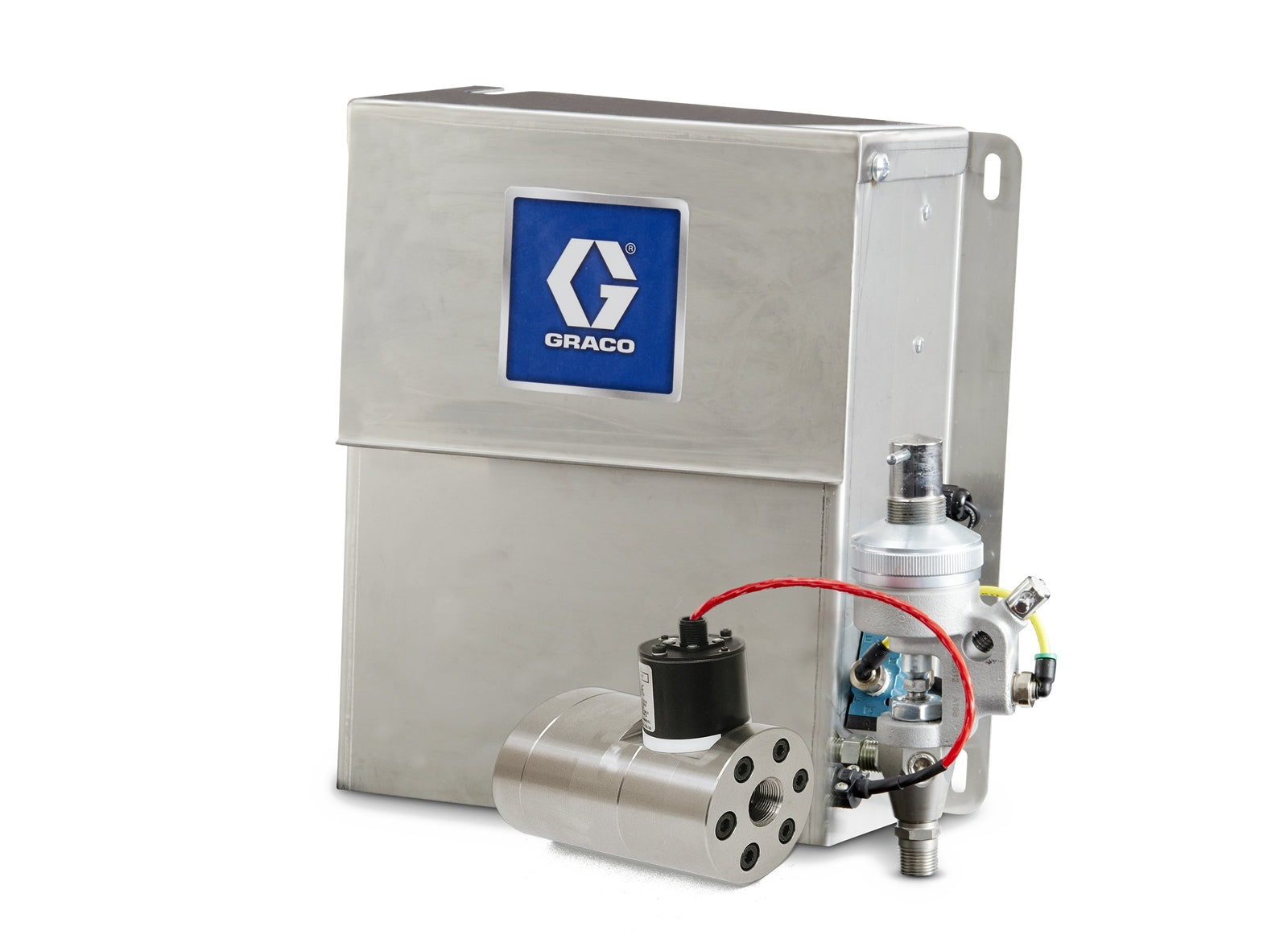

The 26A132 ProDispense Fluid Panel Kit is a fluid panel assembly designed for use with the ProDispense Electronic Preset Dispense System. It is engineered for high viscosity applications and is intended to control and monitor fluid dispensing within industrial equipment. The kit is typically constructed from industrial-grade materials suitable for handling a wide range of fluids, including oils, greases, and other viscous substances.

Key Features:

• Fluid Panel Kit
• ProDispense, HG6000 Helical Gear Meter
• ProDispense Electronic Preset Dispense System, HG6000 Helical Gear Meter
• MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet (English only)
• High accuracy for wide viscosity fluids
• Ideal for high viscosity applications
• Robust construction for industrial environments
• Easy integration with ProDispense systems

Applications:
The 26A132 ProDispense Fluid Panel Kit is used in industrial settings for precise dispensing of high viscosity fluids such as oils, greases, coolants, and other industrial fluids. It is suitable for applications requiring accurate measurement and control of fluid dispensing in manufacturing, maintenance, and lubrication systems.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the ProDispense system.
• Mount each fluid panel assembly securely
• Ground each fluid panel assembly
• Check ground continuity
• Connect fluid lines between each fluid panel and applicator
• Connect fluid supply line and air supply to module
• Plumb air filter assembly near air supply drop site
• Connect other fluid and air lines to additional system components as instructed in their manuals
• Install fluid panel and gateway cable assemblies
• Install Gateway interface
• Regularly inspect fluid lines and connections for leaks or wear. Follow manufacturer guidelines for maintenance and calibration to ensure continued accuracy and reliability.
