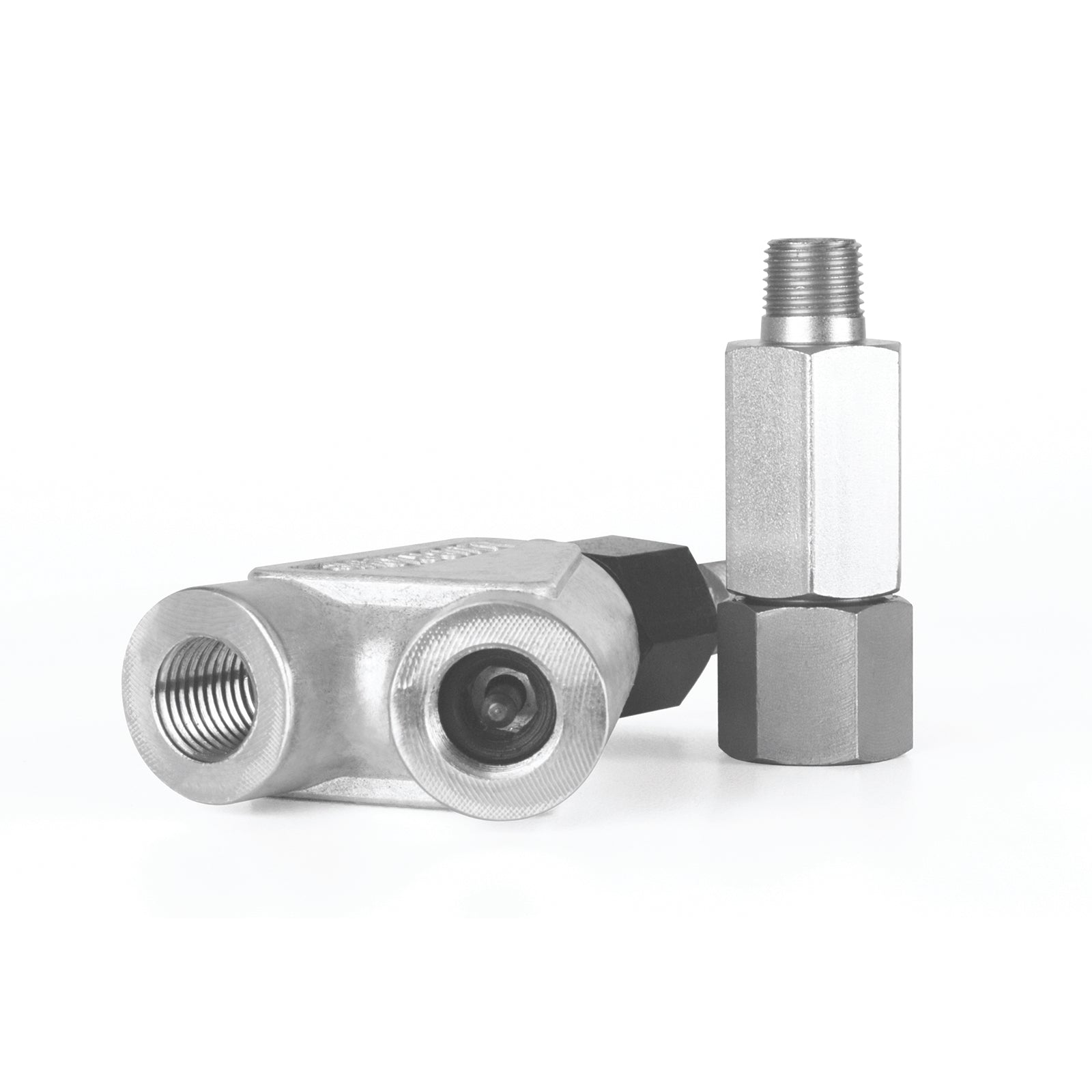

The GRACO 563078 Broken Line Indicator Kit is a monitoring device designed to protect the integrity of lubricant transmission lines in centralized lubrication systems. It consists of a 500 psi indicator and a 60 psi simulator, both constructed with robust materials suitable for industrial environments. The kit is intended for installation at divider valve outlet ports to monitor and visually indicate line integrity for critical bearing points on machinery, helping to quickly locate broken or leaking lines.

Key Features:

• Broken Line Indicator Kit
• 563078 (500 psi indicator, 60 psi simulator)
• Indicator: 500 psi; Simulator: 60 psi
• Designed for use with GRACO divider valve outlet ports in terminating oil, terminating grease, or recirculating oil systems
• Visual indication of line integrity at the lubrication point
• Central high-pressure warning capability (if equipped with pressure switch)
• Easy location of broken or leaking lines
• Reliable monitoring for critical bearing points

Applications:
Used in centralized lubrication systems for monitoring and protecting the integrity of lubricant transmission lines to critical machine bearings. Suitable for oil and grease systems in industrial, mining, and agricultural equipment.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Install at divider valve outlet ports as specified in the GRACO manual
• Ensure proper sealing and secure connections to prevent leaks
• Regularly inspect for visual indications of line breakage or leakage
• Follow all safety and maintenance guidelines provided by GRACO
