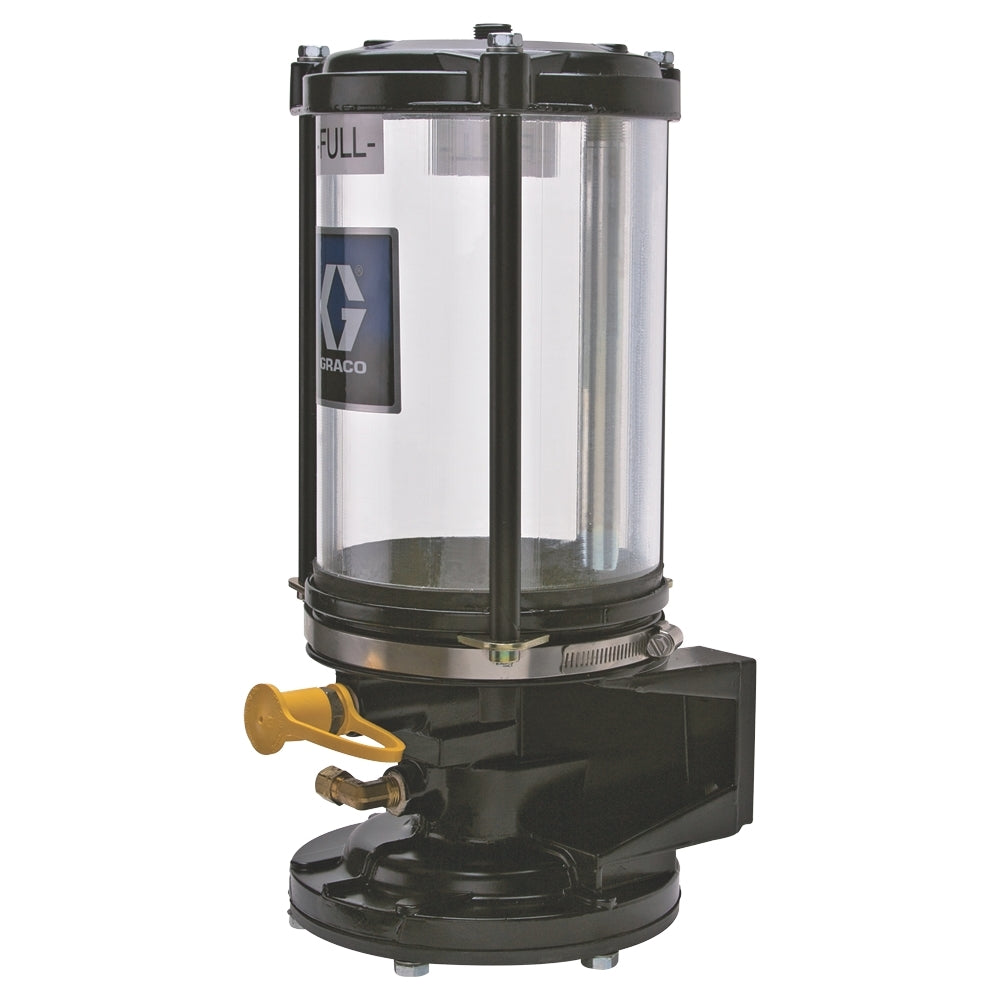

The GRACO 563589 Grease Jockey® Pump Kit is an automatic chassis lubricator designed to continuously and efficiently lubricate vehicle chassis components. It features a 6 lb. (2.72 kg) grease reservoir, straight fill port, and fluid elbow outlet. The pump is constructed primarily from aluminum with a black painted finish and is intended for use in automatic lubrication systems for on-road vehicles such as trucks, fire trucks, cement trucks, and waste haulers.

Key Features:

• Automatic chassis lubricator pump
• Grease Jockey® Pump Kit, 6 lb. (2.72 kg) grease reservoir
• Aluminum with black painted finish, plastic reservoir
• Max. working pressure: 1350 psi
• Compatible with most OEM on-road vehicles, including specialty fire trucks, cement trucks, and waste haulers; NLGI #000 to #2 grease
• Automatic, continuous lubrication
• Reduces manual maintenance and ensures consistent lubrication
• Field-proven reliability and rugged construction
• Easy installation with included hardware
• Prevents under or over greasing
• Low level signal (on some models, not explicitly stated for this kit)
• Mounting holes for secure installation

Applications:
Designed for automatic lubrication of vehicle chassis components in on-road vehicles, including trucks, fire trucks, cement trucks, and waste haulers. Suitable for harsh operating conditions and large fleet operations.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the automatic lubrication system.
• Mount the pump securely using the provided hardware and mounting holes (center-to-center edge: approx. 5", center-to-center middle: approx. 4.5")
• Connect the air inlet port (1/4" NPT) as specified
• Ensure proper alignment of the straight fill port and fluid elbow outlet
• Follow manufacturer guidelines for tubing and injector module installation
• Regularly check grease levels and system operation for consistent performance
• Monitor grease reservoir levels and refill as needed
• Inspect for leaks or damage to tubing and connections
• Clean and maintain the pump and reservoir to prevent contamination
• Refer to the GRACO Grease Jockey Support Center for troubleshooting and maintenance tips
