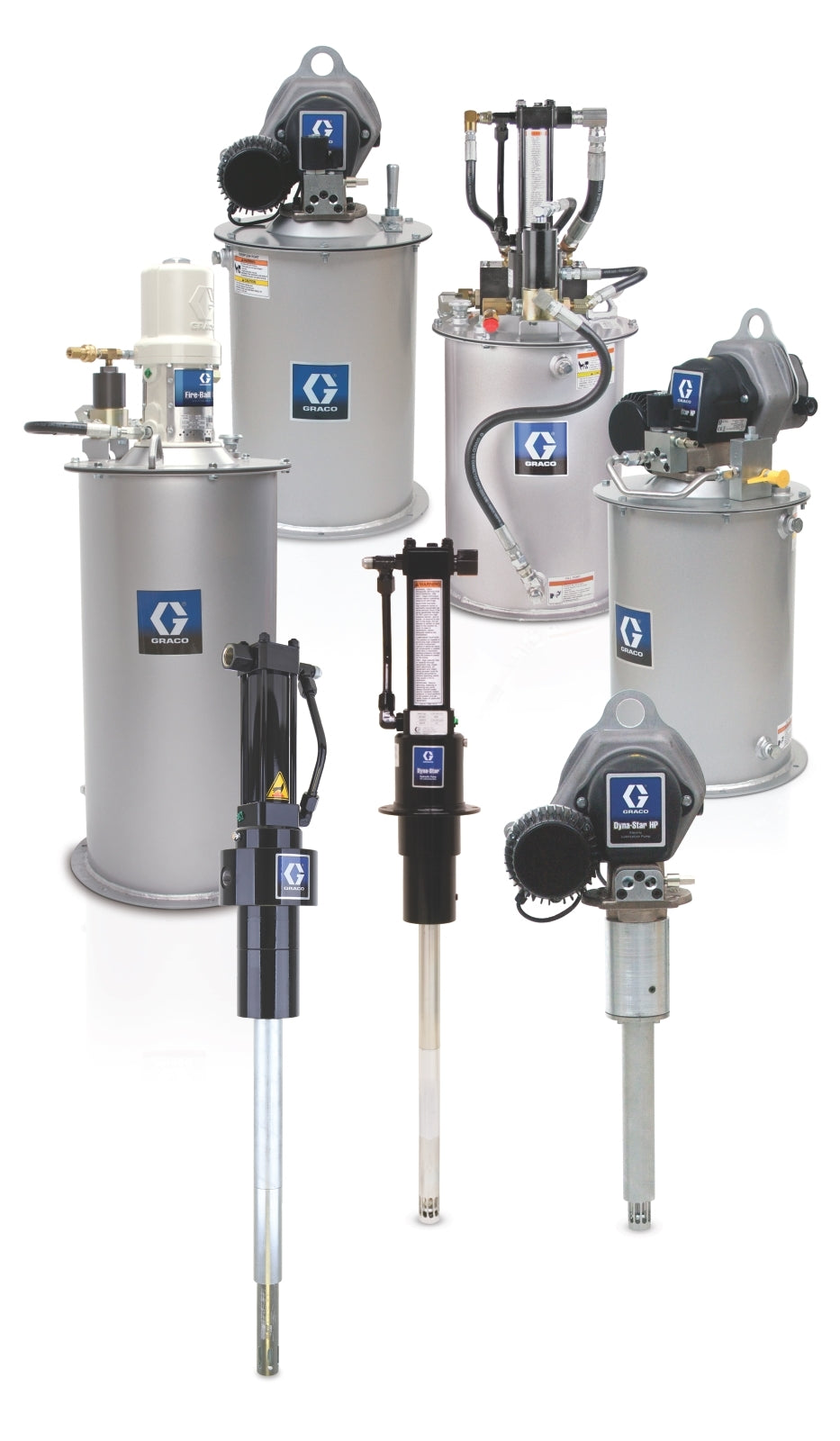

The 77X013 is a heavy-duty electric pump kit designed for automatic lubrication and transfer systems. It features a 24 VDC HP pump and a vent valve with a tube-in-tube design, intended for use with a 400 lb (180 kg) reservoir. The kit is engineered for robust performance in demanding environments such as construction and mining, providing continuous lubricant replenishment to critical equipment components.

Key Features:

• Electric pump kit for automatic lubrication
• 77X013, for 400 lb (180 kg) reservoir
• Heavy-duty, designed for industrial use
• HP models: up to 5000 psi (34.47 MPa, 344 bar) (Note: This is the general HP model specification; confirm for exact 77X013 if needed)
• Designed for use with 400 lb (180 kg) reservoirs; suitable for heavy-duty construction and mining equipment
• GRACO Advantage Drive™ – heavy-duty gear drive, lubed for life
• Tube-in-tube vent and fill path – converts drum to injector system instantly
• Vent valve mounted directly to pump – eliminates need for brackets or extra hoses and pipes
• Motor control – speed and AMP control
• Cold weather performance (–40°C)
• More efficient seal replacement

Applications:
Automatic lubrication and transfer systems for heavy-duty construction and mining equipment, providing continuous lube replenishment to flush contaminants from critical pivot points and reduce component failures.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, reliability, and compatibility with existing systems.
• Ensure the pump is compatible with the intended reservoir size (400 lb/180 kg)
• Follow manufacturer guidelines for electrical connections and mounting
• Utilize the tube-in-tube vent and fill path for quick conversion of drums to injector systems
• Mount the vent valve directly to the pump to minimize additional hardware
• Regularly inspect and maintain seals and motor controls for long-term reliability
• Consult the equipment manual for detailed installation and maintenance procedures
• Contact a GRACO specialist for specific compatibility and troubleshooting advice
• Perform routine checks on motor controls and seals, especially in cold weather environments
