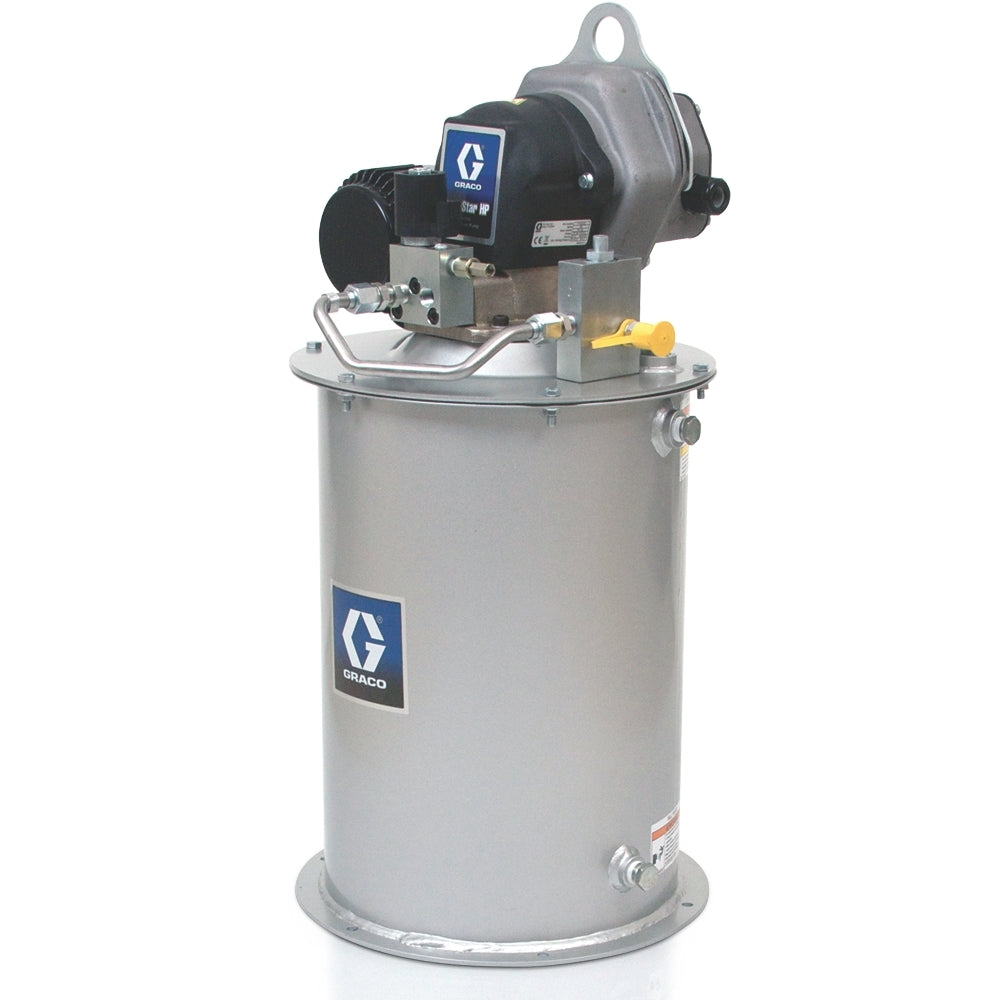

The GRACO 77X105 is an electric injector module designed for automatic lubrication systems. It features a 24 VDC pump, tube-in-tube design, vent valve, follower plate, low-level kit, cover, and a 90 lb (41 kg) reservoir tank. This module is intended for reliable, continuous grease dispensing in demanding industrial environments, ensuring optimal lubrication and reduced maintenance for off-road mobile equipment.

Key Features:

• Electric injector module with pump
• Dyna-Star® HP, 90 lb (41 kg) reservoir
• Heavy-duty, designed for harsh environments
• Designed for use with oil to NLGI #2 grease on off-road mobile equipment
• Tube-in-tube design for efficient grease delivery
• Vent valve for safe operation
• Follower plate and low-level kit for reliable grease supply
• Cover and tank for protection and easy maintenance
• Proven performance at -40°C
• Reduces unplanned downtime and maintenance costs
• Improves operational safety with optimal lubrication
• Reliable, field-proven equipment

Applications:
Automatic lubrication systems for off-road mobile equipment such as mining, construction, and agricultural machinery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Follow GRACO installation guidelines for proper setup and safety
• Ensure all connections are secure and free from leaks
• Regularly check the low-level kit and follower plate for proper function
• Use only recommended lubricants for best results
• Consult the manual for specific wiring and mounting instructions
• Regularly inspect the system for leaks or blockages
• Monitor the low-level sensor to prevent running dry
• Clean and maintain the vent valve and follower plate as needed
• Replace worn or damaged components with genuine GRACO parts
