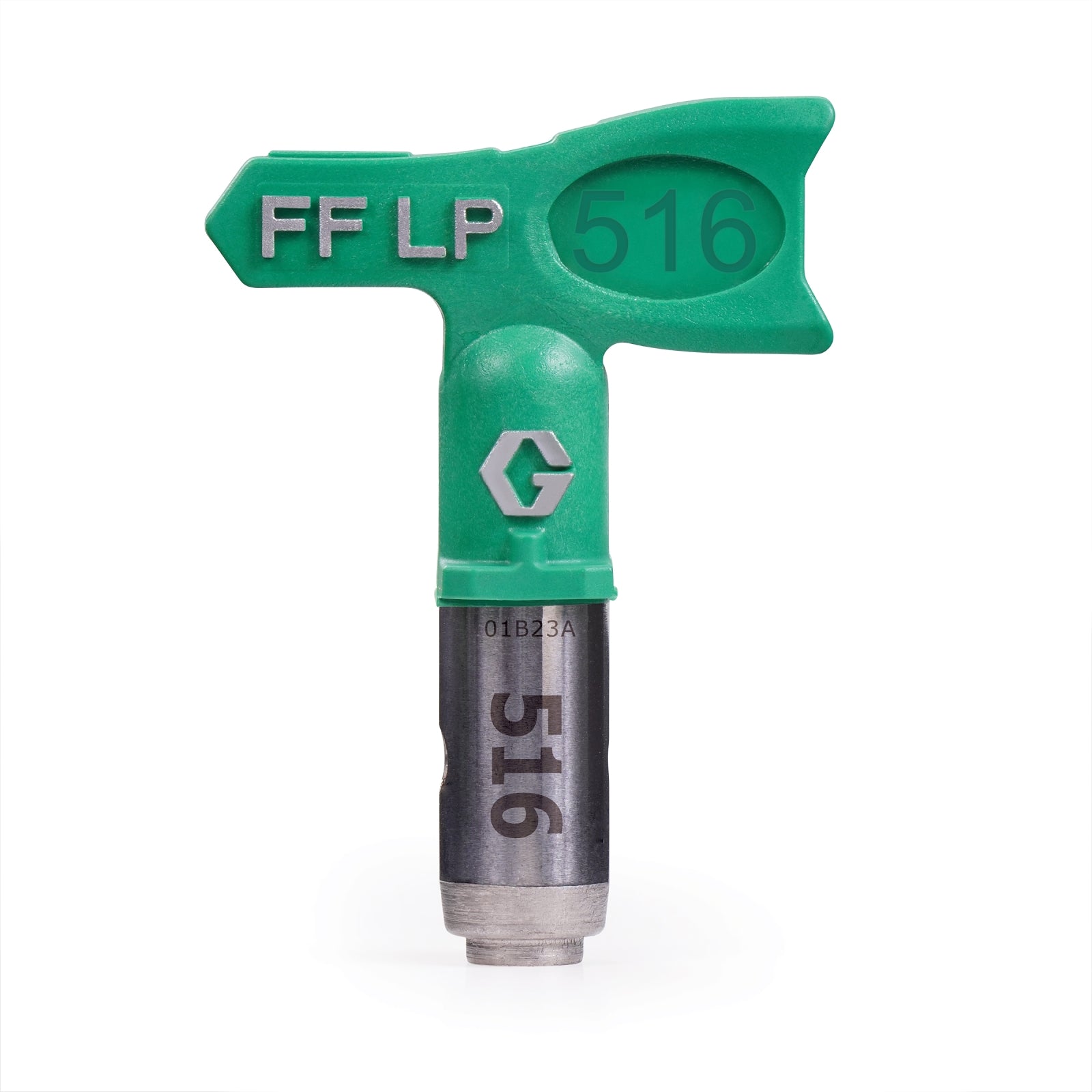

The GRACO FFLP516 is a fine finish spray tip designed for use with airless sprayers. It is constructed from durable materials suitable for professional finishing applications. Its primary function is to deliver a high-quality, consistent finish with reduced overspray and lower pressure requirements, making it ideal for finishing materials such as paints and stains.

Key Features:

• Fine Finish Low Pressure Spray Tip
• 516 (0.016 inch orifice, 10–12 inch fan pattern)
• Sprays at up to 50% lower pressure than standard tips
• Works with any airless sprayer; compatible with SmartControl on select GRACO sprayers
• Reverse-A-Clean (RAC) technology for easy clog clearing
• SmartTip internal geometry for superior atomization and finish
• Locking tab for secure placement in guard
• Snaps into spray or reverse position
• OneSeal tip gasket for tool-free installation
• Solvent seal available for use with hot solvents
• Large, raised tip size numbers for easy identification
• Reduced overspray and easier pattern overlap
• Extended tip life due to lower pressure operation

Applications:
Ideal for fine finish applications with paints, stains, and other finishing materials on various surfaces. Suitable for both professional and DIY use where a high-quality, consistent finish is required.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, compatibility, and longevity of both the tip and the sprayer.
• Ensure the sprayer is turned off and depressurized before installing or removing the tip.
• Snap the tip securely into the guard using the locking tab.
• Use the OneSeal tip gasket for tool-free installation.
• Reverse the SwitchTip to clear clogs as needed.
• Check compatibility with your specific sprayer model before installation.
• Regularly inspect the tip for wear or clogging.
• Clean the tip thoroughly after each use to prevent buildup.
• Store the tip in a clean, dry place when not in use.
• Replace the tip if the spray pattern becomes inconsistent or if damage is observed.
