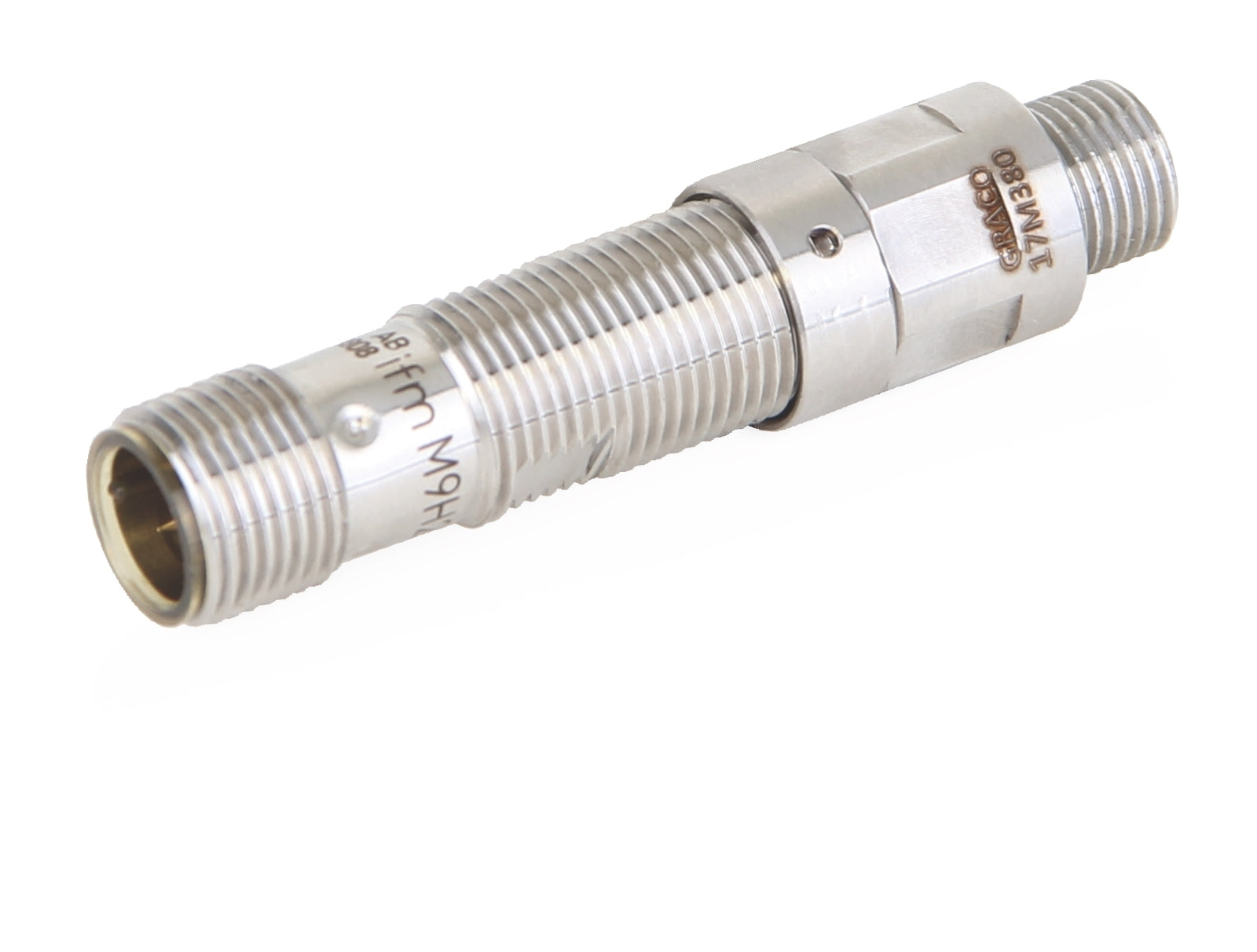

The GRACO 17M380 is a proximity switch designed for use in GRACO lubrication and fluid handling equipment. It is a magnetically-operated sensing device that sends system data to the controller or PLC, typically constructed from robust materials suitable for industrial environments. Its primary function is to monitor and signal system status within progressive lubrication systems.

Key Features:

• Proximity switch
• 1/8 NPS
• 3000 psi (206.8 bar); pressure ratings up to 10,000 psi available for other configurations
• Available for all series progressive families; cycle rates up to 200 CPM
• Magnetically-operated sensing
• Reliable signal transmission to controller/PLC
• Suitable for high-pressure environments
• Supports high cycle rates (up to 200 CPM)

Applications:
Used in industrial lubrication and fluid handling systems, particularly within progressive lubrication equipment for monitoring and control purposes.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance within GRACO equipment.
• Ensure proper alignment and secure mounting of the proximity switch
• Verify electrical connections according to system requirements (115 VAC or 12-32 VDC options available)
• Follow manufacturer guidelines for pressure and cycle rate limits
• Regularly inspect for wear and proper operation
