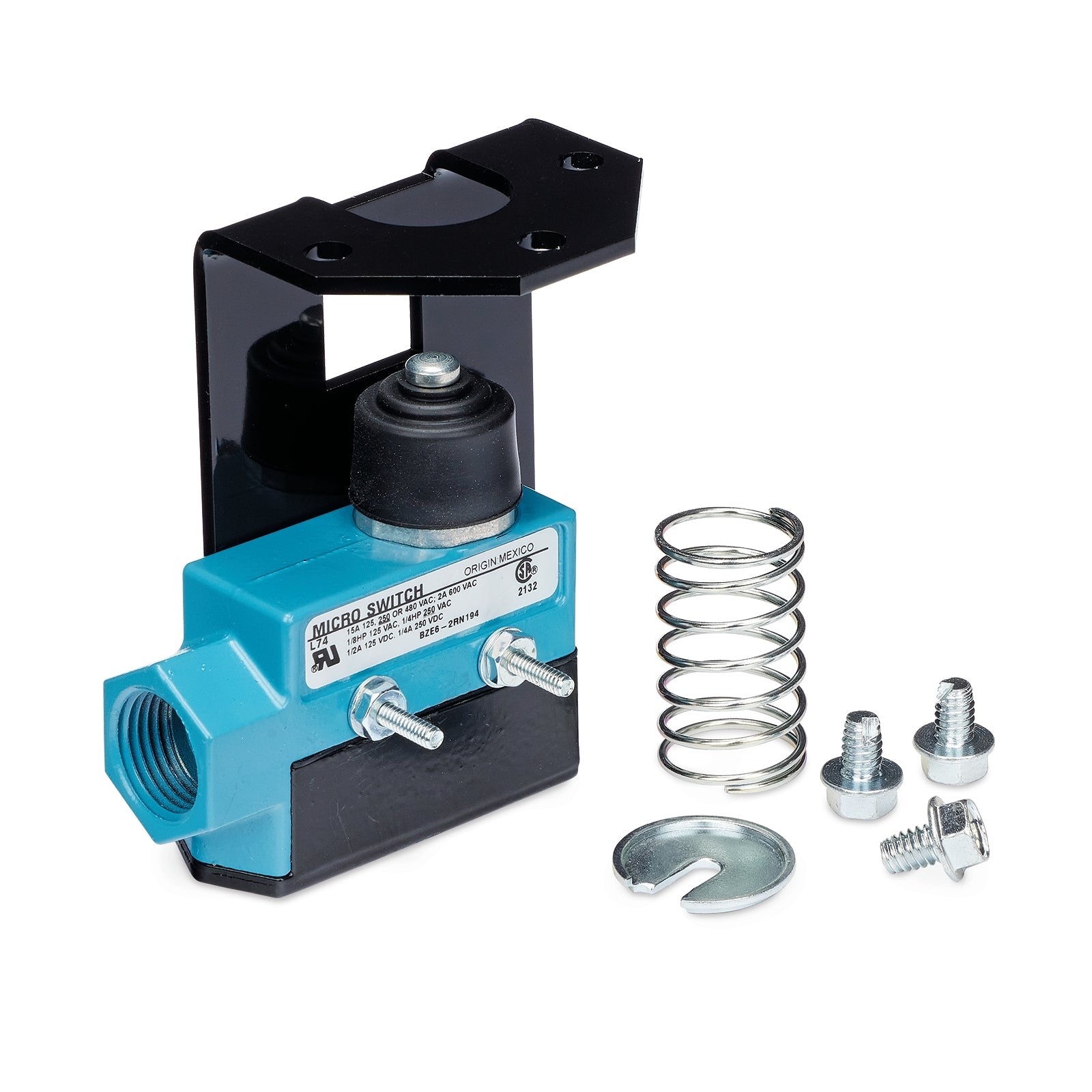

The GRACO 563322 Low Level Switch is a single-pole, double-throw (SPDT) limit switch rated at 15 amps, designed to monitor lubricant levels in grease reservoirs. It is typically constructed from durable materials suitable for industrial environments and is intended for use as a fault diagnosis or warning device within GRACO automatic lubrication systems.

Key Features:

• Low Level Switch (SPDT, 15 Amp)
• For use with all grease reservoirs; compatible with Modu-Flo, E-Series, LubriSystem, and Lube Master Pumps
• Single-pole, double-throw (SPDT) limit switch
• Rated at 15 amps, 125/250/480 VAC, 60/50 Hz
• 1/2 amp at 125 VDC, 1/4 amp at 250 VDC
• Mounts to top of grease reservoirs
• Provides fault diagnosis or warning for low lubricant levels
• Reliable operation in industrial environments

Applications:
Used in automatic lubrication systems to monitor and signal low lubricant levels in grease reservoirs, ensuring timely maintenance and preventing equipment damage due to insufficient lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Mount the switch to the top of the grease reservoir as specified in the equipment manual
• Ensure electrical connections are secure and meet local safety standards
• Test the switch after installation to confirm proper operation
• Regularly inspect and maintain the switch as part of routine equipment checks
