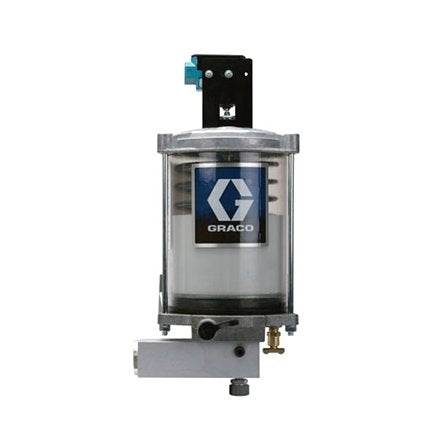

The GRACO 563360 is a pneumatic piston pump and reservoir assembly designed for automatic lubrication systems. It features a 5 lb (2.26 kg) plastic grease reservoir and is intended for use in in-plant machinery to deliver grease efficiently and reliably. The assembly is ready to install and includes a low level switch for monitoring grease supply.

Key Features:

• Pneumatic Piston Pump
• E-Series, 5 lb (2.26 kg) Plastic Grease Reservoir
• Plastic reservoir, robust pump housing
• Maximum Working Pressure: 24 bar (2400 kPa, 350 psi, 2.4 MPa)
• Grease
• Smart pump design with few moving parts for long-lasting dependability
• Easy field installation of accessories without disturbing existing plumbing
• All-in-one package with no assembly required
• Includes high-pressure rupture disc assembly and lube outlet check valve
• Low level switch for monitoring grease supply

Applications:
Ideal for in-plant machinery and any application where price and installation time are concerns. Suitable for harsh working conditions and high wear-and-tear environments.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of your lubrication system.
• Fast and simple installation—no assembly required
• Easy to install accessories in the field without disturbing existing plumbing
• Follow manufacturer guidelines for best results
• Regularly check the low level switch and grease supply
• Inspect for leaks and ensure all connections are secure
• Replace rupture disc and check valve as recommended
