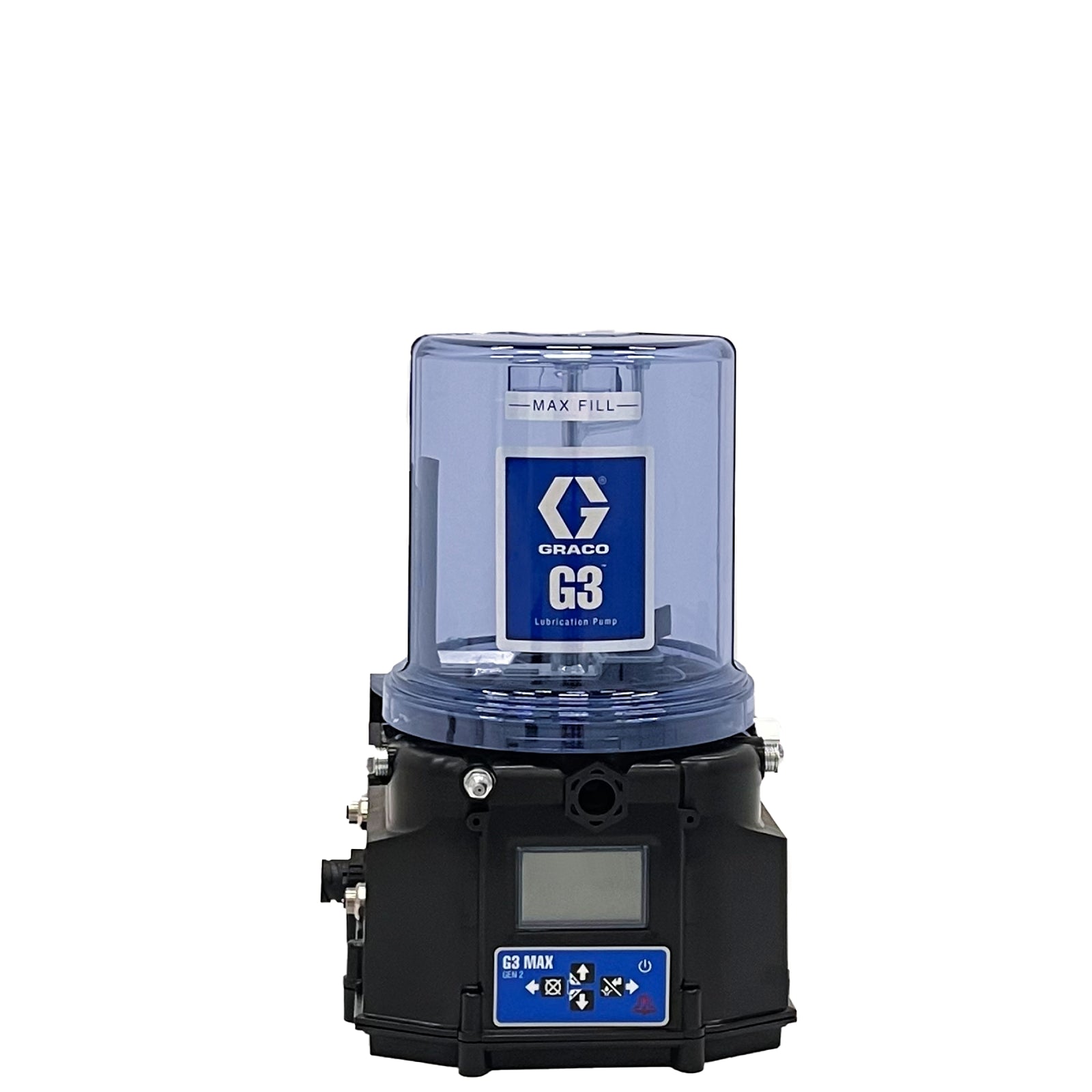

The GRACO G3 Max Pump is an electric piston pump designed for automatic lubrication systems. It is constructed with robust materials suitable for industrial environments and is intended for dispensing oil or grease (up to NLGI #2) in off-road equipment and on-road vehicles. The pump ensures reliable, automated lubrication to reduce maintenance downtime and extend equipment life.

Key Features:

• Electric Piston Pump
• G3 Max, 8 Liter Reservoir (also available in 2, 4, 12, or 16 liter options)
• Industrial-grade materials, IP69K rated for dust and water resistance
• Adjustable pump output per element per minute: 0.12 in³, 0.18 in³, 0.25 in³ (2 cm³, 3 cm³, 4 cm³)
• Max Pressure: 5100 psi (352 bar); Maximum Working Pressure: 5000 psi (344.7 bar)
• Series Progressive, Single Line Parallel, Injector-Based Systems
• CE, ETL, IP69K, Conforms to UL 73, Certified to CSA 22.2 No. 68-09
• Easy-to-read LED display with nearly 180° viewing angle
• Monitoring of up to three independent zones
• Programmable machine count feature
• Alarm and warning signals for system shutdown
• Low level indication
• Password protected access to control
• Pre-lube capability
• Easy-to-use navigation keys
• Remote manual run capability

Applications:
Off-road equipment, on-road vehicles, and other machinery requiring reliable, automated lubrication

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure the pump is installed in a location protected from extreme environmental conditions, within specified temperature ranges (-13 to 158°F / -25 to 70°C).
• Connect to the correct power supply (12V DC, 24V DC, or 90-240V AC, depending on model).
• Use only compatible lubricants (oil or grease up to NLGI #2).
• Follow all safety instructions and wiring diagrams provided in the manual.
• Regularly check reservoir level and system status via the LED display and indicators.
