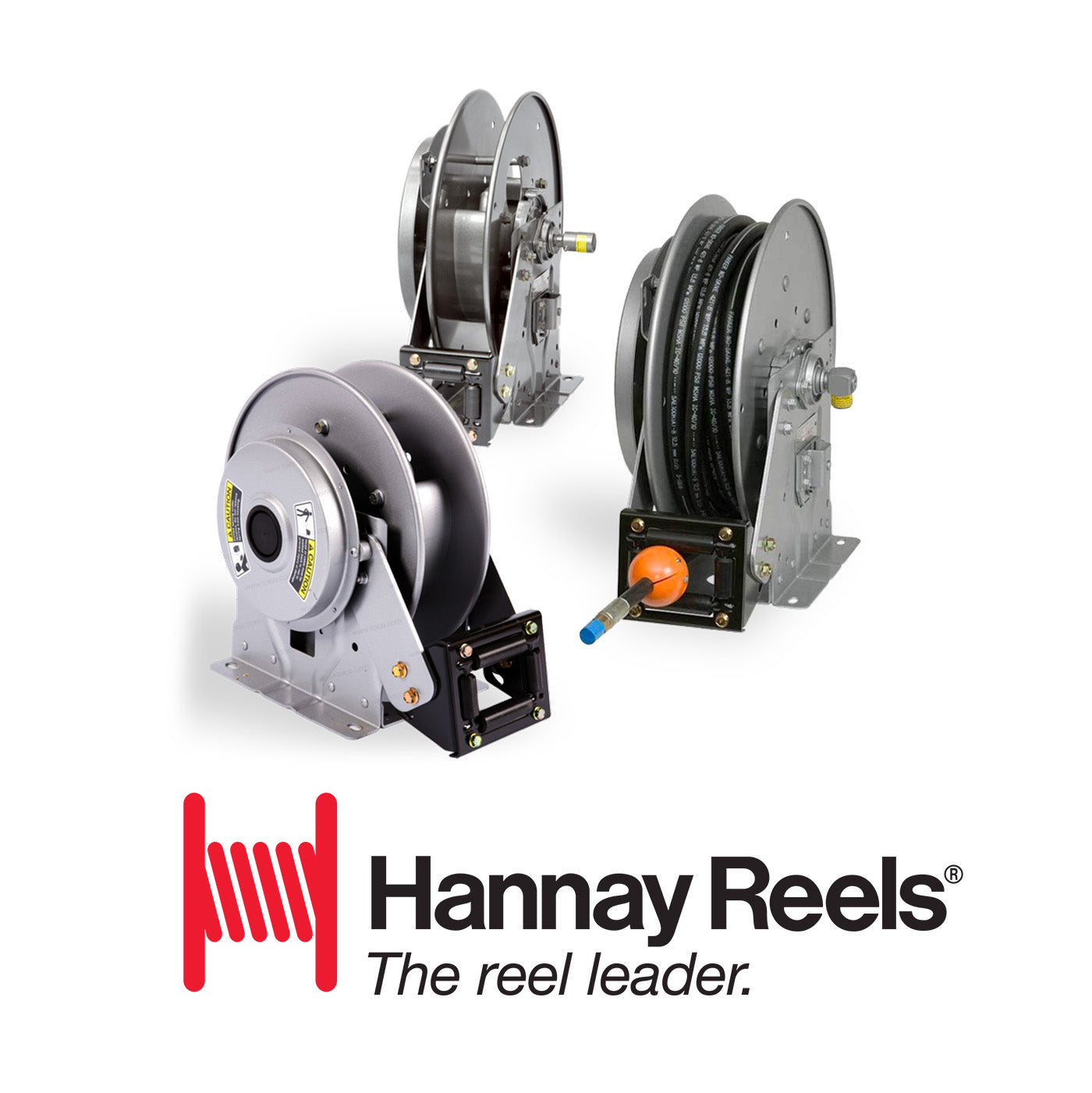

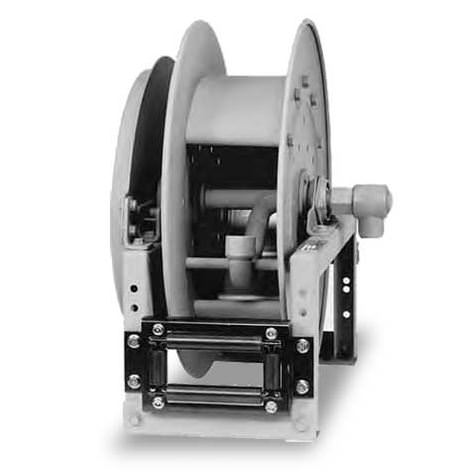

HANNAY REEL 816-25-26-10.5B (SPEC ROLLER POSITION); 1" BUNA BP SU SWL JT is a rugged, USA‑made Hannay hose reel engineered for daily commercial use. The selected configuration offers smooth payout and fast take‑up for long hose runs while protecting hose from kinks and abrasion.

Rewind & Drive: Electric Rewind (Clutch). 12‑Volt DC Motor + Electric Clutch delivers reliable torque with controlled speed. A cam‑lock drag brake and spring‑actuated pin lock help you secure hose at the desired length.

Construction: Welded steel frame and discs for durability, heavy‑duty hub and bearings for smooth rotation, and a chain‑and‑sprocket drive on powered versions. Industrial powder‑coat finish helps resist corrosion and wear.

Plumbing: Standard 90° ball‑bearing swivel inlet with FNPT threads and straight FNPT outlet for minimal flow restriction. Select swivel/shaft seals (e.g., Aflas gasket) and roller guide configuration to suit your media and routing.

Applications: Pressure washing & washdown, landscaping & pest control spray rigs, service trucks & utility vehicles, lubrication, water supply, and general industrial maintenance.

Included: Assembled reel with bearings and plumbing, 12‑V motor/controls as specified. Hose and roller guides sold separately unless noted.

SKU: 43-40. Verify capacity, dimensions, and connection sizes for your exact hose I.D., length, and pressure/temperature requirements before ordering.

• Welded steel frame, industrial powder‑coat
• Serviceable bearings & 90° ball‑bearing swivel
• Cam‑lock drag brake + pin lock
• FNPT inlet/outlet; roller guide options

Compatibility Reminder: Select reel size based on hose I.D., length, working pressure, temperature, media, and roller orientation for safe and efficient operation.
