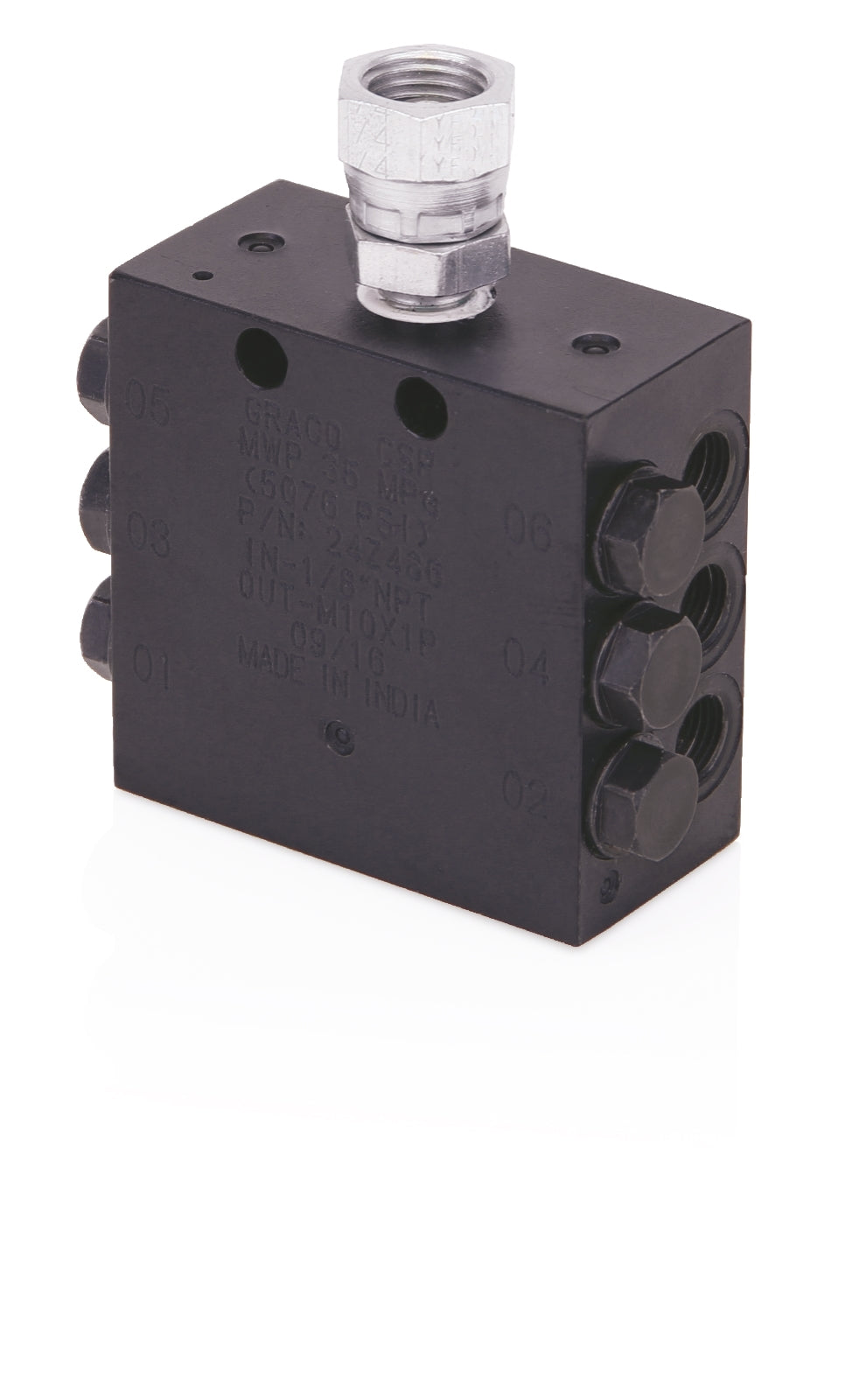

The GRACO 24Z485 CSP Divider Valve is a compact, robust component designed for precise lubrication distribution in automatic lubrication systems. It is constructed from durable materials suitable for industrial environments and is intended to reliably meter and deliver lubricant to multiple points within GRACO equipment.

Key Features:

• Divider Valve
• CSP (Compact Series Progressive), 1/8 inch BSPP, 22 Outlets
• Compatible with GRACO automatic lubrication systems and G-Series pumps
• Space-efficient design for tight installations
• 22 outlets for flexible lubrication distribution
• No indicator pin (simplifies installation and maintenance)
• Outlets can be combined to meet larger bearing needs
• Built-in durability for long-lasting performance
• Reliable metering and lubrication delivery
• Easy to maintain and service

Applications:
Used in automatic lubrication systems for industrial machinery, mining, agriculture, and other sectors requiring reliable, multi-point lubrication.

Installation Notes:

• Always use genuine GRACO parts to ensure system reliability, compatibility, and warranty support.
• Use only GRACO outlet fittings for your applications
• Always connect fittings to GRACO designed studs to ensure secure connections
• Follow torque specifications for fittings (e.g., 12–14 ft.-lbs for divider block outlet fittings)
• Consult the equipment manual for detailed installation and maintenance procedures
• Regularly inspect and maintain the valve to ensure optimal performance
