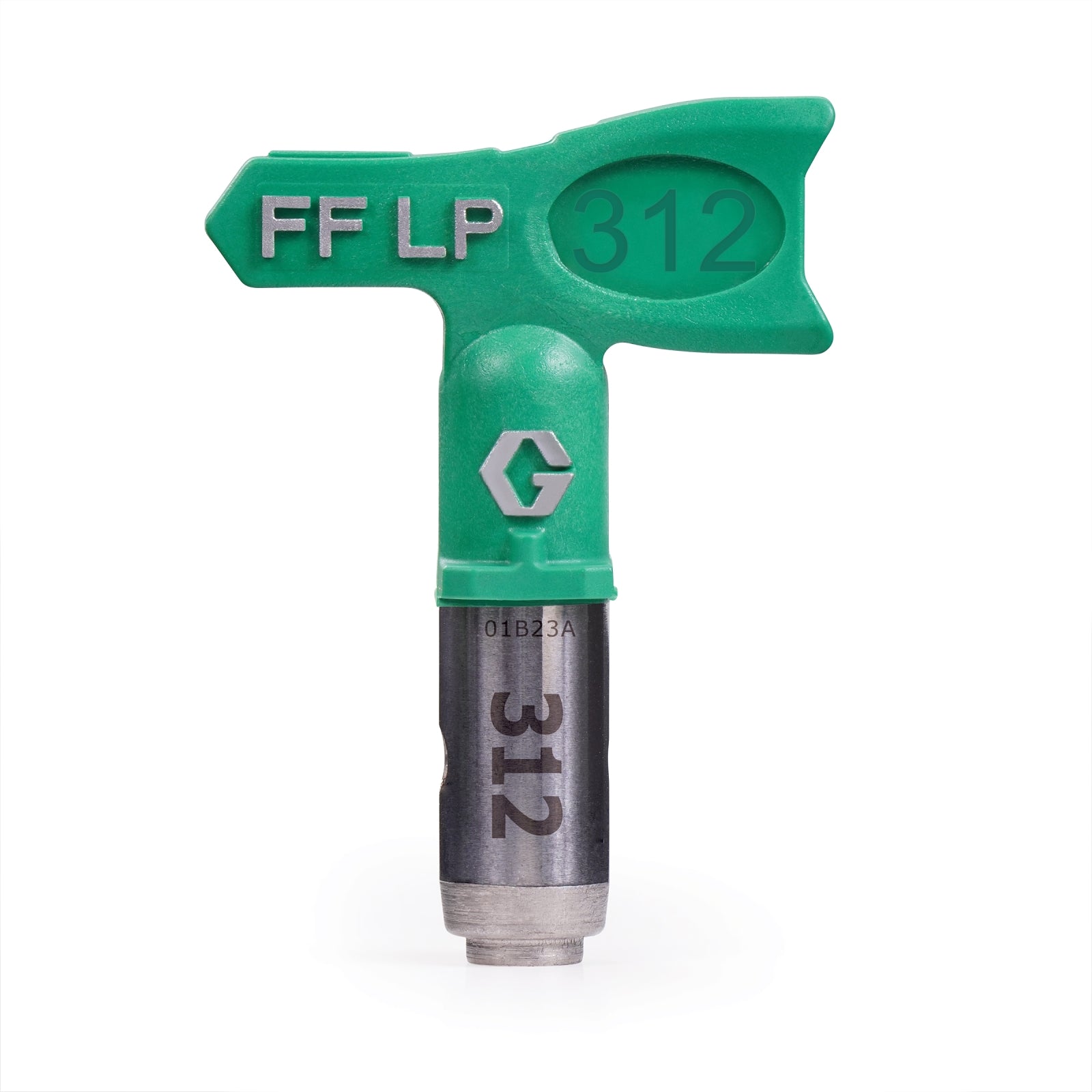

The GRACO FFLP312 is a spray tip designed for fine finish applications, constructed from tungsten carbide. It is intended for use with airless sprayers to apply a variety of finishing materials such as primer, stains, varnish, water-based paint, enamel, latex, and solventborne paints. Its main function is to deliver a high-quality, consistent finish at lower pressures with reduced overspray.

Key Features:

• Spray Tip
• RAC X, 312 (0.012 inch orifice, 6 to 8 inch fan pattern)
• Tungsten Carbide
• Maximum 0.15 GPM (0.57 L/min)
• Maximum working pressure: 4050 psi (280 bar, 28000 kPa)
• RAC X HandTite Tip Guard; works with any airless sprayer
• Reverse-A-Clean (RAC) technology for easy clog clearing
• SmartTip Technology for superior atomization and finish at low pressure
• Pre-orifice design for finer atomization and soft edges
• Reduces overspray and prep/cleanup time
• Sprays at up to 50% lower pressure, doubling tip life
• Consistent blended finish quality with complete atomization

Applications:
Ideal for finishing applications requiring a smooth, high-quality finish on surfaces such as cabinets, doors, trim, and furniture. Suitable for use with primers, stains, varnishes, water-based paints, enamels, latex, and solventborne paints.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, compatibility, and longevity of your spray equipment.
• Ensure the sprayer is turned off and depressurized before installing or removing the tip
• Use the RAC X HandTite Tip Guard for secure fit and protection
• Reverse the SwitchTip to clear clogs easily
• Follow manufacturer’s guidelines for tip installation and maintenance
• Regularly inspect the tip for wear or clogging
• Clean the tip thoroughly after each use to prevent buildup
• Store the tip in a clean, dry place when not in use
