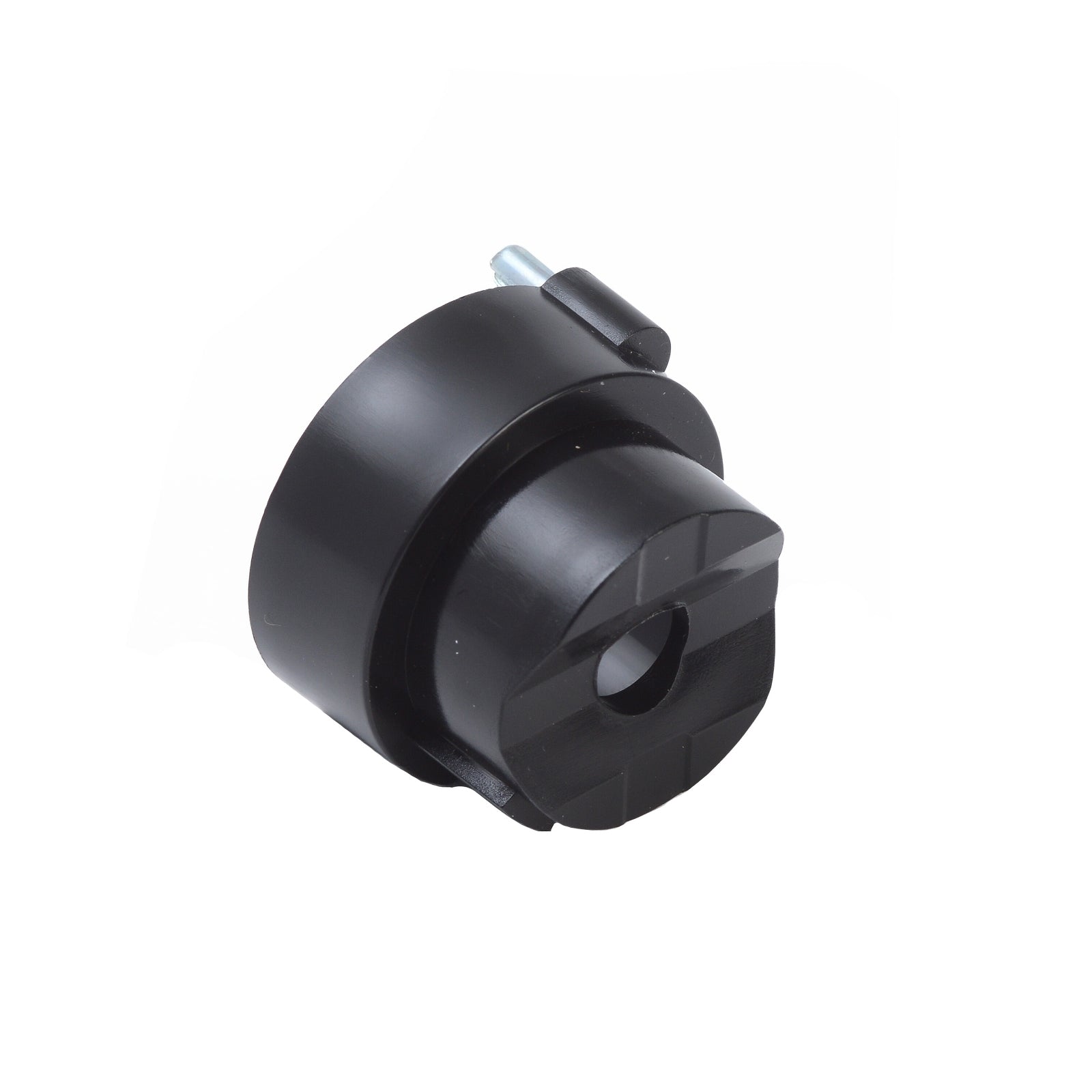

The GRACO 224807 Base Valve is a small, precision-engineered component designed for use in GRACO spray equipment. It is typically constructed from durable materials suitable for industrial environments, though the specific material is not specified. Its primary function is to serve as the base for connecting the drain or prime/bypass valve assembly within GRACO sprayers, ensuring proper flow control and system integrity.

Key Features:

• Base Valve
• 224807
• Compatible with GRACO 187625 handle, 235014 drain valve, and related assemblies; connects to GRACO 235014 prime/bypass valve; used with pin (111600) and other related parts
• Flat on one side for secure fit and alignment
• Mechanical detent stop for resisting rotation (as referenced in similar base valve applications)
• Compact and lightweight (approx. 0.015 lbs, dimensions: 1.15 x 1.05 x 1.15 in)
• Designed for reliable performance in spray equipment

Applications:
Used in GRACO spray equipment for controlling and directing fluid flow, particularly in drain and prime/bypass valve assemblies. Essential for maintenance and operation of GRACO airless sprayers and related systems.

Installation Notes:

• Using genuine GRACO parts ensures optimal performance, safety, and longevity of the equipment. Non-genuine parts may compromise system integrity and void warranties.
• Ensure the flat side of the base valve is properly aligned during installation for secure fit
• Use compatible GRACO handles, pins, and drain valves as specified
• Follow manufacturer guidelines for torque and assembly to prevent leaks or malfunctions
• Regularly inspect for wear and replace as needed to maintain system reliability
