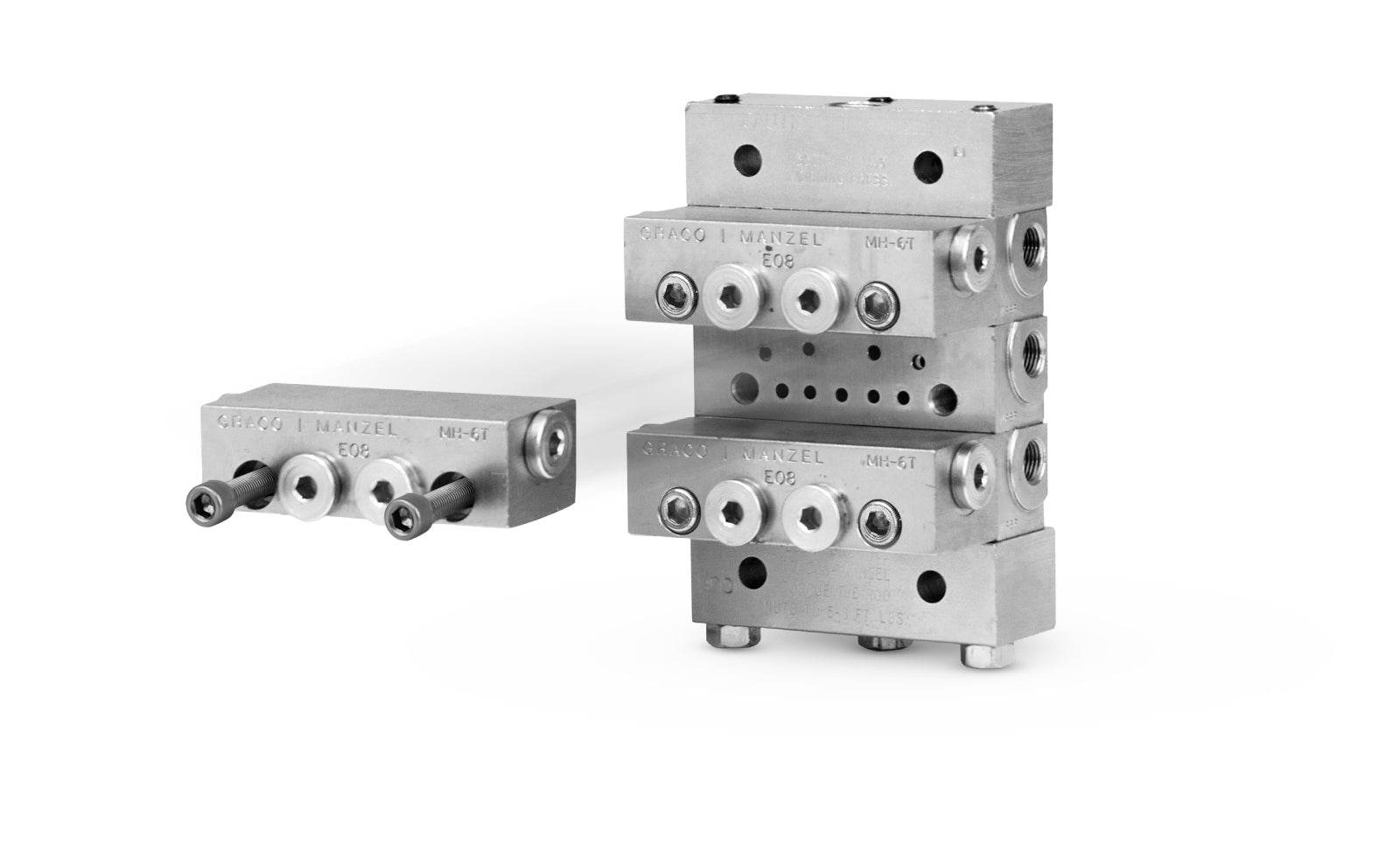

The GRACO 24F597 is a modular, series-progressive divider valve base plate assembly designed for use with oil or grease in demanding lubrication systems. It is constructed for high-pressure applications and is intended to provide highly accurate lube delivery within GRACO equipment, particularly for in-plant machinery, gas engines, compressors, and similar equipment.

Key Features:

• Modular, series-progressive divider valve base plate assembly
• 4 Section Base Plate Assemblies (MHH Series)
• Up to 7,500 PSI (for MHH Series)
• Petroleum or synthetic oils, grease
• Quick change valve sections can be removed from the base assembly without disturbing lube lines—minimizing labor cost and maximizing machine uptime
• Can be accessorized with magnetic and electronic proximity switch cycle indicators for positive assurance of successful lube events
• Alternate outlet on face of valves can be fitted with optional performance indicators for troubleshooting
• Built-in outlet check valves ensure accurate lube delivery every time
• Modular, stackable sub-plate design for flexible configuration

Applications:
Used for positive oil lubrication in gas engines, compressors, and similar equipment; suitable for in-plant machinery requiring high-pressure, accurate lubrication delivery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure proper alignment and secure mounting of the base plate assembly
• Connect lube lines according to equipment manual specifications
• Accessorize with cycle indicators and performance indicators as needed for monitoring and troubleshooting
• Regularly inspect and maintain valve sections for optimal operation
• Follow manufacturer’s guidelines for installation and maintenance
• Use only compatible lubricants as specified
• Periodically check for leaks and proper function of check valves and indicators
