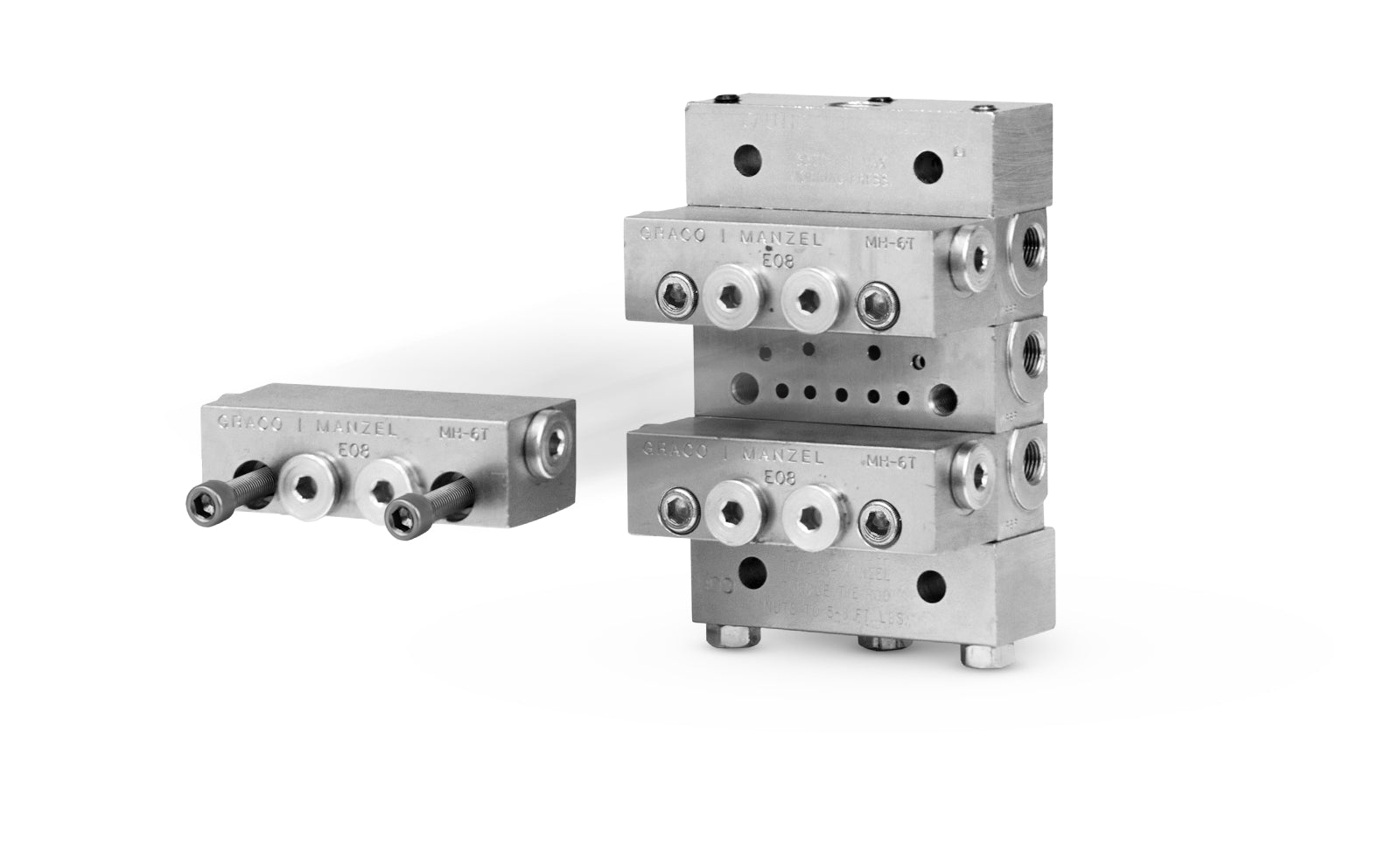

The GRACO 24F598 is a modular, series-progressive divider valve base plate assembly designed for positive oil lubrication systems. It is constructed with a steel body (corrosion protected) and steel piston (honed fit), intended for use with petroleum or synthetic oils in demanding high-pressure oil applications such as gas engines, compressors, and similar equipment.

Key Features:

• Series-progressive divider valve
• 5 Section Base Plate Assembly
• Steel body (corrosion protected), steel piston (honed fit)
• Up to 7,500 psi (for petroleum or synthetic oil)
• Petroleum or synthetic oils only
• Modular, stackable sub-plate design for easy expansion and maintenance
• Quick-change valve sections can be removed without disturbing lube lines, minimizing downtime
• Highly accurate lube delivery for demanding applications
• Robust construction for reliability and long service life
• Maximum operating temperature: 350°F (163°C) with fluoroelastomer O-rings
• Maximum cycle rate: 200 cpm

Applications:
Used for positive oil lubrication in gas engines, compressors, and similar industrial equipment requiring precise and reliable lubrication under high pressure.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all connections are properly torqued (e.g., piston enclosure plug: 12–15 ft-lbs)
• Use only compatible lubricants (petroleum or synthetic oils)
• Follow manufacturer guidelines for assembly and maintenance to prevent leaks and ensure long-term reliability
• Quick-change valve sections allow for easy maintenance without disconnecting lube lines
