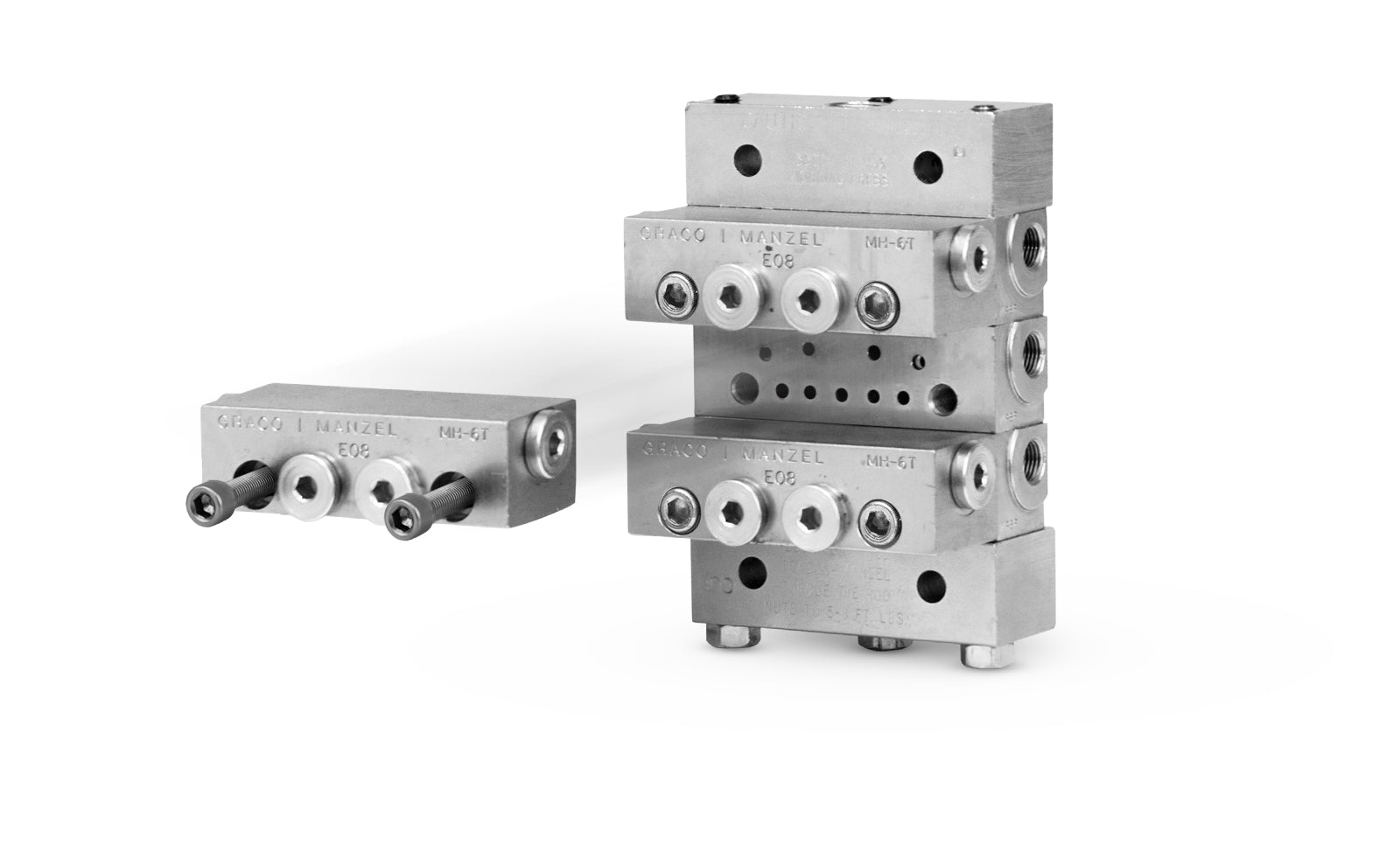

The GRACO 24F599 is a modular, series-progressive divider valve designed for highly accurate lubrication delivery in demanding high-pressure oil and grease applications. It is constructed for use with petroleum or synthetic oils and is intended for integration into GRACO lubrication systems for gas engines, compressors, and similar equipment. The base plate assembly features NPSF threads for secure installation.

Key Features:

• Series-progressive divider valve
• MHH-6S (6 Section Base Plate Assemblies)
• Up to 7,500 psi (fluoroelastomer seals)
• Petroleum or synthetic oils; direct replacement for MHP valves; NPSF thread standard
• Highly accurate lube delivery
• Modular, stackable design for easy expansion
• Quick-change valve sections for maintenance
• Suitable for high-pressure environments
• Reliable performance in demanding applications

Applications:
Used for positive oil lubrication in gas engines, compressors, and similar industrial equipment requiring precise, high-pressure lubrication delivery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all connections are secure and use appropriate thread sealant for NPSF threads
• Follow manufacturer guidelines for torque specifications
• Inspect seals and O-rings before installation
• Verify system pressure and flow requirements before commissioning
• Regularly check for leaks and proper valve operation
• Periodically inspect and clean valve sections
• Replace seals and O-rings as needed
• Monitor performance indicators (if equipped) for early detection of issues
• Use only recommended lubricants and replacement parts
