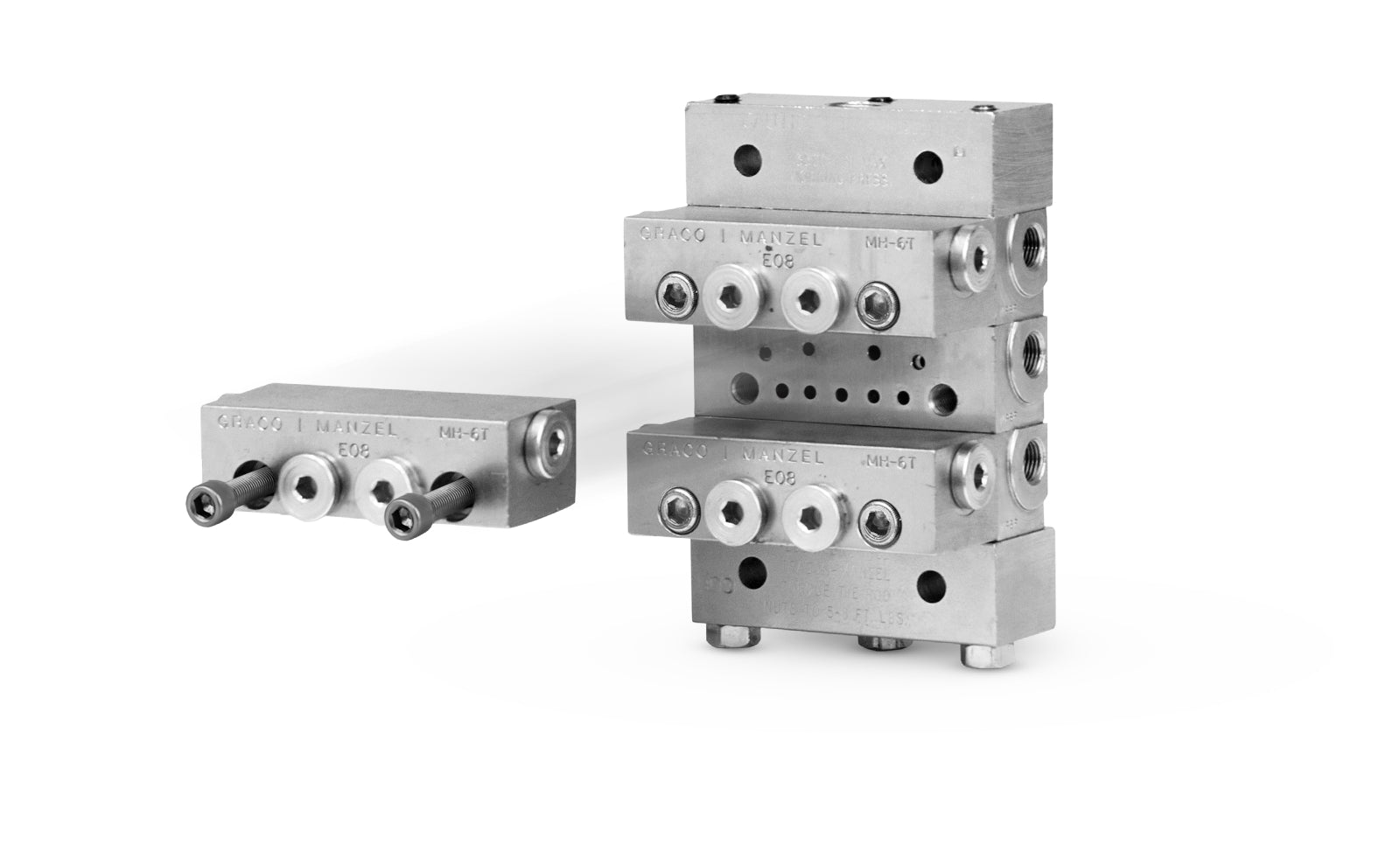

The GRACO 24F601 is a modular, stackable divider valve base plate assembly designed for positive oil lubrication in demanding applications such as gas engines, compressors, and similar equipment. It is constructed with a corrosion-protected steel body and honed-fit steel piston, intended for use with petroleum or synthetic oils.

Key Features:

• Modular, Series-Progressive Divider Valve
• 8 Section Base Plate Assemblies
• Steel body (corrosion protected), steel piston (honed fit)
• Up to 7,500 psi for petroleum or synthetic oil
• Petroleum or synthetic oil only
• Modular, stackable sub-plate design for easy expansion and maintenance
• Highly accurate lube delivery for demanding high-pressure oil applications
• Direct replacement for MHP valves
• Positive oil lubrication for gas engines, compressors, and similar equipment
• Maximum operating temperature: 350°F (163°C) with fluoroelastomer O-rings
• Maximum cycle rate: 200 cpm
• Net weight: 13.0 lb (5.9 kg)

Applications:
Used for positive oil lubrication in gas engines, compressors, and similar industrial equipment requiring precise, high-pressure oil delivery.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all connections are properly torqued (e.g., piston enclosure plug to 12-15 ft-lbs)
• Verify compatibility with petroleum or synthetic oil only
• Follow manufacturer guidelines for modular assembly and stacking
• Regularly inspect O-rings and seals for wear and replace as needed
