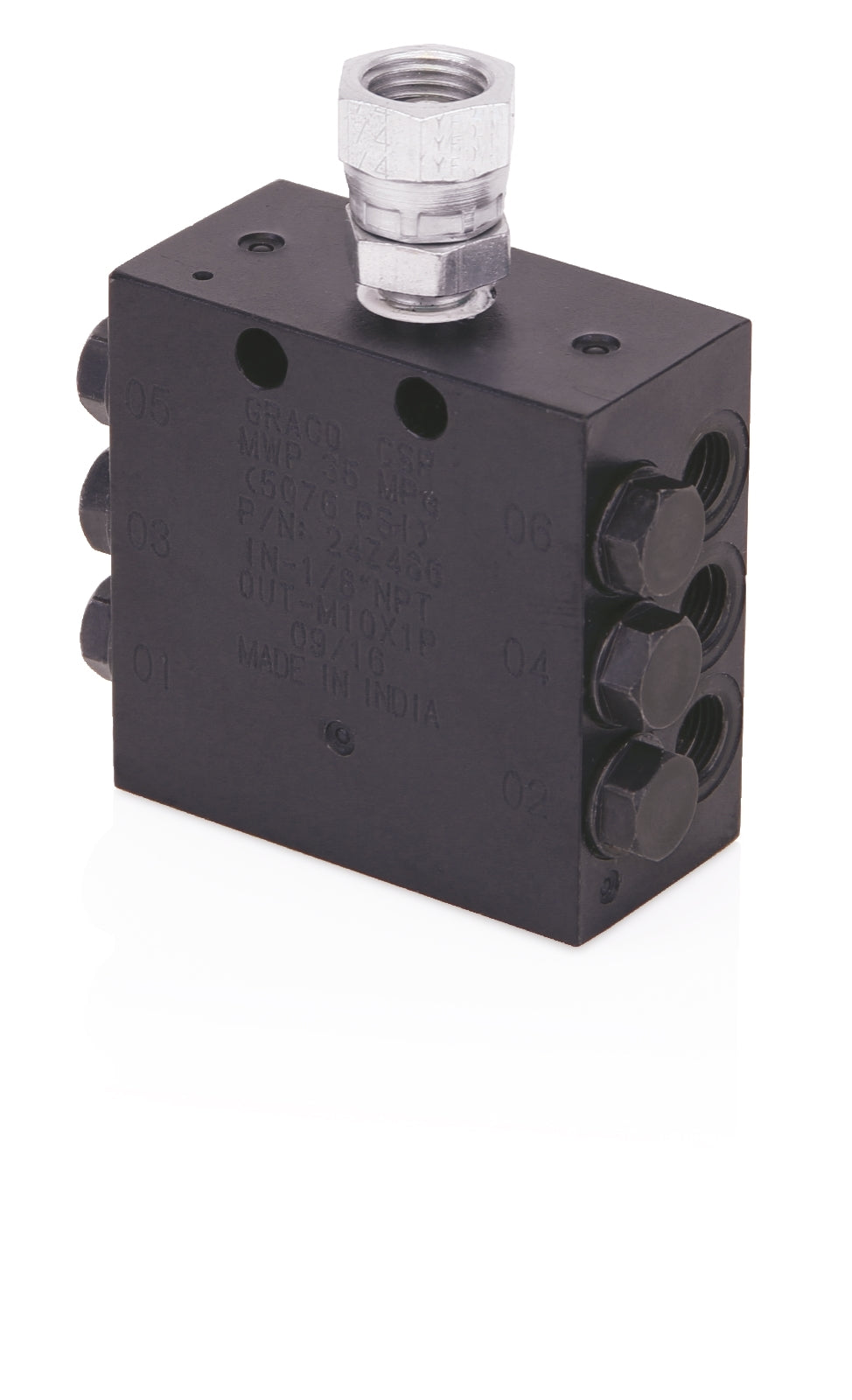

The GRACO 24Z495 is a divider valve designed for precise lubrication distribution in automatic lubrication systems. Constructed from carbon steel, it features a 1/8 inch BSPP inlet and six outlets, with a built-in cycle indicator. It is intended for use with oil or grease in on-road and off-road vehicle applications.

Key Features:

• Divider Valve
• CSP Series, 1/8 inch BSPP inlet, 6 outlets
• Carbon Steel
• Maximum working pressure: 5076 psi (350 bar, 35000 kPa); Minimum working pressure: 217.5 psi (15 bar, 1500 kPa)
• Oil, Grease (up to NLGI Grade #2)
• Space-efficient design with 6 outlets
• Cycle indicator included for monitoring
• Outlets can be combined for larger bearing needs
• Built-in durability for demanding environments
• Reliable performance in on-road and off-road equipment

Applications:
On-road vehicles, off-road equipment requiring precise lubrication distribution

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Torque outlet fittings to 10–12 ft.-lbs (13.56–16.27 N•m) for combination kits; 12–14 ft.-lbs (16.27–18.98 N•m) for divider block outlet fittings
• Always use GRACO outlet fittings for your applications
• Connect fittings to GRACO-designed stud for secure connections
• Use fluids and solvents compatible with equipment wetted parts
