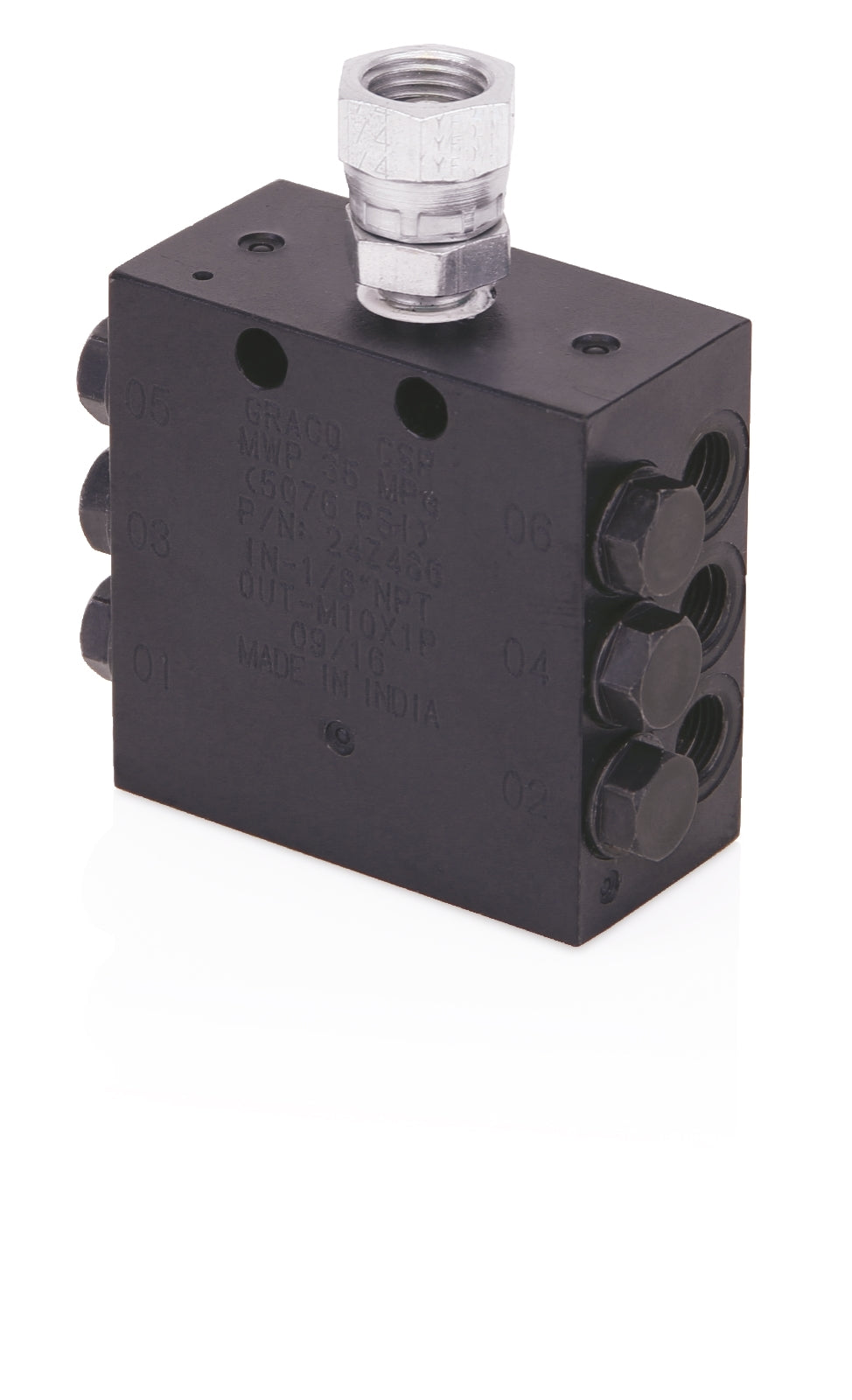

The GRACO 24Z500 is a divider valve designed for precise distribution of oil or grease in lubrication systems. Constructed from carbon steel with zinc iron plating for durability, it is intended for use in both on-road and off-road vehicle and equipment lubrication systems.

Key Features:

• Divider Valve
• CSP Series, 1/8 inch BSPP inlet, 16 outlets
• Carbon steel with zinc iron plating
• Minimum: 217.5 psi (15 bar), Maximum: 5076 psi (350 bar)
• Oil, grease (up to NLGI #2)
• Space-efficient design with 16 outlets
• Cycle indicator included
• Outlets can be combined for larger bearing needs
• Built-in durability for harsh environments
• Reliable performance in high-pressure applications

Applications:
On-road vehicles, off-road equipment, and industrial machinery requiring precise lubrication distribution.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance.
• Torque outlet fittings to 10–12 ft.-lbs (13.56–16.27 N•m) for standard connections
• Use only GRACO outlet fittings for best results
• Always connect fittings to GRACO-designed studs for secure connections
• For combination kits, refer to specific instructions for outlet numbers 1 and 2
• For nylon tube, use fittings with outer diameter of 0.25 +/- 0.005 in
