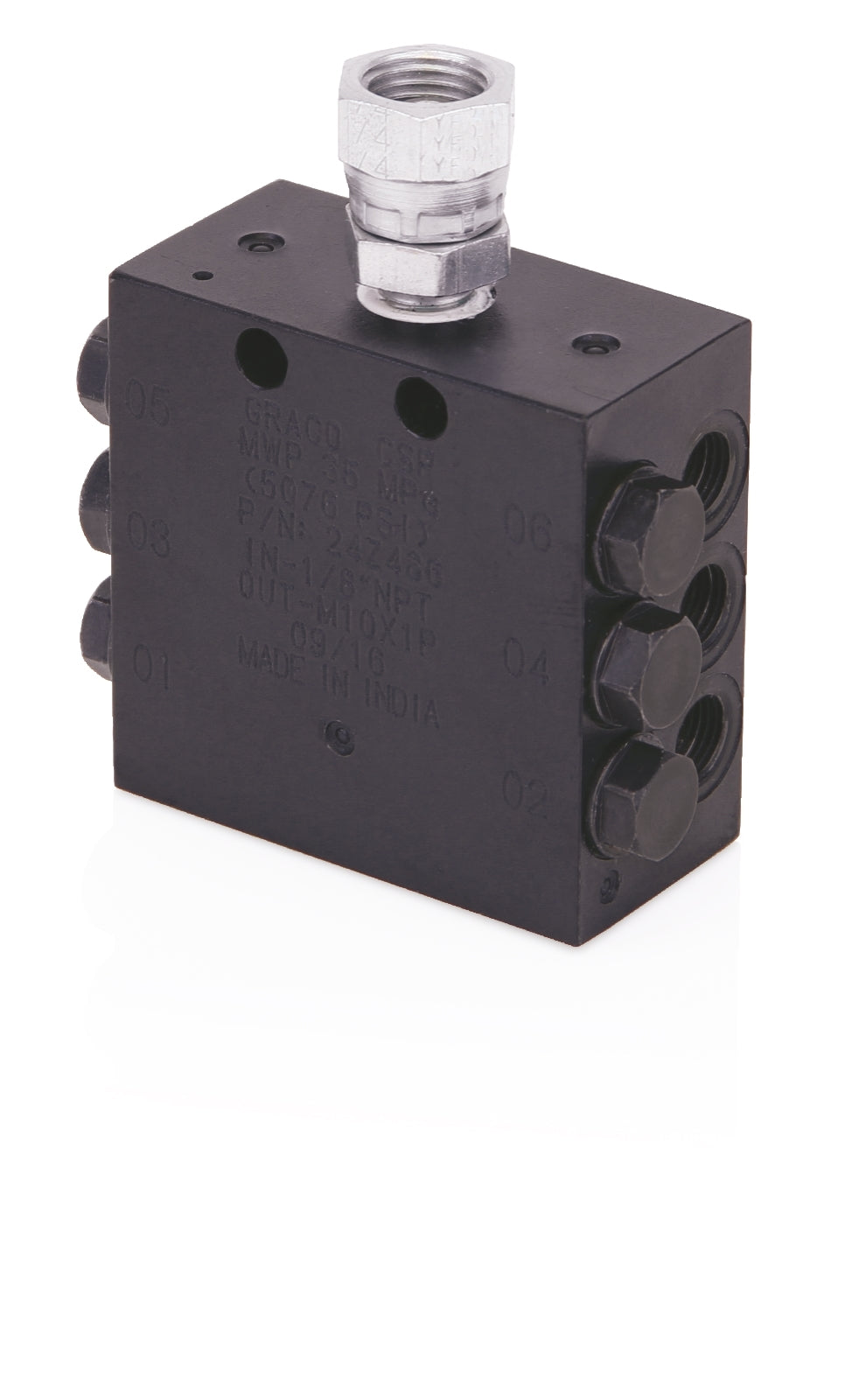

The GRACO 24Z506 is a divider valve constructed from carbon steel, designed to distribute lubricant (oil or grease) to multiple points in lubrication systems. It features a 1/8 inch NPT inlet, 10 outlets, and includes a cycle indicator for monitoring operation. This valve is intended for use in on-road and off-road vehicle lubrication systems, as well as industrial equipment requiring reliable, multi-point lubrication.

Key Features:

• Divider Valve
• CSP Series, 1/8 inch NPT inlet, 10 outlets
• Carbon Steel
• Minimum: 15 bar (217.5 psi), Maximum: 350 bar (5076 psi)
• Oil, Grease (NLGI Grade #2)
• Space-efficient design with 10 outlets
• Cycle indicator included for operation monitoring
• Outlets can be combined to meet larger bearing needs
• Built-in durability for demanding environments
• Reliable performance in high-pressure applications

Applications:
On-road vehicles, off-road equipment, and industrial machinery requiring multi-point lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance within GRACO lubrication systems.
• Always use GRACO outlet fittings for your applications
• Torque outlet fittings to 10–12 ft.-lbs (13.56–16.27 N•m) for combination CSP valve outlet numbers 1 and 2
• Torque standard outlet fittings to 12–14 ft.-lbs (16.27–18.97 N•m)
• Connect fittings to GRACO designed stud to ensure secure connections
• Use fluids and solvents compatible with equipment wetted parts
