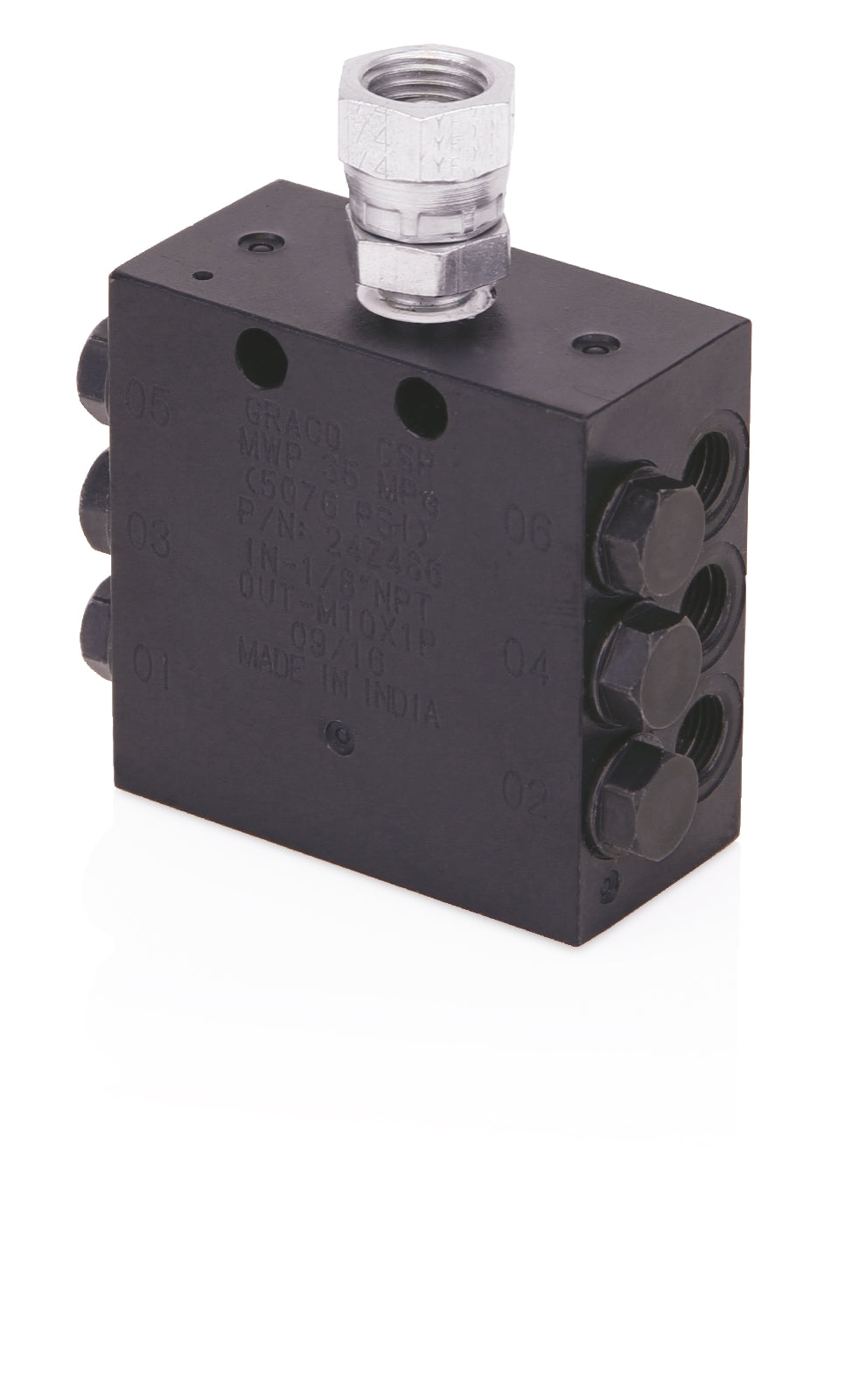

The GRACO 24Z507 is a divider valve designed for the progressive delivery of oil or grease in lubrication systems. Constructed from carbon steel, it is engineered for use in both on-road vehicles and off-road equipment, ensuring reliable and efficient lubrication distribution.

Key Features:

• Divider Valve
• Trabon CSP, 1/8 inch NPT inlet, 12 outlets
• Carbon Steel
• Maximum working pressure: 5076 psi (350 bar, 35000 kPa); Minimum working pressure: 217.5 psi (15 bar, 1500 kPa)
• Oil, Grease (Maximum NLGI Grade #2)
• Space-efficient design
• Cycle indicator included
• Reliable for high-pressure applications
• Suitable for demanding environments

Applications:
On-road vehicles, off-road equipment, and industrial lubrication systems requiring precise and reliable distribution of oil or grease.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Always use GRACO outlet fittings for your applications
• Connect fittings to GRACO designed studs to ensure secure connections
• Torque outlet fittings to 12–14 ft.-lbs (16.27–18.98 N•m) for standard connections
• For combination CSP valve outlet numbers 1 and 2, torque to 10–12 ft.-lbs (13.56–16.27 N•m)
• Refer to the manual for specific installation and maintenance procedures
