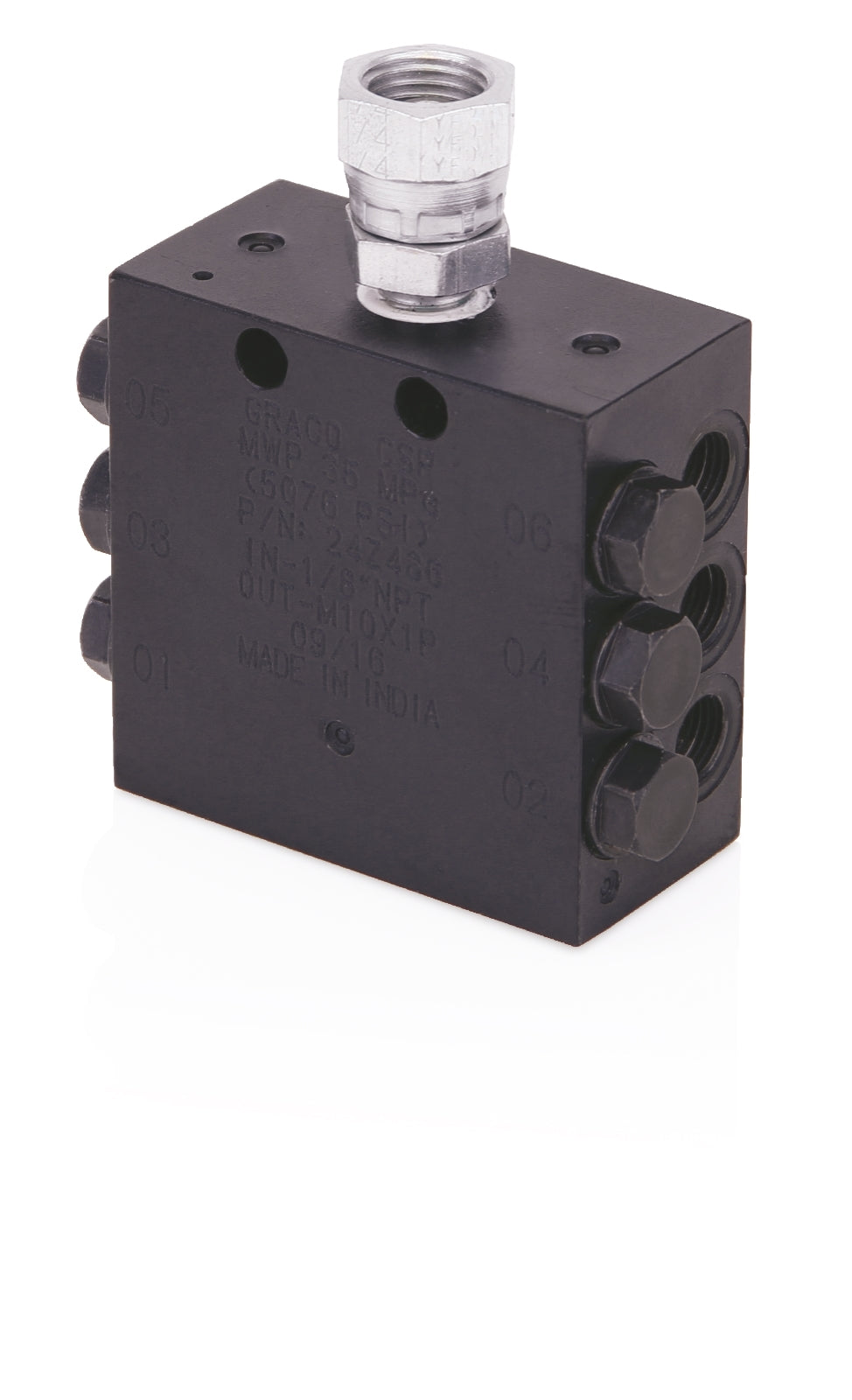

The GRACO 24Z509 CSP Divider Valve is a compact, robust component designed to distribute lubricant from a single inlet to multiple outlets. Constructed from carbon steel, it is engineered for reliable performance in demanding environments, specifically for use with oil and grease in on-road and off-road vehicle lubrication systems.

Key Features:

• Divider Valve
• CSP, 1/8 inch NPT inlet, 16 outlets
• Carbon steel
• Maximum working pressure: 5076 psi (350 bar, 35000 kPa); Minimum working pressure: 217.5 psi (15 bar, 1500 kPa)
• Oil, grease (maximum NLGI Grade #2)
• Space-efficient design with 16 outlets
• Cycle indicator included for monitoring
• Built-in durability for harsh environments
• Outlets can be combined to meet larger bearing needs

Applications:
On-road vehicles, off-road equipment, and other machinery requiring multi-point lubrication with oil or grease.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance.
• Always use GRACO outlet fittings for your applications
• Torque outlet fittings to 10–12 ft.-lbs (13.56–16.27 N·m) for divider block outlet combination kits
• Torque to 12–14 ft.-lbs (16.27–18.98 N·m) for divider block outlet fittings
• Connect fittings to GRACO-designed studs to ensure secure connections
• Use fluids and solvents compatible with equipment wetted parts
