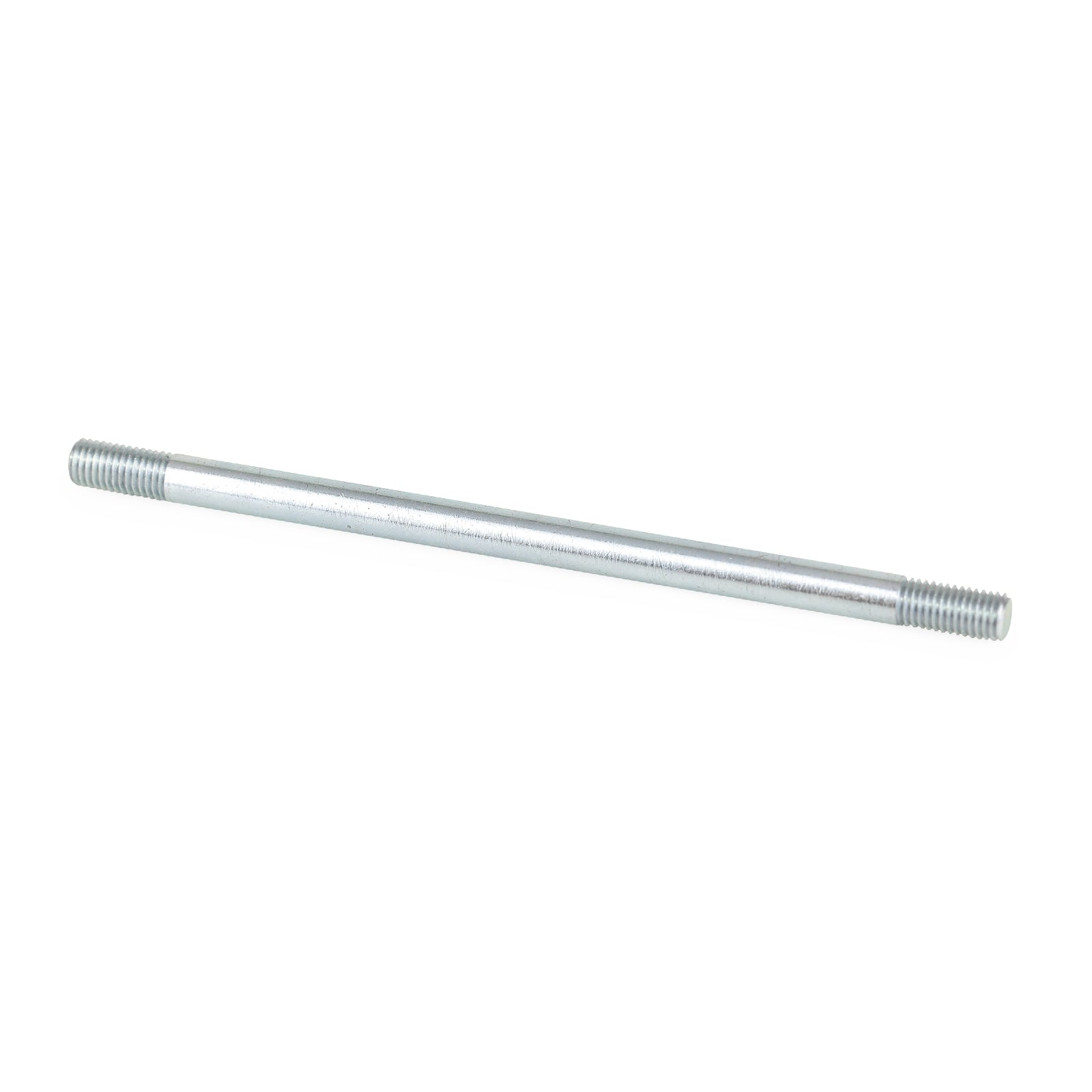

The Trabon® MJ Divider Valve is a plated steel divider block designed for use in automatic lubrication systems. It is intended to distribute precise amounts of oil or grease to multiple lubrication points in on-road vehicles, off-road equipment, and in-plant machinery. The 6-section tie rod configuration allows for efficient, progressive lubrication across several outlets from a single manifold.

Key Features:

• Divider Valve
• 6 Section Tie Rod (MJ Series)
• Plated Steel
• Maximum working pressure: 2,000 psi (137.9 bar, 13.8 MPa)
• Oil or grease up to NLGI Grade 1
• Progressive, constant discharge pattern
• Reliable operation under high pressure
• Easy to assemble and maintain
• Factory-tested and ready to install
• Space-efficient design for multiple lubrication points

Applications:
On-road vehicles, off-road equipment, in-plant machinery, and other applications requiring precise, multi-point lubrication.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Ensure all tie rod nuts are torqued to 12 ft. lbs (16.3 N.m)
• Tighten enclosure plugs to 11-13 ft. lbs (14.9-17.6 N.m)
• Tighten outlet port plugs to 6-7 ft. lbs (8.1-9.5 N.m)
• Install in accordance with GRACO guidelines for best results
• Regularly inspect for leaks and proper function
