The Trabon® MSP Divider Valve is a modular lubrication divider valve designed for use in automatic lubrication systems. It is typically constructed from corrosion-protected steel or optional stainless steel, and is intended to precisely distribute oil or grease to multiple lubrication points in GRACO equipment, vehicles, and industrial machinery.

Key Features:

• Divider Valve

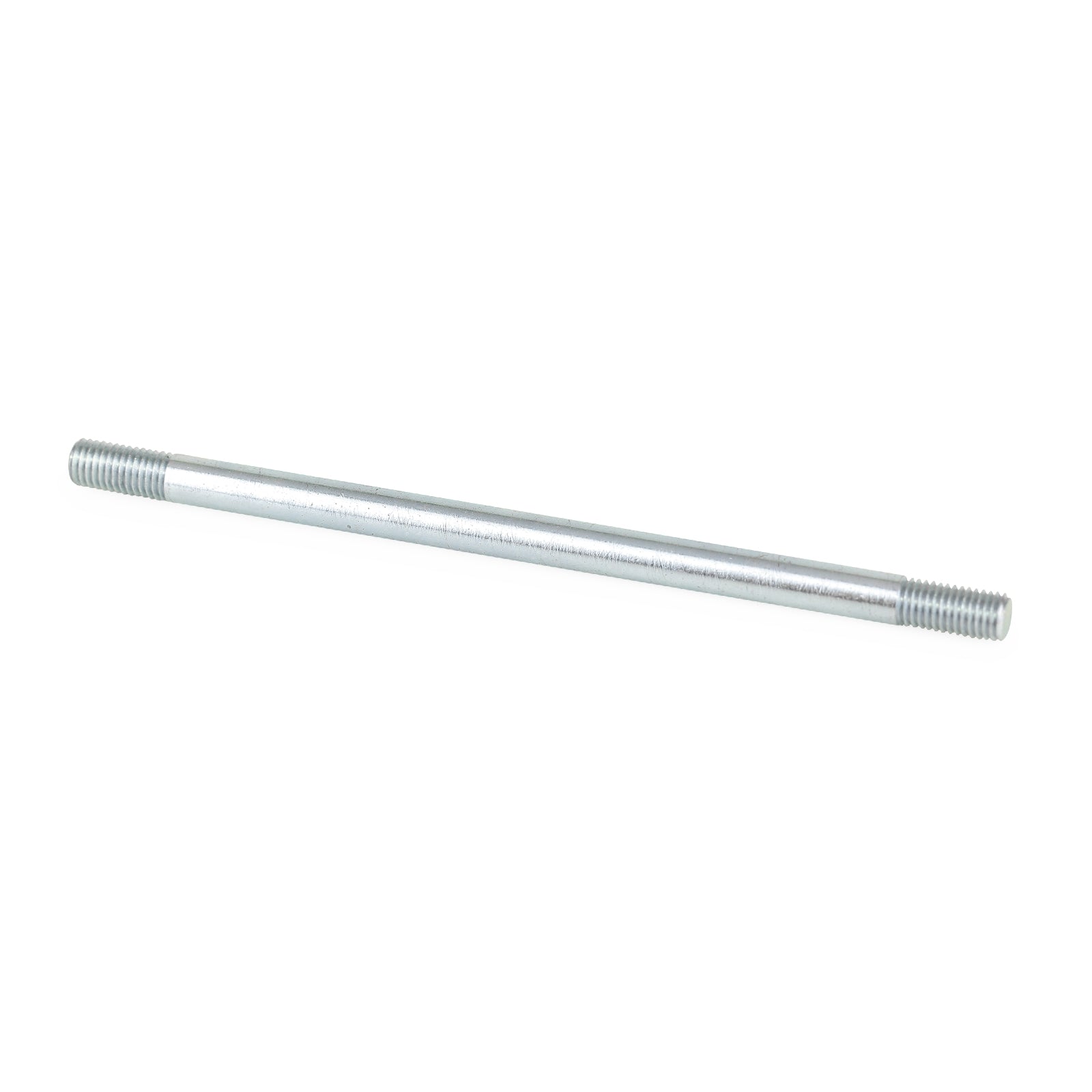

• MSP Series, 4 Section Tie Rod (3 working sections required for assembly)
• Corrosion-protected steel or optional stainless steel
• Maximum working pressure: 3500 psi (241 bar)
• Oil and grease up to NLGI #2
• Modular, stackable design for flexibility and easy expansion
• Fluoroelastomer (FKM) o-ring seals for leak prevention
• Built-in check valves to prevent lube re-entry and keep lines full
• Individual valve outputs vary by a maximum ratio of 16:1
• Can lubricate up to 22 points per valve assembly (with appropriate configuration)
• Choice of SAE, NPSF, or BSPP inlet/outlet connections
• Simple to install and operate
• Reliable, positive feedback for precise monitoring

Applications:
On-road vehicles, off-road equipment, in-plant machinery, and other industrial applications requiring precise, positive lubrication to multiple points.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Assemble with a minimum of 3 working piston sections per valve assembly (bypass sections require at least 3 working sections in addition)
• Use field-installable crossport or singling plates to increase flow to a single point or accommodate an odd number of lube points
• Ensure proper selection of inlet/outlet connections (SAE, NPSF, or BSPP)
• Regularly inspect o-ring seals and check valves for wear or leaks
• Follow manufacturer guidelines for pressure and temperature limits
