The Trabon® MSP Divider Valve is a modular, tie rod-mounted divider valve designed for use in automatic lubrication systems. It is constructed from corrosion-protected steel (with optional stainless steel available) and is engineered to precisely distribute measured amounts of lubricant (oil or grease up to NLGI #2) to multiple lubrication points within GRACO equipment.

Key Features:

• Modular Divider Valve

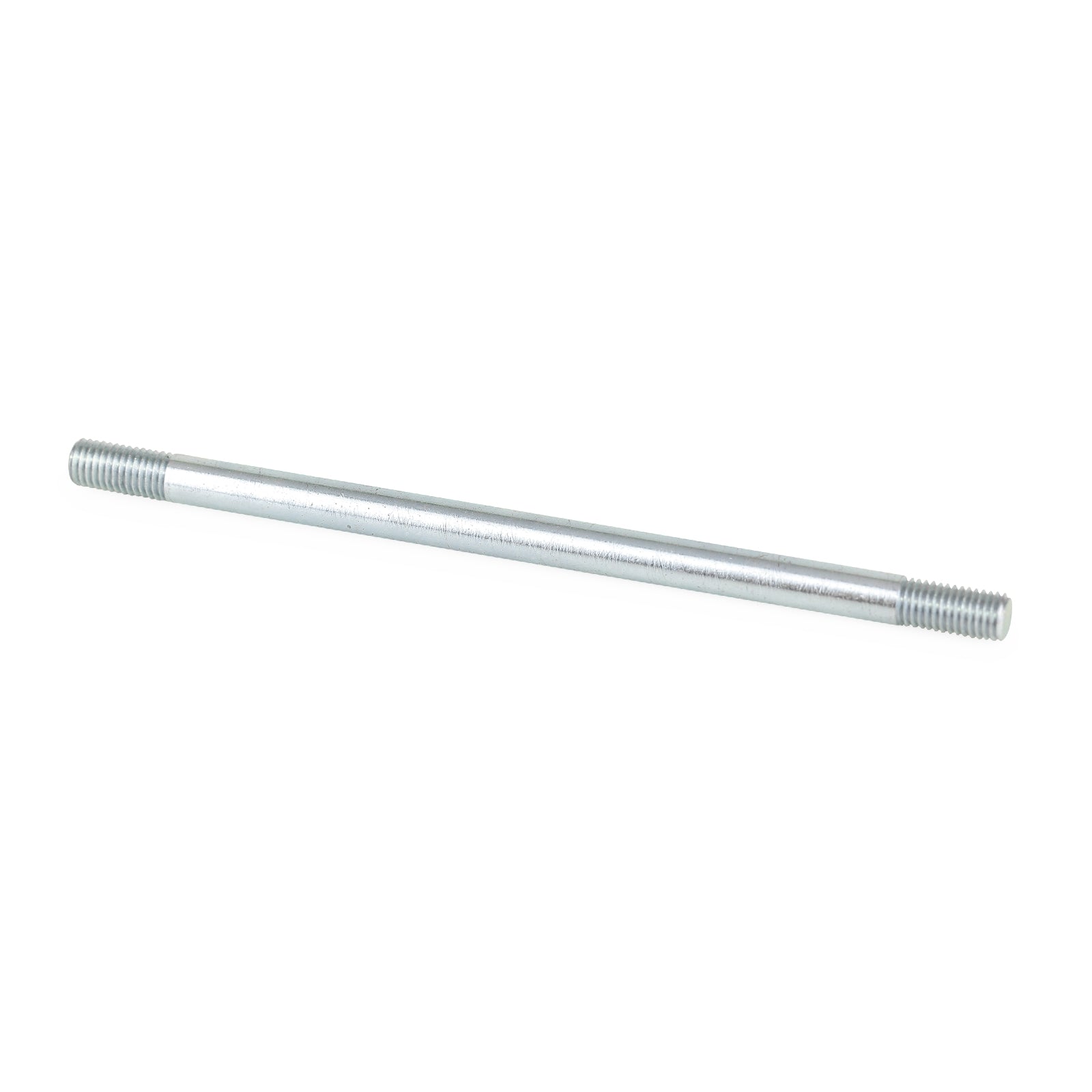

• 7 Section Tie Rod
• Corrosion-protected steel (stainless steel optional)
• Up to 3,500 psi (241 bar)
• Oil or grease up to NLGI #2; compatible with SAE, NPSF, or BSPP inlet/outlet connections
• Modular, stackable design for flexibility and easy installation
• Fluoroelastomer (FKM) o-ring seals for leak prevention and reduced maintenance
• Built-in check valves prevent lube re-entry and help keep lines full
• Individual valve outputs vary by a maximum ratio of 16:1
• Can lubricate up to 22 points per valve assembly (depending on configuration)
• Field-installable crossport or singling plates for increased flow or odd-numbered lube points
• Bypass section available for future expansion or to eliminate a piston section

Applications:
Used in automatic lubrication systems to accurately distribute lubricant to multiple points in industrial, mining, agricultural, and heavy equipment applications.

Installation Notes:

• Using genuine GRACO parts ensures compatibility, reliability, and optimal performance of the lubrication system.
• Assemble with a minimum of 3 working sections plus any bypass sections
• Ensure proper torque on tie rod nuts (refer to specific model documentation for exact values)
• Use appropriate inlet/outlet connections (SAE, NPSF, or BSPP)
• Check for correct o-ring installation and sealing to prevent leaks
• Regularly inspect for wear and proper function to maintain system reliability
